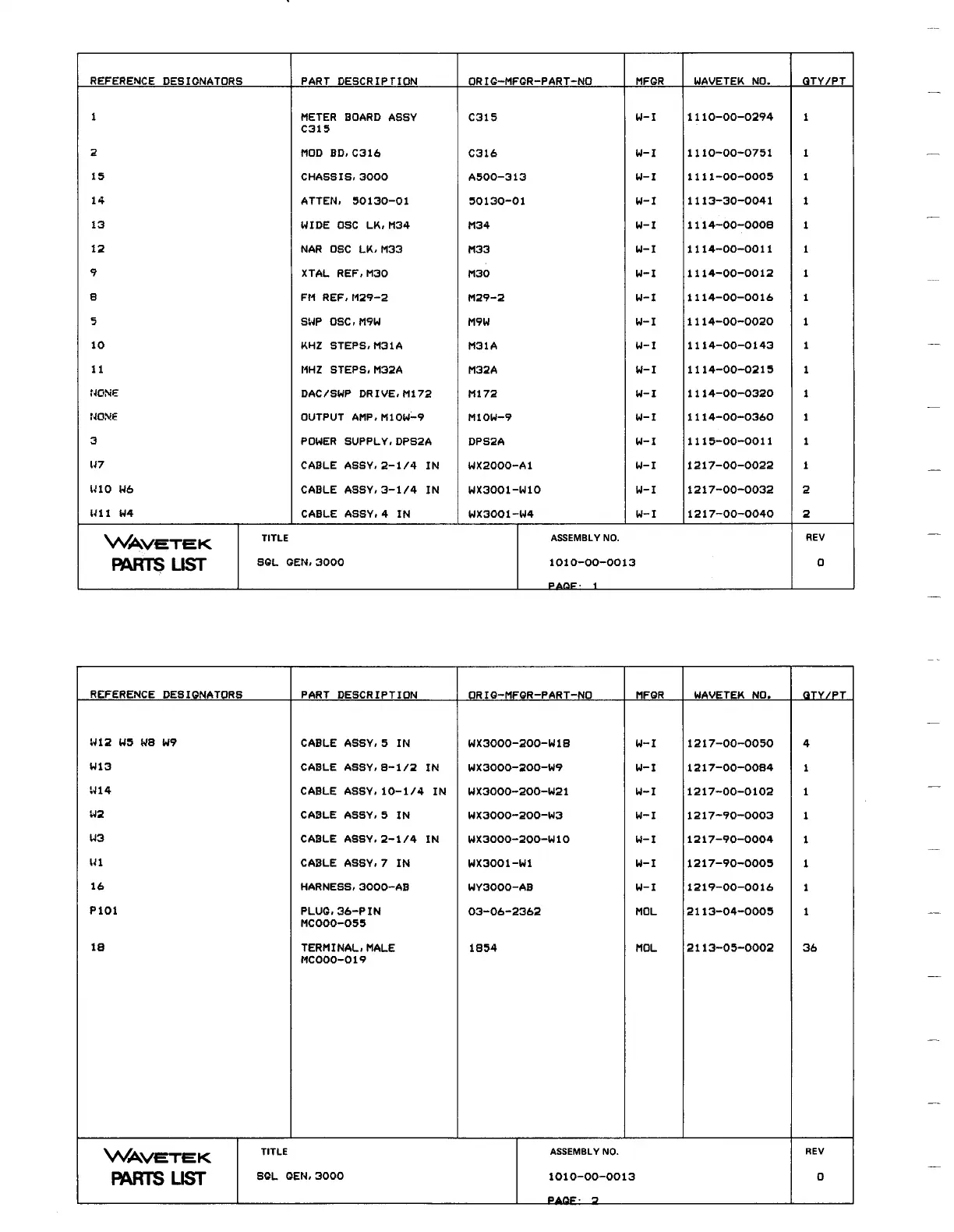

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . QTY/PT
1
METER BOARD ASSY C315 W-I 1110-00-0294 1
C315
2
MOD BD,C316 C316 W-I 1110-00-0751 1
15 CHASSIS,3000 A500-313 W-I 1111-00-0005 1
14 ATTEN, 50130-01
50130-01
W-I 1113-30-0041 1
13 WIDE OSC LK.M34 M34 W-I 1114-00-0008 1
12 NAR OSC LK .M33 M33 W-I 1114-00-0011 1
9
XTAL REF .M30 M30 W-I 1114-00-0012 1
8 FM REF,M29-2 M29-2 W-I 1114-00-0016 1
5 SWP OSC,M9W M9W W-I 1114-00-0020 1
10 KHZ STEPS .M31A M31A W-I 1114-00-0143 1
11
MHZ STEPS.M32A M32A W-I 1114-00-0215 1
NONE DAC/SWP DRIVE,M172 M172 W-I 1114-00-0320 1
t1OMF_ OUTPUT AMP .M10W-9 M10W-9 W-I 1114-00-0360 1
3
POWER SUPPLY,DPS2A DPS2A W-I 1115-00-0011 1
147
CABLE ASSY,2-1/4 IN 14X2000-Al W-I 1217-00-0022 1
1 :10 W6
CABLEASSY .3-1/4 IN 14X3001-1410 W-I 1217-00-0032 2
till W4 CABLE ASSY,4 IN 14X3001-144 W-I 1217-00-0040 2
WAVETEK
TITLE
ASSEMBLY NO . REV
PARM LAST
SGLGEN .3000 1010-00-0013 0
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO Y T
1412 WS 148 W9 CABLE ASSY,5 IN 14X3000-200-WIS W-I 1217-00-0050 4
1413 CABLE
ASSY .8-1/2 IN 14X3000-200-149 W-I 1217-00-0084 1
1414 CABLE ASSY,10-1/4 IN 14X3000-200-1421 W-I 1217-00-0102 1
W2 CABLE ASSY,5 IN 14X3000-200-143
W-I 1217-90-0003 1
W3 CABLE
ASSY,2-1/4 IN 14X3000-200-1410 W-I 1217-90-0004 1
141
CABLE ASSY,7 IN 14X3001-141 W-I 1217-90-0005 1
16 HARNESS .3000-AB WY3000-AB W-I 1219-00-0016
1
P101 PLUG,36-PIN 03-06-2362 MOL 2113-04-0005 1
M0000-055
18 TERMINAL,MALE
1854 MOL
2113-OS-0002 36
MCOOO-019
WAVETEK
TITLE ASSEMBLYNO .
REV
PARM LIST
SQL GEN .3000 1010-00-0013 0
