3 .10 M29-1 - FM REFERENCE

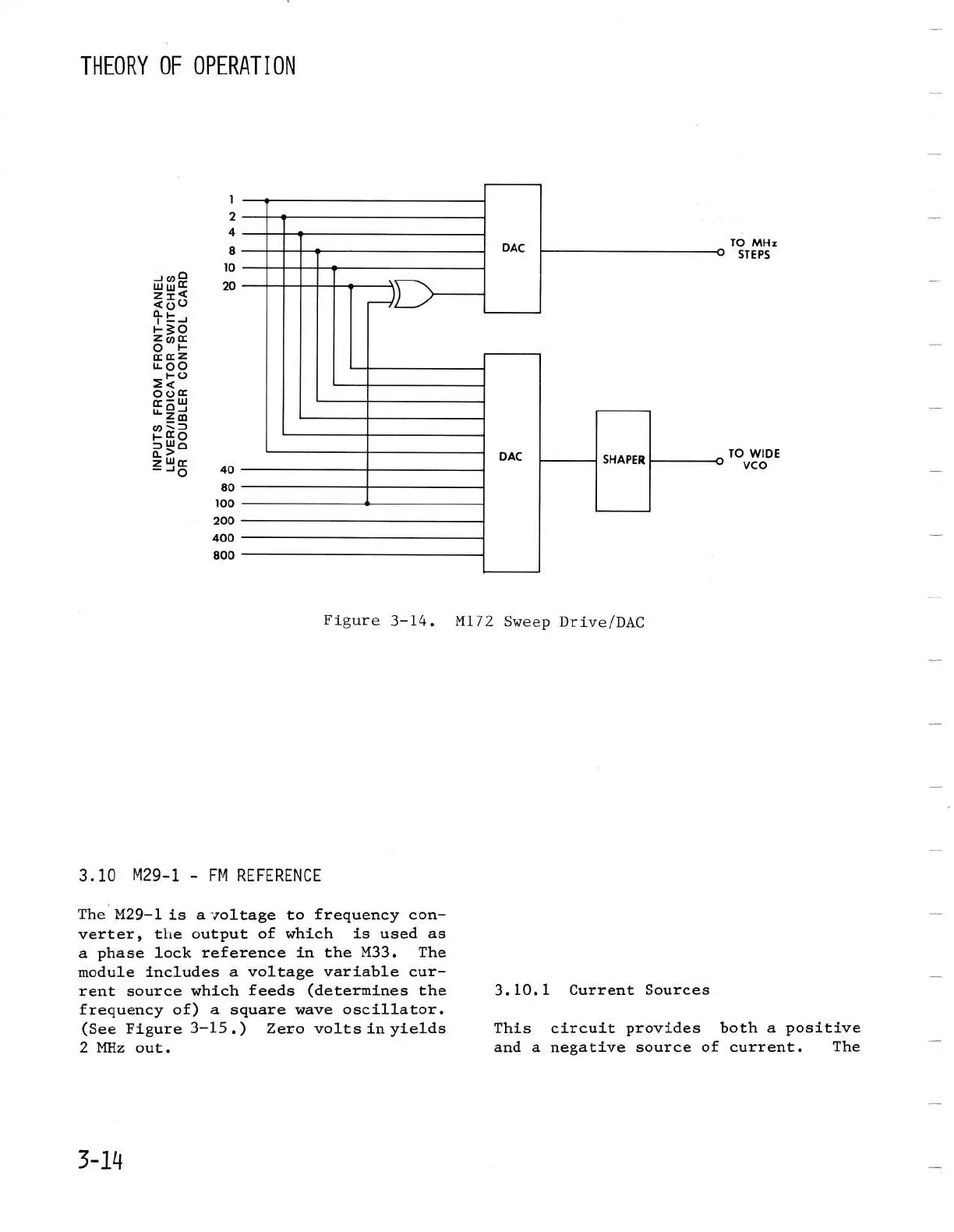

Figure 3-14 . M172
Sweep Drive/DAC
TO MHz
STEPS
TO WIDE
VCO
The M29-1 is a voltage to frequency con-
verter, the output of which is used as
a phase lock reference in the M33 . The
module includes
a voltagevariable cur
rent source which feeds
(determines the

3 .10 .1 CurrentSources
frequency of) a square wave oscillator
.
(See Figure 3-15 .)

Zero volts in yields

This

circuit
provides

botha positive
2 MHz out .

and a negative source of current .

The
