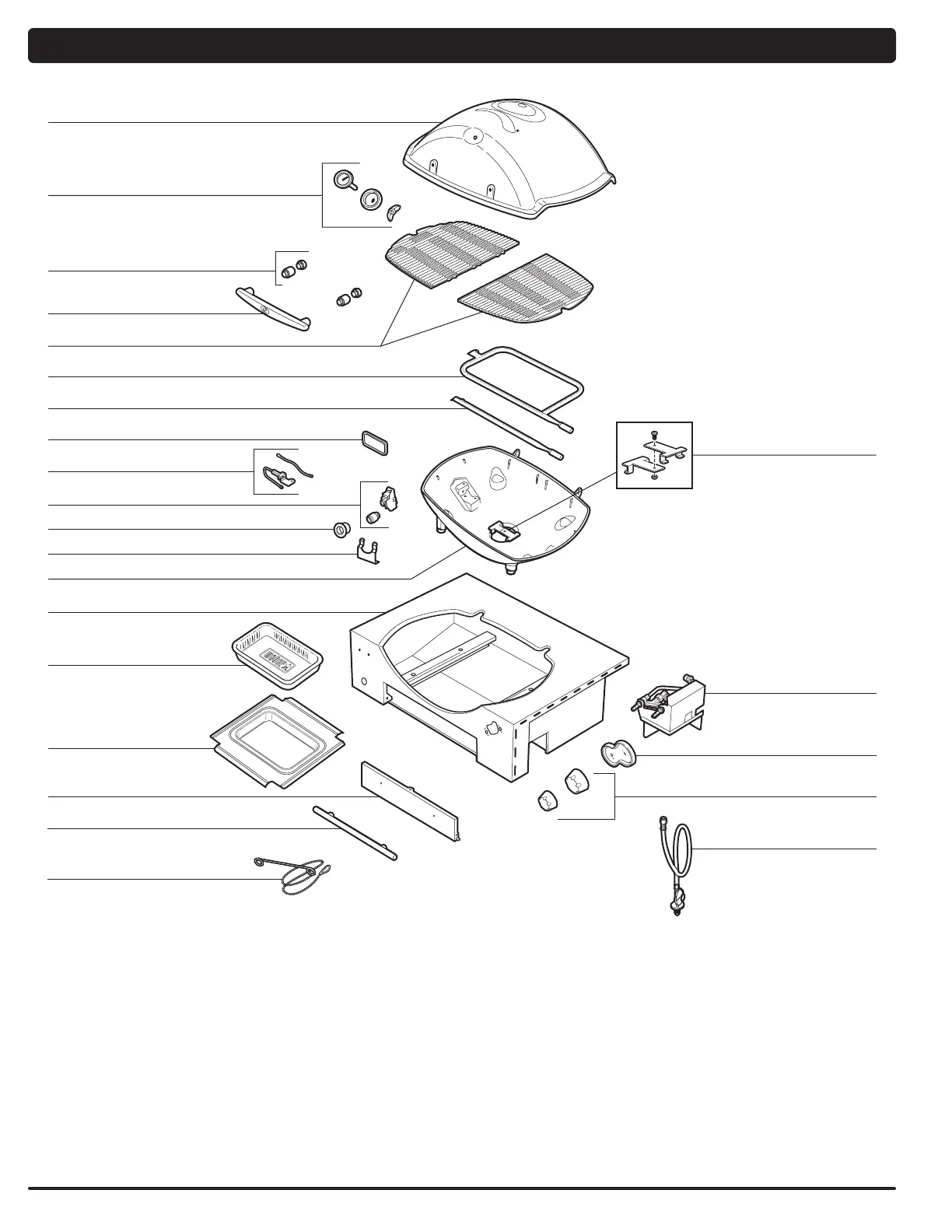

EXPLODED VIEW
1. Lid
2. Thermometer and Bezel
3. Handle Spacer
4. Handle
5. Cooking Grill
6. Outside Burner Tube
7. Inside Burner Tube
8. Logo Plate
9. Igniter Electrode Assembly
10. Electronic Igniter Button/
Electronic Igniter Module
11. Electronic Igniter Bezel
12. Electronic Igniter Bezel Clip
13. Cookbox Assembly
14. Cabinet
15. Disposable Drip Pan
16. Removable Catch Pan
17. Catch Pan Door
18. Catch Pan Door Handle
19. Matchstick Holder
20. Draft Damper
21. Manifold Assembly
22. Control Knob Bezel
23. Burner Control Knob
24. Hose and Regulator Assembly
1
2
5
6
7
8
9
10
14
13
15
16
17
21
20
24
Q3600_AUNZ_LPG_032715
