16 WWW.WEBER.COM
®
ANNUAL MAINTENANCE
BURNER TUBE CLEANING
OR REPLACEMENT
Confirm that Barbecue is Off and Cool
You will need: A Phillips screwdriver.
A) Turn gas supply off at source and disconnect gas
fitting.
B) Check that BOTH burner control knobs are in the
off ( )position. Check by pushing burner control
knobs in and turning them clockwise until they stop.

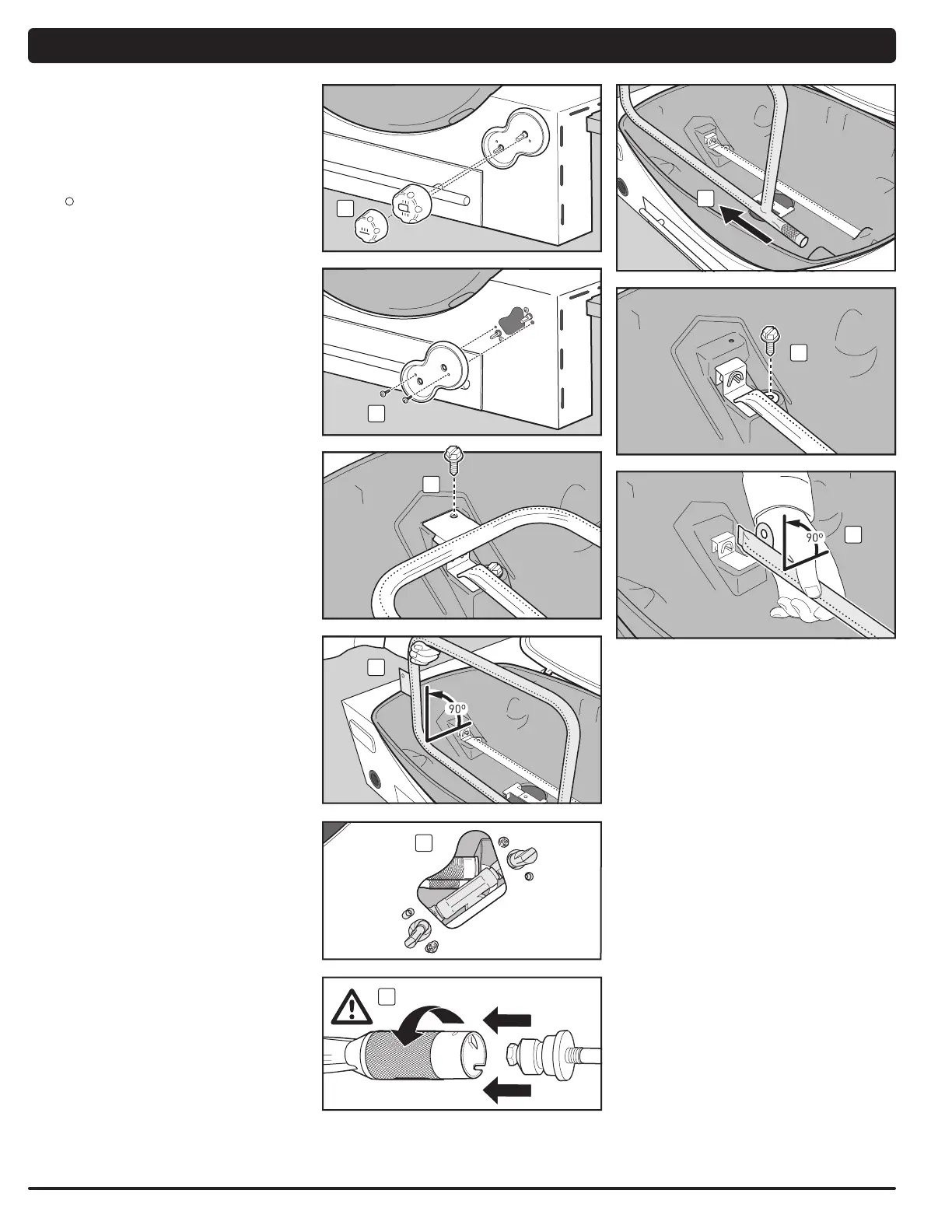

C) Remove burner control knobs (1).
D) Remove the two screws from the front of the control
knob bezel with a Phillips screwdriver (2) and set
bezel aside. You now have access to the burner tube
view port.
Remove Burner Tubes
You will need: A 3/8" nut driver.
A) Open lid and remove cooking grills from the cookbox.
B) Remove the screw that holds the outside burner tube
to the cookbox (3).
C) Rotate the outside burner tube 90° (4) to unlock
it from the valve orifice. Looking through the
view port (5), slide the burner tube away from the
valve orifice (6) and remove from cookbox (7).
D) Remove the screw that holds the inside burner tube to
the cookbox (8).
E) Rotate the inside burner tube 90° (9) to unlock it
from the valve orifice. Looking through the view port
again (5), slide the burner tube away from the valve
orifice and remove from cookbox (6).
m CAUTION: Care must be taken when
removing or reinstalling burner tubes.
Do not force or bend the gas lines within
the manifold assembly.
6
5
1
2
4
7
9
3
8
