mAINTENANcE

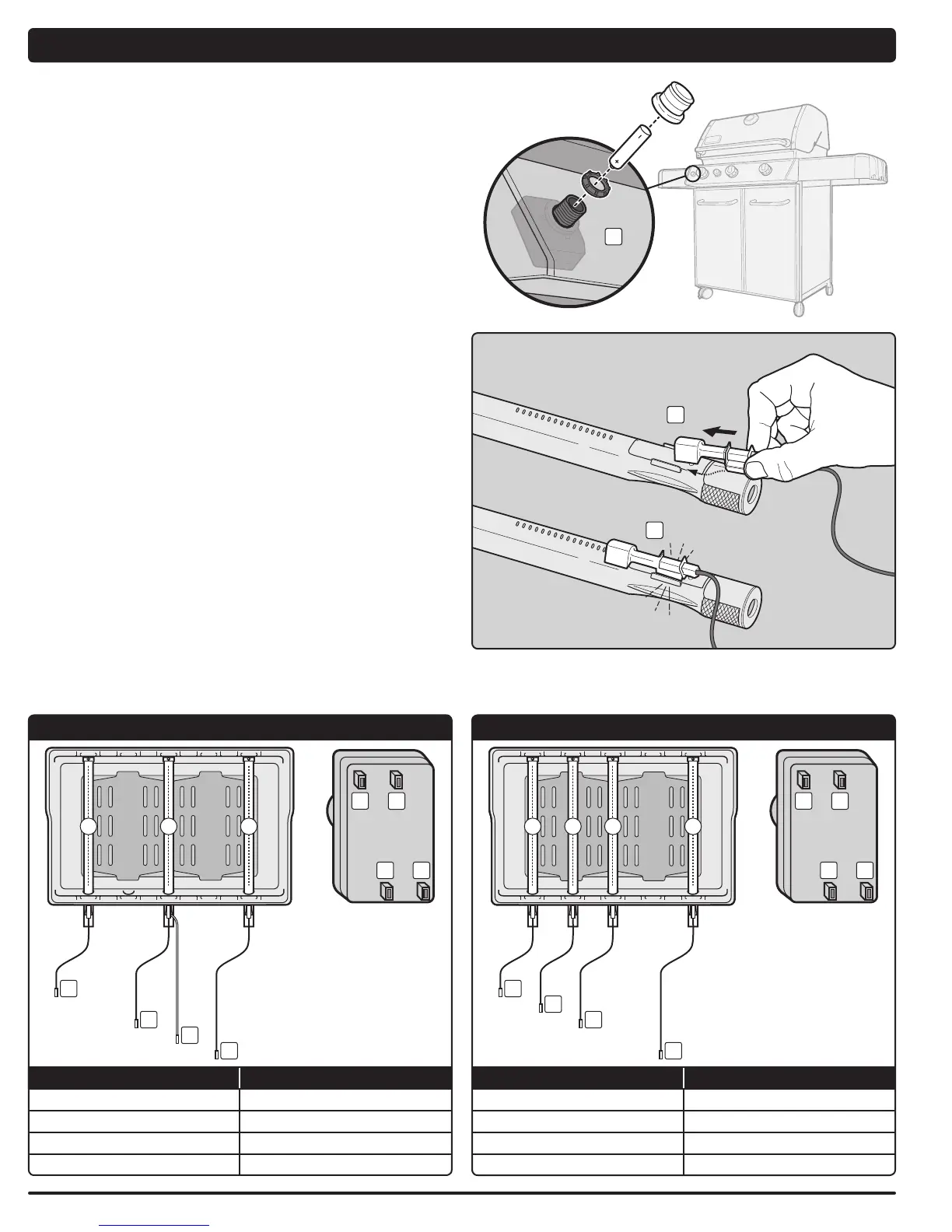

ELECTRONIC IGNITION SYSTEM OPERATIONS
If the Electronic Ignition System fails to ignite, be sure there is gas flow by attempting to
match light your burners. Refer to “MAIN BURNER MANUAL IGNITION”. If match lighting
is successful, the problem lies is the electronic ignition.
m WARNING: All gas controls and supply valves should be in
the OFF position.
• VerifythattheAAbattery(alkalineonly)isingoodconditionandinstalledcorrectly
(1). Some batteries have a plastic protective wrap around them. This plastic must be
removed. Do not confuse this plastic with the battery label.
• Makesuretheignitionwiresareattachedtoignitermoduleproperly.Refertothe
“IGNITER MODULE WIRE GUIDE” below.
• Makesuretheceramicigniterassemblyisfullypositionedintoburnertubeigniter
channel (2). If properly positioned, you will hear a snap (3).
• MakesuretheElectronicIgnitionbuttonisworkingbylisteningandlookingforsparks
at burner.
If the Electronic Ignition System still fails to light, contact the Customer Service
Representative in your area using the contact information on our web site. Log
onto www.weber.com
®
.
◆
IGNITER moDULE WIRE GUIDE 330
1
2
3
4
1
2
34
A BCD
Wire End & Terminal Color Burner Tube
Black (1) Left Burner (A)
Yellow (2) Right Burner (B)
Blue (3) Center Burner (C)
Green (4) Sear Burner (D)
IGNITER moDULE WIRE GUIDE 310/320
1
2
3
4
1
2
34
A BC
Wire End & Terminal Color Burner Tube
Black (1) Left Burner (A)
Yellow (2) Right Burner (B)
Blue (3) Center Burner (C)
Green (Ground) (4) Center Burner (C)
1
2
3

Weber E-330 Specifications

General

Main Burners	3
Total Cooking Area	637 sq in
Main Burner BTU	32, 000 BTU
Side Burner BTU	12, 000 BTU
Weight	180 lbs
Grill Type	Gas Grill
Primary Cooking Area	507 sq in
Warming Rack Area	130 sq in
Grates Material	Porcelain-enameled cast iron
Fuel Type	Liquid Propane
Ignition System	Electronic
Grill Material	Porcelain-enameled
Dimensions	60 x 27 x 48 inches
Sear Station Burner BTU	7, 500 BTU
