6

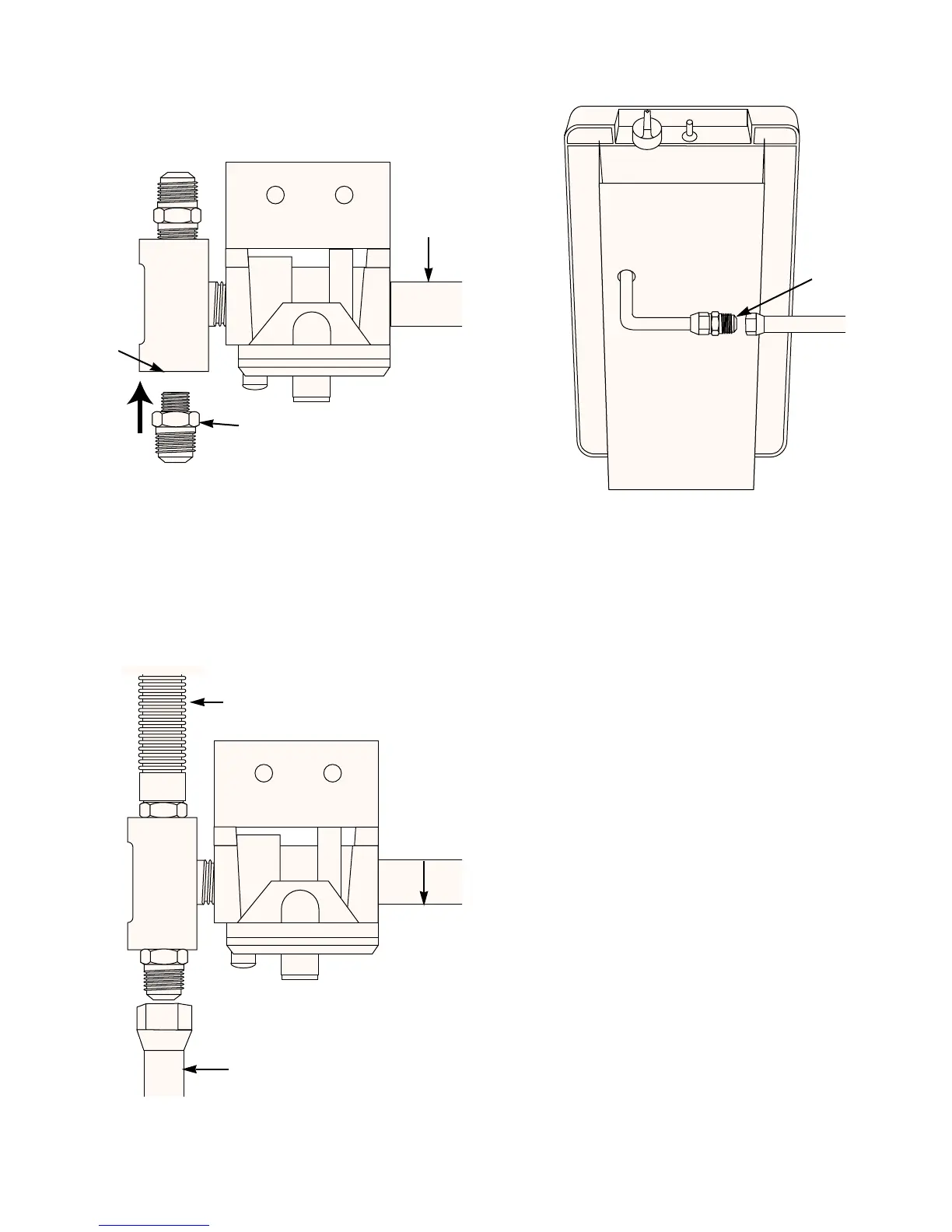

Thread the 1/8 inch NPT x 3/8 inch SAE flare fitting into
the front of the regulator assembly. Figure 9. Use pipe
sealant on the pipe threads.
1/8 inch NPT x 3/8 inch
SAE flare fitting
View from top
Front of
regulator
assembly
Figure 9
Install the flexible corrugated line to the regulator
assembly. Install the 3/8 inch SAE flare fitting to hard
piping. Figure 10. We recommend using hard pipe or a
steel corrugated gas line to make the connection.
Warning: Do not use rubber hose to make the
connection.
Corrugated line
to manifold
Gas line to
side burner
View from top
Figure 10
Gas
supply
Gas
supply
Thread one end of the 3/8 inch SAE flare fitting x 3/8 inch
SAE flare union into the gas line beneath the side burner.
Figure 11.
Figure 11
View from
underneath
side burner
3/8 inch SAE
flare fitting x
3/8 inch SAE
flare fitting
union
SIDE BURNER ASSEMBLY
