9
SIDE BURNER MAINTENANCE

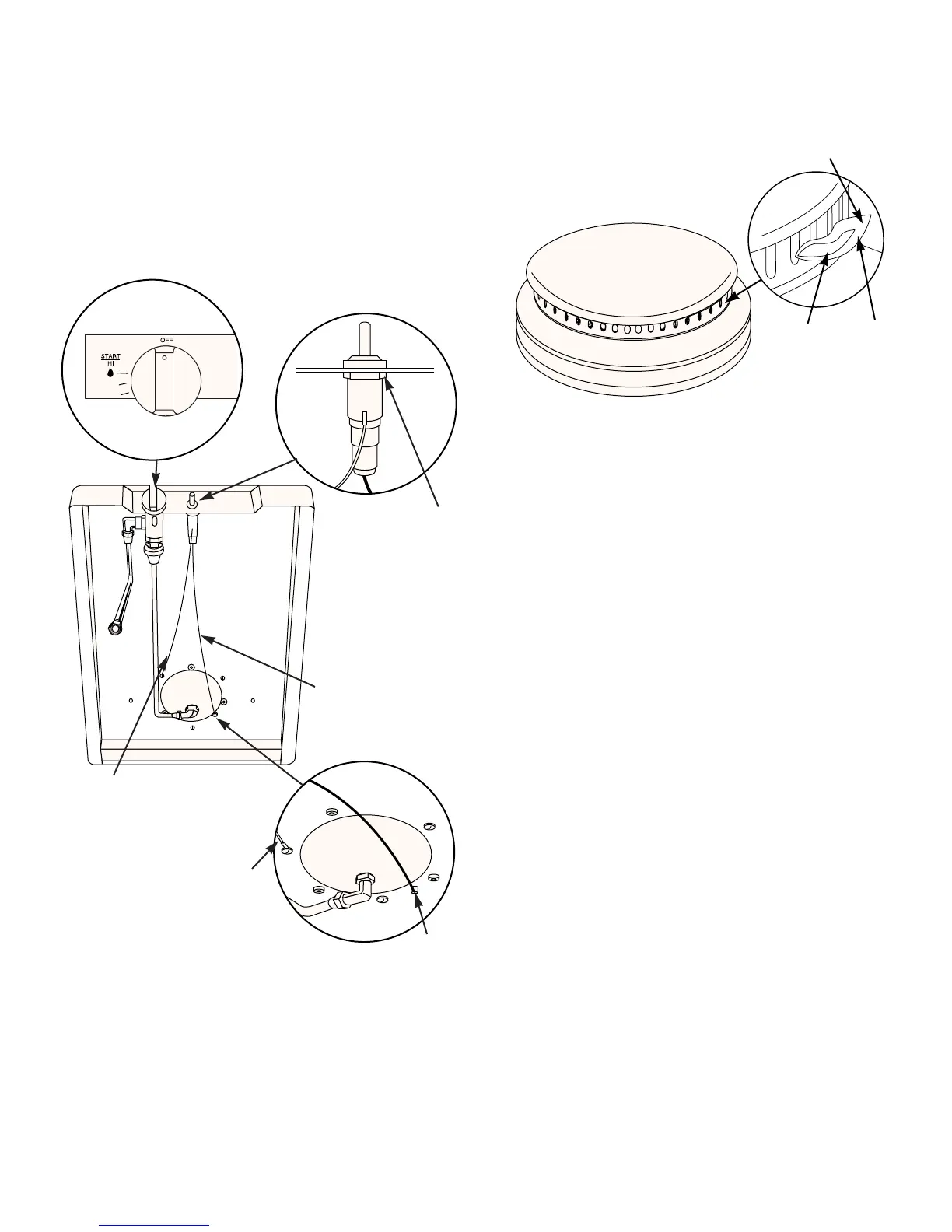

Figure 17
The Summit side burner has been factory set for the
correct air and gas mixture. The correct flame pattern
is shown in Figure 17.
Tips occasionally yellowish
Light
blue
Dark
blue
WARNING: All gas controls and supply valves should
be in the OFF position. Figure 16 (a).
Make sure black wire is connected between igniter and
electrode. Make sure white wire is connected between
igniter and ground. Check that igniter lock nut is tight.
Figure 16 (b) and figure 16 (c).
Note - If the igniter works loose, carefully tighten the
igniter lock nut with an adjustable wrench or pliers.
(a)
(c)
(b)
Figure 16
Ground
Electrode
Views from
figures 16 (b) and (c)
from under side burner
Igniter lock nut
Black wire
White wire
