10

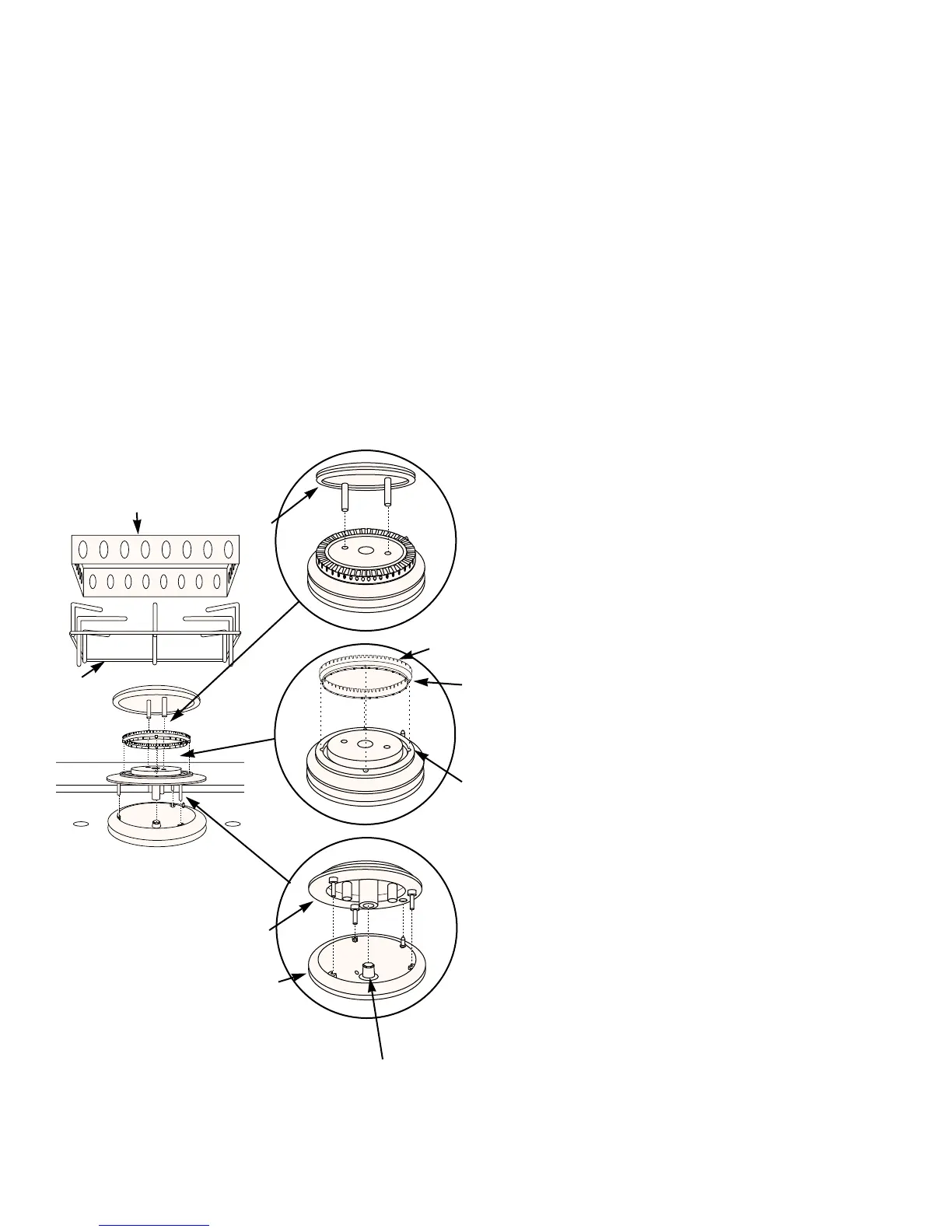

Figure 18
To Clean the Burner Head
Remove the windshield and grate. Remove the burner
cap. Figure 18 (a). Clean with soap and water. Soak
if necessary.
Remove the burner ring. Figure 18 (b). Clean with soap
and water. Soak if necessary.
CAUTION: Do not enlarge the slots in the burner ring.
Only clean with a cloth and soap and water.
Remove the burner head. Figure 18 (c). Clean with soap
and water. Soak if necessary. Wipe out the burner base
with a damp cloth and soap and water.
CAUTION: Avoid getting water or dust in the
burner orifice.
Clean the ignition electrode with a damp cloth and soap
and water.
(a)
(c)
(b)
Burner cap
Burner ring
Burner head
Burner base
SIDE BURNER MAINTENANCE
Windshield
Grate
To Reassemble the Burner Head
Insert the burner head into the burner base. Figure 18 (c).
There is a hole in the burner head for the igniter electrode.
Set the burner ring onto the burner head. Rotate the
burner ring until the four lugs on the burner ring are
seated in the four slots on the burner head. Figure 18 (b).
WARNING: If the flame pattern is uneven or erratic,
turn OFF the burner control knob. Check the position
of the burner ring to the burner head. The lugs of the
burner ring must be in the slots of the burner head.
Install the burner cap. Figure 18 (a). Install the grate and
the windshield.
Burner orifice
Slot
Lug
