Recordingmeasuredvalues
MemoryfunctionPOINT
Measurement points representing a given machine sequence (for ex-
ample, lifting, sinking, operation under load, off-load operation etc.) are

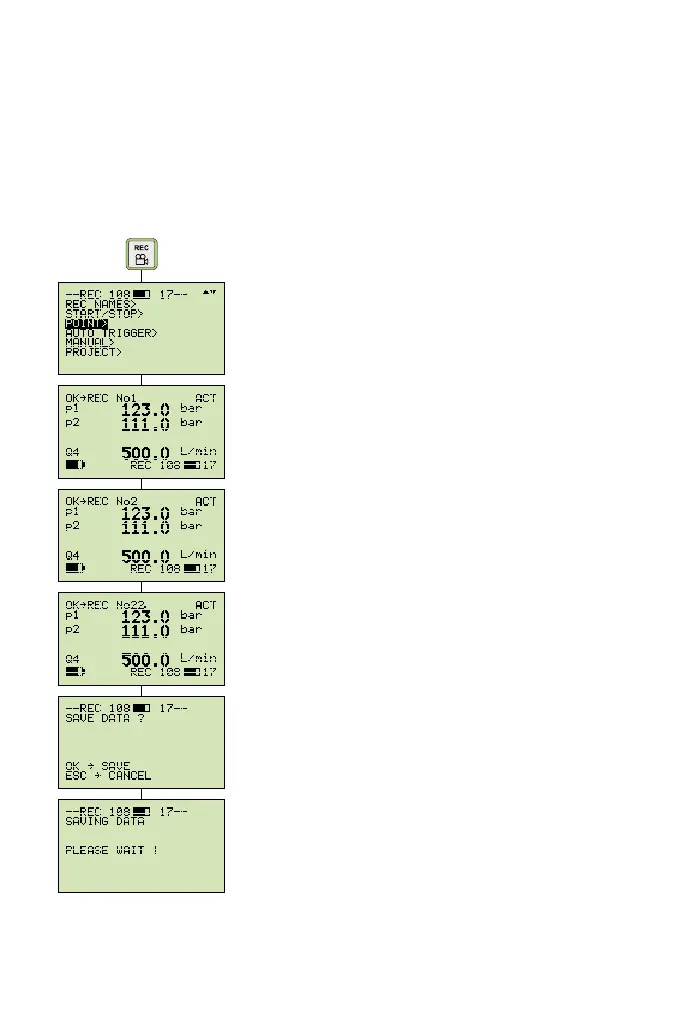

saved in a 'point-to-point curve'. In the example shown, the channels p1,
p2 and Q4 are connected.
The rst data record will be saved; for
example, p1, p2 and Q4
The second data record will be saved; for
example, p1, p2 and Q4
The third data record will be saved; for
example, p1, p2 and Q4
