WEG CFW100 - Basic Application

First Time Power-Up and Start-Up
English
5.2.1 Basic Application

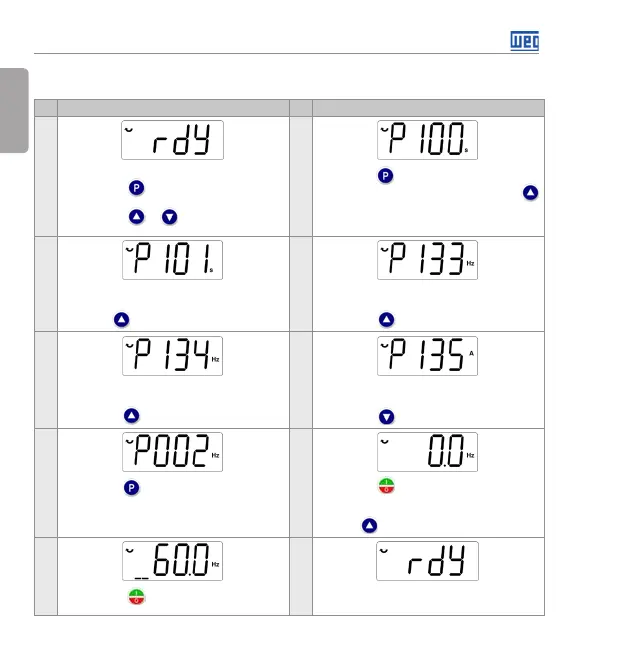

Seq Display Indication/Action Seq Display Indication/Action
1
2
 Initialization mode.
 Press key to enter the first level of the
parameterization mode.
 Press keys or to select the parameter
P100.
 Press key if you need to change the content
of P100 – “Acceleration Time” or press key
for the next parameter.
3
4
 If necessary, change the content of
“P101 – Deceleration Time”.
 Use key to select the parameter P133.
 If necessary, change the content of
“P133 – Minimum Speed”.
 Press key for the next parameter.
5 6
 If necessary, change the content of
“P134 – Maximum Speed”.
 Press key for the next parameter.
 If necessary, change the content of
“P135 – Output Maximum Current”.
 Press key to select parameter P002.
7 8
 Press key to view the parameter content.
 Press key that the motor will accelerate up
to 3.0 Hz (factory default setting of
P133 – Minimum Frequency).
 Press and hold it until it reaches 60.0 Hz.
9 10
 Press key . The motor will decelerate to
a stop.
 When the motor stops, the display will indicate
“ready”.
