2.3 TERMINOLOGY
Tab l e 2 .1: Terminology of the CFW100 inverters
Product
and
Series
Model Identification
Degree of
Protection
Hardware
Version
Software
Version
Mechanics
Rated
Current
Phase
Number
Rated
Voltage
E.g.: CFW100 A 01P6 S 2 20 --- ---
Available options
CFW100
A 01P6 = 1.6 A
S = single-phase
supply
2 = 200...240 V
Blank =
standard
B 02P6 = 2.6 A
Sx =
special
software
C 04P2 = 4.2 A
20 = IP20
Blank = standard
Hx = special hardware
2.4 IDENTIFICATION LABEL
The identification label is located on the side of the inverter. For further details on positioning the
label, refer to Figure A2 on page 120.
Production order
Rated input data
(voltage, current and
frequency)
Serial number
Manufacturing date (14 corresponds
to the week and I to the year)
Rated output data
(voltage, current and frequency)
WEG stock item
Model (Inverter
intelligent code)
CFW100 Side Label

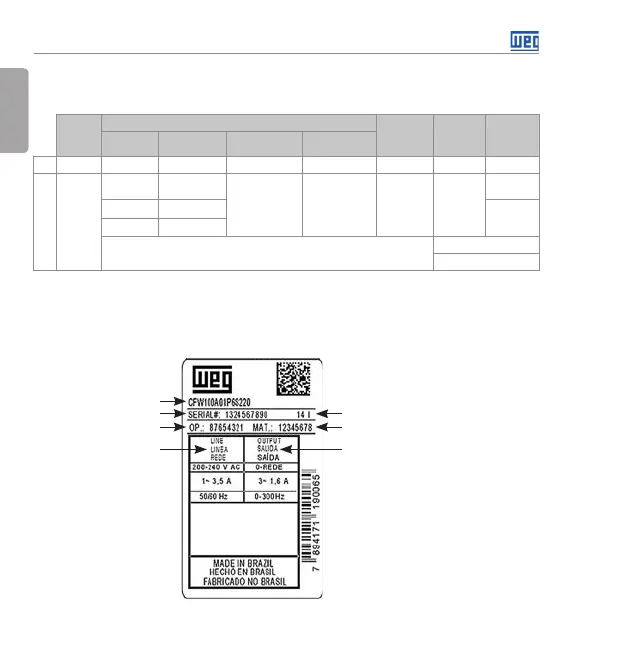

Figure 2.2: Description of the CFW100 identification label
