HMI OPERATION
4 HMI OPERATION
The HMI Interface (HMI - Human Machine Interface) provides a series of new resources to the medium voltage
frequency inverter MVW3000. They are:
Visualization: text and graphic visualization mode.
Monitoring: up to 6 parameters can be monitored simultaneously on the screen.
Navigation: navigation system via menus, with the addition of scrollbars and new keys.
On-line help function: help in the HMI itself.
Edition: new keys to speed up the parameter edition.
The HMI design, improvements and new functions present operation, navigation and programming similar with
WEG product line.
O
|
?
JOG
LOC
REM
Trend 13:38 Menu
In Ref.
LOC
900rpm
900
rpm
Motor Speed
P0002:
?
Motor speed
Local/Remote
Softkey 2 function
Hour
Softkey 2
Prog/Enter key
On-line help available
Inverter status
Softkey 1 function
Softkey 1
Online help button
Direction of rotation
Developed by
Juliano Rafael Schoenhalz
Gustavo Pereira
Rafael Nardelli

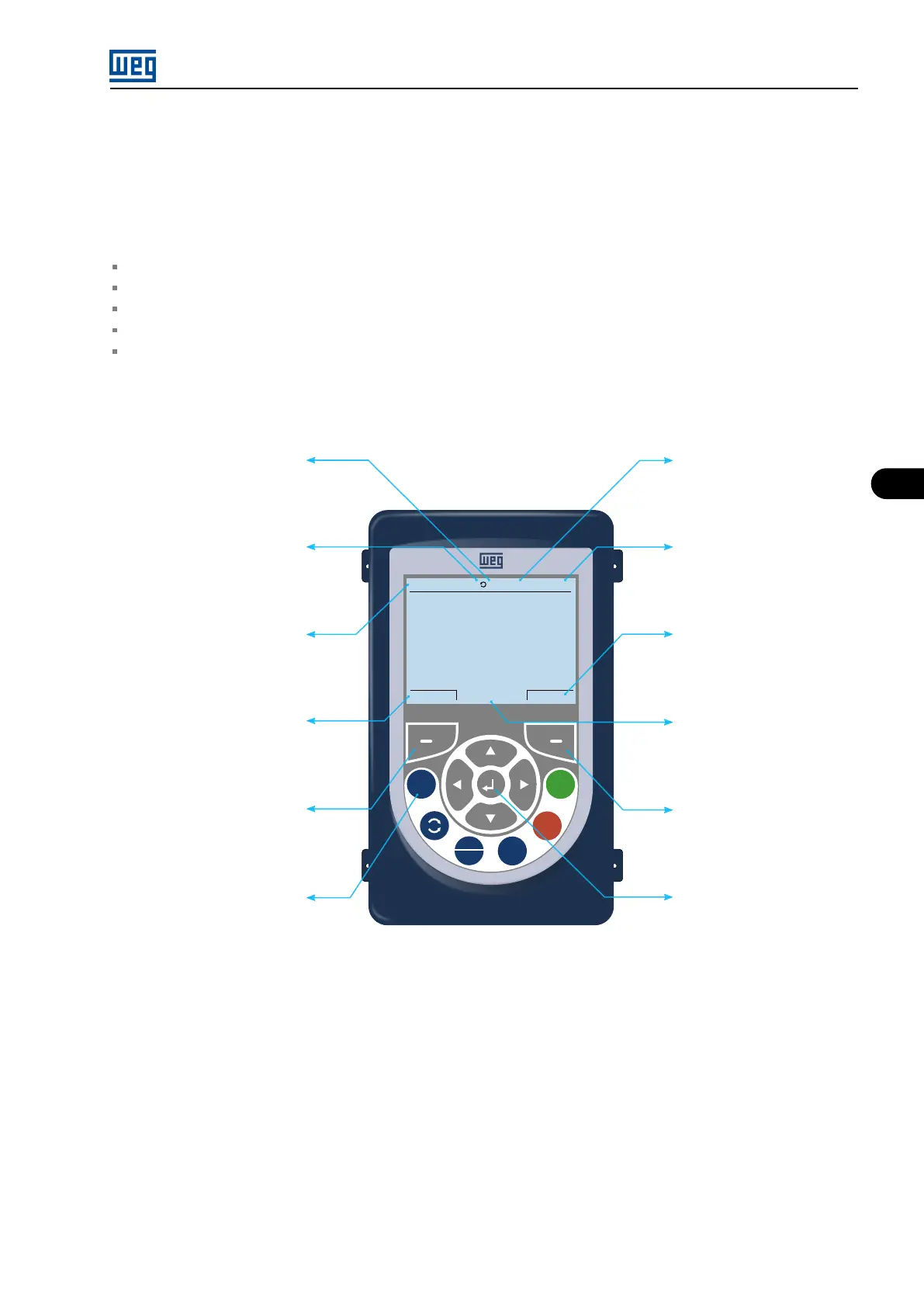

Figure 4.1: MVW3000 inverter HMI
4.1 INSTALLATION OF THE HMI IN THE CABINET
The installation of the HMI in the cabinet does not require the frame, and the fastening is done directly with the
screws placed on the movable fins positioned at the HMI back cover, according to the Figure 4.2 on page 4-2.
MVW3000 | 4-1
