DETAILED PARAMETER DESCRIPTION
Output voltage
Frequency
Rated
P0136 = 100
0 P0622 60 Hz
Rated * P0622 / 8192
20% Rated (100)
P0136 = 0

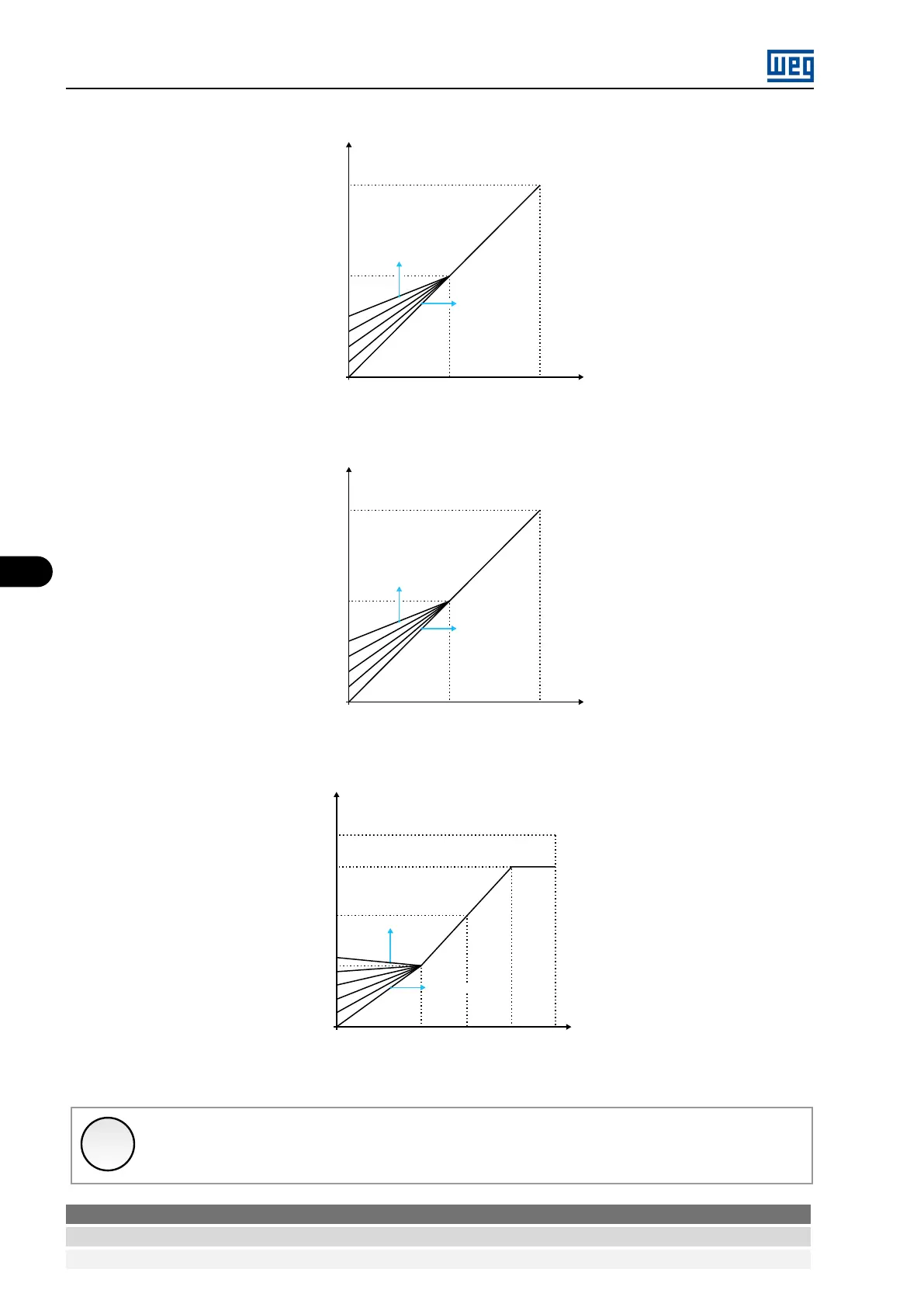

Figure 5.7: P0202 = 0, V/F curve 60 Hz
Output voltage
Frequency
Rated
P0136 = 100
0 P0622 50 Hz
Rated * P0622 / 8192
20% Rated (100)
P0136 = 0
Figure 5.8: P0202 = 1, V/F curve 50 Hz
Output voltage
Frequency
P0136 = 100
0 3 Hz P0146 P0145 P0134
P0136 = 0
P0143
P0144
P0142
100 %
20% Rated (100)
Figure 5.9: P0202 = 2, V/F adjustable curve
✓
NOTE!
This parameter is only visible on the HMI when: the control type is scalar, P0202 = 0, 1 or 2 (V/F
control).
P0137 - Addition on the automatic torque curve
Adjustable range: 0 to 1000 Factory setting: 0
Acesso: Menu → Configurations → Control
MVW3000 | 5-18
