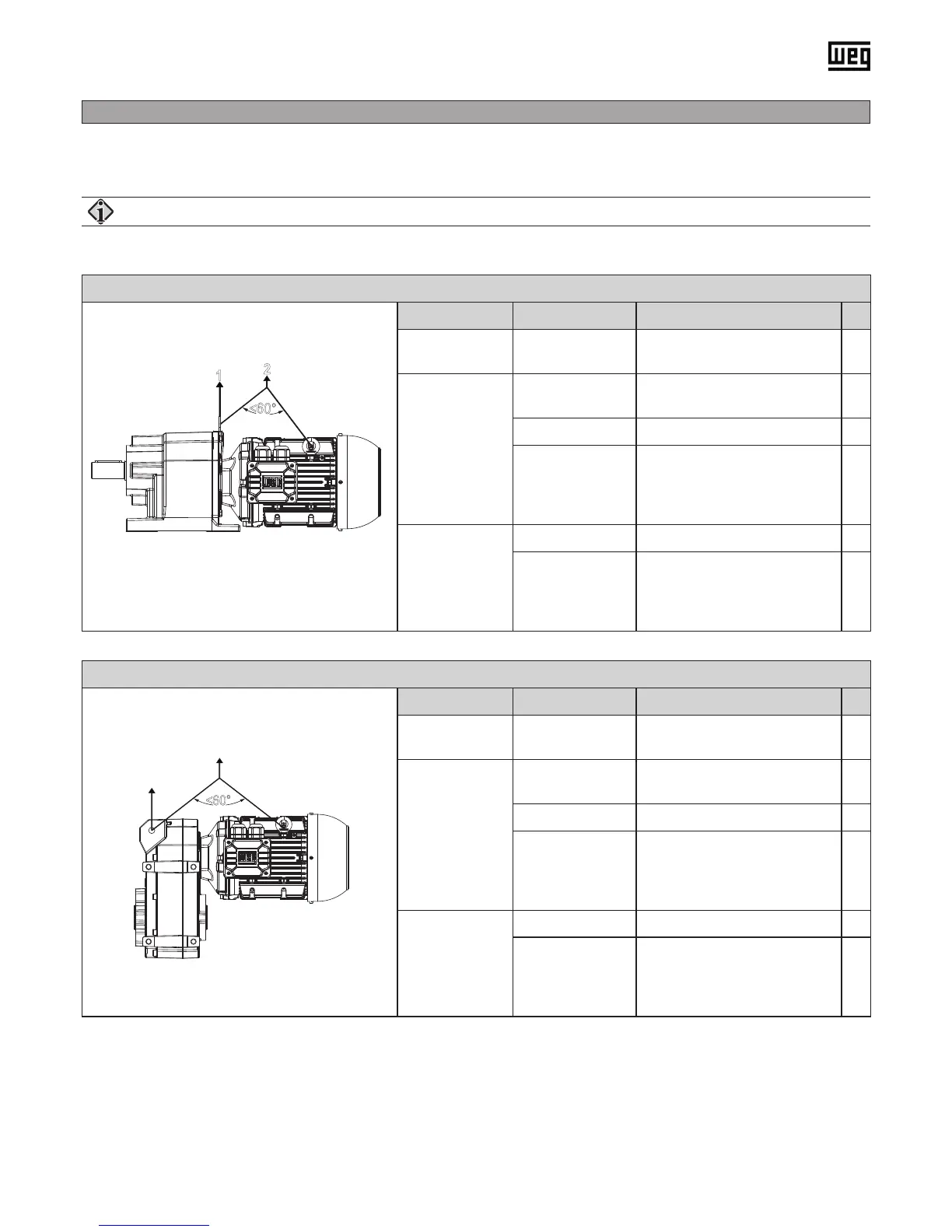

After delivery, the unit must be inspected for any damage that may have occurred during transport. In case of damage do
not put the motor into operation.
Helical geared motors C
1
<
60°
1
2
Gear size Motor size Load handling
C00
C01
all
No equipment for
load handling provided
-
C03
C05
C06
63 - 71
No equipment for
load handling provided
-
80 - 90 Lifting eye on the gearbox 1
100 - 132
Lifting eye on the gearbox
+ eye bolt on motor
(max. angle of 60° between
the ropes)
2
C07
C08
63 - 90 Lifting eye on the gearbox 1
100 - 180
Lifting eye on the gearbox
+ eye bolt on motor
(max. angle of 60° between
the ropes)
2
Parallel shaft geared motors F
1
<
60°
2
Gear size Motor size Load handling
F02 all
No equipment for
load handling provided
-
F03
F04
F05
63 - 71
No equipment for
load handling provided
-
80 - 90 Support hole 1
100 - 132
Support hole + eye bolt on
motor (max. angle of 60°
between the ropes)
2
F06
F07
63 - 90 Support hole 1
100 - 160
Support hole + eye bolt on
motor (max. angle of 60°
between the ropes)
2
ATTENTION!
To lift the geared motors, you have to use the following load handling equipment:
