WEG WG20 - Parallel Shaft Gear Units F

E-30 | WG20 Geared Motors
15.2. Parallel shaft gear units F
Lubricant capacity
Stages Type
Mounting positions
M1 M2 M3 M4 M5 M6
2
F02 0.5 l 0.7 l 0.6 l 0.8 l 0.5 l 0.5 l
F03 0.8 l 1.1 l 0.7 l 1.1 l 0.8 l 0.8 l
F04 1.1 l 1.8 l 1.1 l 1.9 l 1.1 l 1.1 l
F05 2.0 l 2.3 l 1.5 l 2.8 l 1.7 l 1.8 l
F06 2.3 l 3.6 l 2.5 l 4.0 l 2.3 l 2.5 l
F07 4.9 l 6.3 l 4.2 l 8.0 l 4.4 l 4.8 l
3
F04 1.5 l 1.7 l 1.1 l 1.8 l 1.0 l 1.1 l
F05 2.3 l 2.2 l 1.4 l 2.5 l 1.6 l 1.5 l
F06 2.7 l 3.5 l 2.3 l 3.8 l 2.4 l 2.3 l
F07 5.8 l 6.2 l 3.9 l 7.7 l 4.4 l 4.5 l

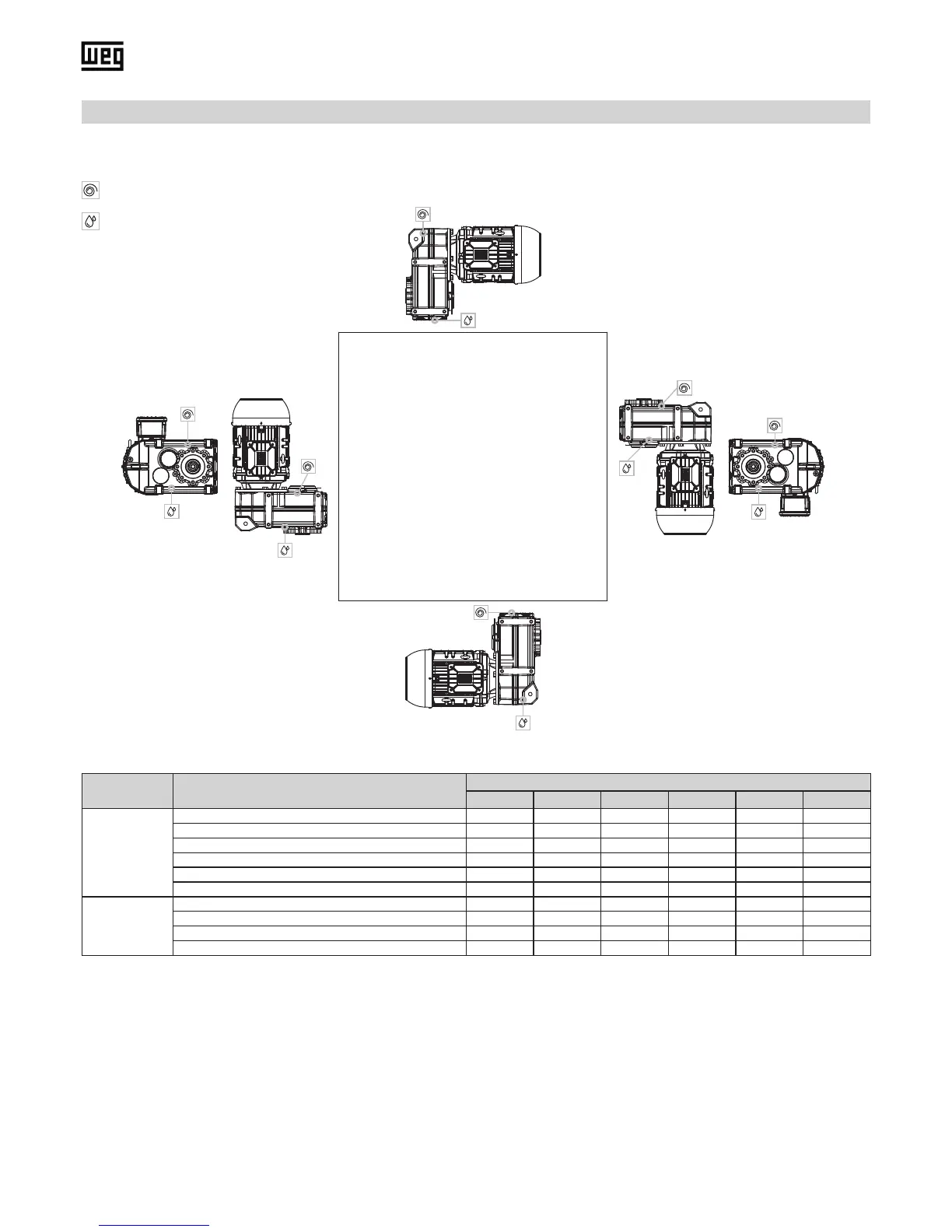

Mounting positions and position of venting and oil drain screw
By default, gear units are only equipped with venting and oil drain screw from gear size F06!
M1
M2
M3
M4
M5M6
Position of the venting screw
Position of the oil drain screw
