WEG WG20 - Position of Terminal Box and Cable Entry; Terminal Board Connection

E-32 | WG20 Geared Motors

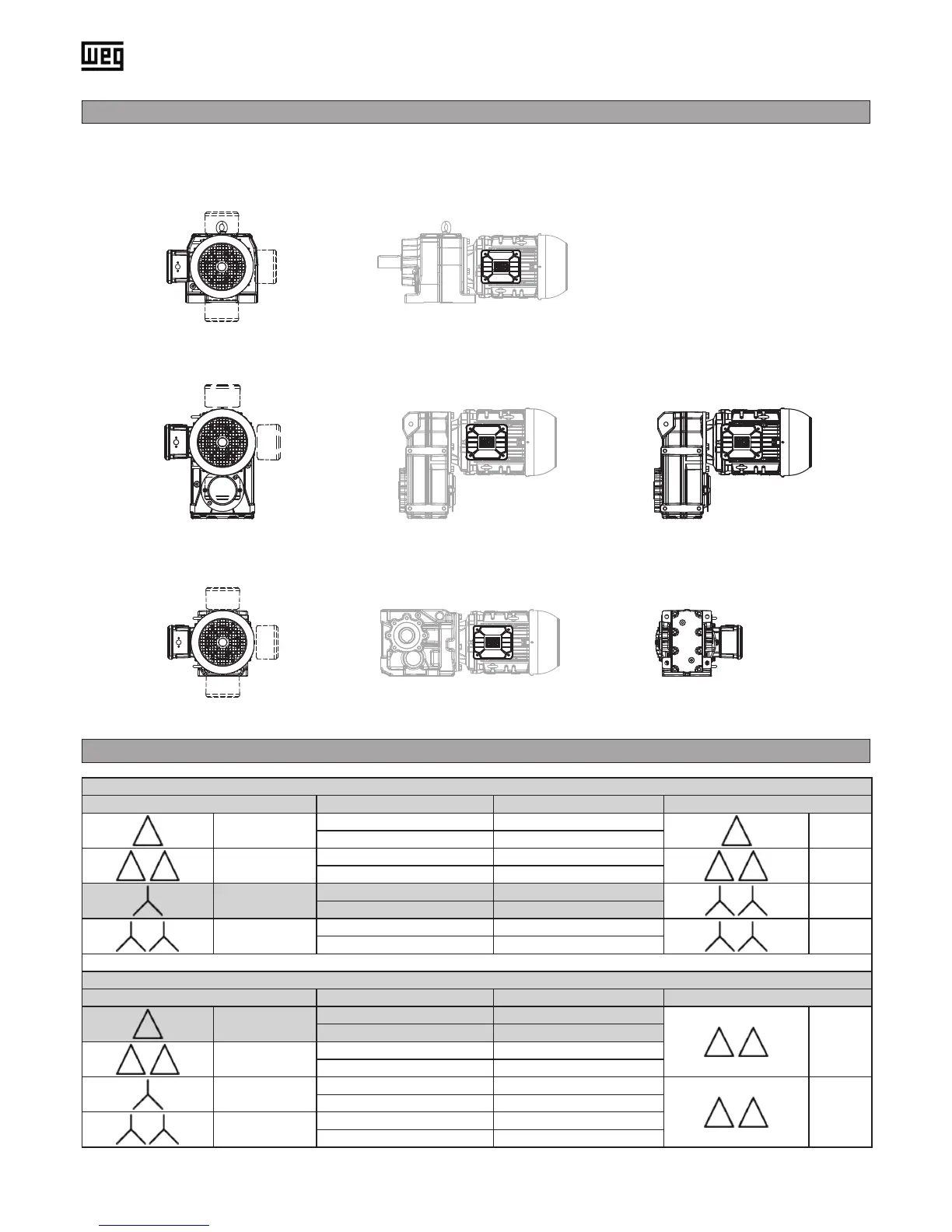

16. Position of terminal box and cable entry
17. Terminal board connection
Figure 11: Possible terminal box positions 1 to 4 (standard position on side 1) and cable entries I to IV (standard position
on side I)
Rated voltage series 11N, 11P (IEC frame sizes 63 to 100)
Possible connection Rated power P
N
Increased rated power 1.2 x P
N
VSD operation
Delta
220 - 230 - 240 V at 50 Hz -
400 V,
87 Hz
220 - 265 - 277 V at 60 Hz 254 - 265 - 277 V at 60 Hz
Delta - Delta
110 - 115 - 120 V at 50 Hz -
230 V,
100 Hz
110 - 132 - 138 V at 60 Hz 127 - 132 - 138 V at 60 Hz
Star
(Basic connection)
380 - 400 - 420 V at 50 Hz -
400 V,
100 Hz
380 - 460 - 480 V at 60 Hz 440 - 460 - 480 V at 60 Hz
Star - Star
190 - 200 - 210 V at 50 Hz -
460 V,
120 Hz
190 - 230 - 240 V at 60 Hz 220 - 230 - 240 V at 60 Hz
Rated voltage series 11P (IEC frame sizes 112 to 132) and 22P (IEC frame sizes 160 to 180)
Possible connection Rated power P
N
Increased rated power 1.2 x P
N
VSD operation
Delta
(Basic connection)
380 - 400 - 420 V at 50 Hz -
400 V,
100 Hz
380 - 460 - 480 V at 60 Hz 440 - 460 - 480 V at 60 Hz
Delta - Delta
190 - 200 - 210 V at 50 Hz -
190 - 230 - 240 V at 60 Hz 220 - 230 - 240 V at 60 Hz
Star
660 - 690 - (730) V at 50 Hz -
460 V,
120 Hz
660 - (796) - (830) V at 60 Hz (760) - (796) V at 60 Hz
Star - Star
330 - 346 - 365 V at 50 Hz -
330 - 400 - 415 V at 60 Hz 380 - 400 - 415 V at 60 Hz
1
2
3
4
I
II
III
IV
1
2
3
4
I
II
III
IV
Side B Side A
1
2
3
4
I
II
III
IV
Side A Side B
C:
F:
K:
