WG20 Geared Motors | E-33
The following connection diagram is valid for modular system motors of the series 11N and 11P in frame sizes 63 to 132
and 22P in frame sizes 160 to 180.

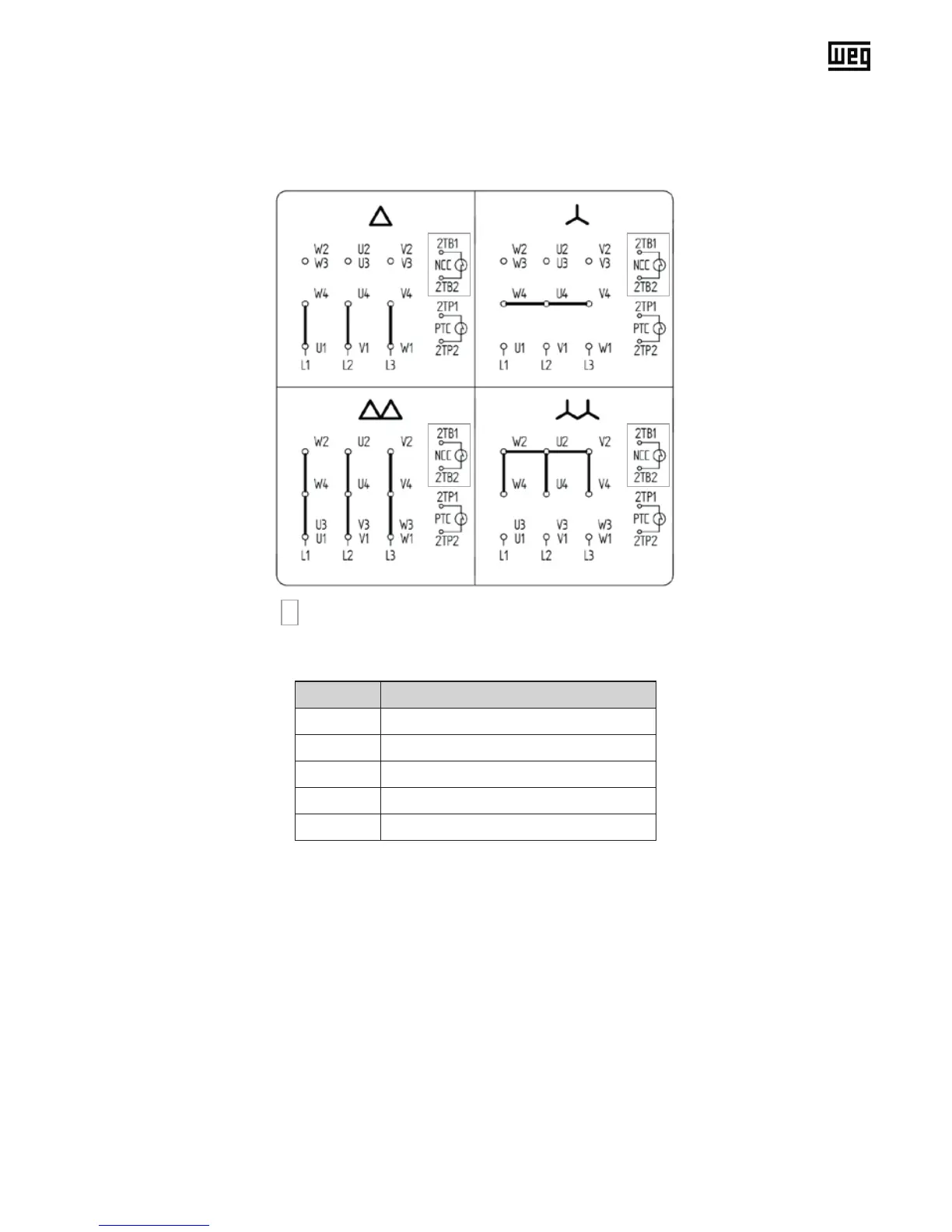

Figure 12: Terminal board connection - motor series 11N, 11P and 22P
Thread Tightening torque M
a
[Nm]
M4 0.7 - 1.0
M5 1.6 - 2.2
M6 2.2 - 3.5
M8 6 - 8
M10 10 - 14
Table 3: Tightening torque for terminal box
Bimetal switch (2TB1/2TB2) only available for motor series 11
