9
3.5 Installation of cooling system
3.5.1 Fresh water cooling system
The diesel engine internal cooling system (freshwater system) is a closed circuit
that is assembled in the factory. No additional installation or modication is required.
3.5.2 Sea water system
The sea water pump sub assembly is supplied with this engine in a separate box.
It is a centrifugal type, pulley driven pump. The input drive can be availed from the
front end pulley of the engine through a B-type V-belt. User can install the pump on
either side of the engine according to the design of the engine room. Ensure that
the pump drive pulley and engine output pulley is aligned properly.
Fabricate the system pipe line only with anti-corrosive material. Reduce the length
of the system pipelines and number of elbows to minimize the resistance of water
ow. Dimension of the connecting lines (suction and delivery) should be same as
per the pump design.
Before priming/commissioning, make sure that the sea water
supply line is completely ushed and clean so that the system
is free from any metal obstacles or burrs.
3.6 Installation of diesel engine front end output
The front end output pulley of diesel engine can be used to drive small-sized
machinery, such as sea water pump, hydraulic steering pump and power take-off
etc. These units should be symmetrically arranged on two sides of the diesel engine
so as to avoid the diesel engine crankshaft from being subject to unidirectional
tension force. If it is necessary to drive large-sized machinery such as net-hauling
machine, then, an elastic coupling must be used for connection. Refer gure 3.4
The installation should be conducted according to the requirements on aligning
accuracy of different couplings as specied by the international standard. In service,
its coaxial accuracy should be periodically checked to ensure the alignment of the
coupling; otherwise it will lead to damage of parts and components of diesel engine.

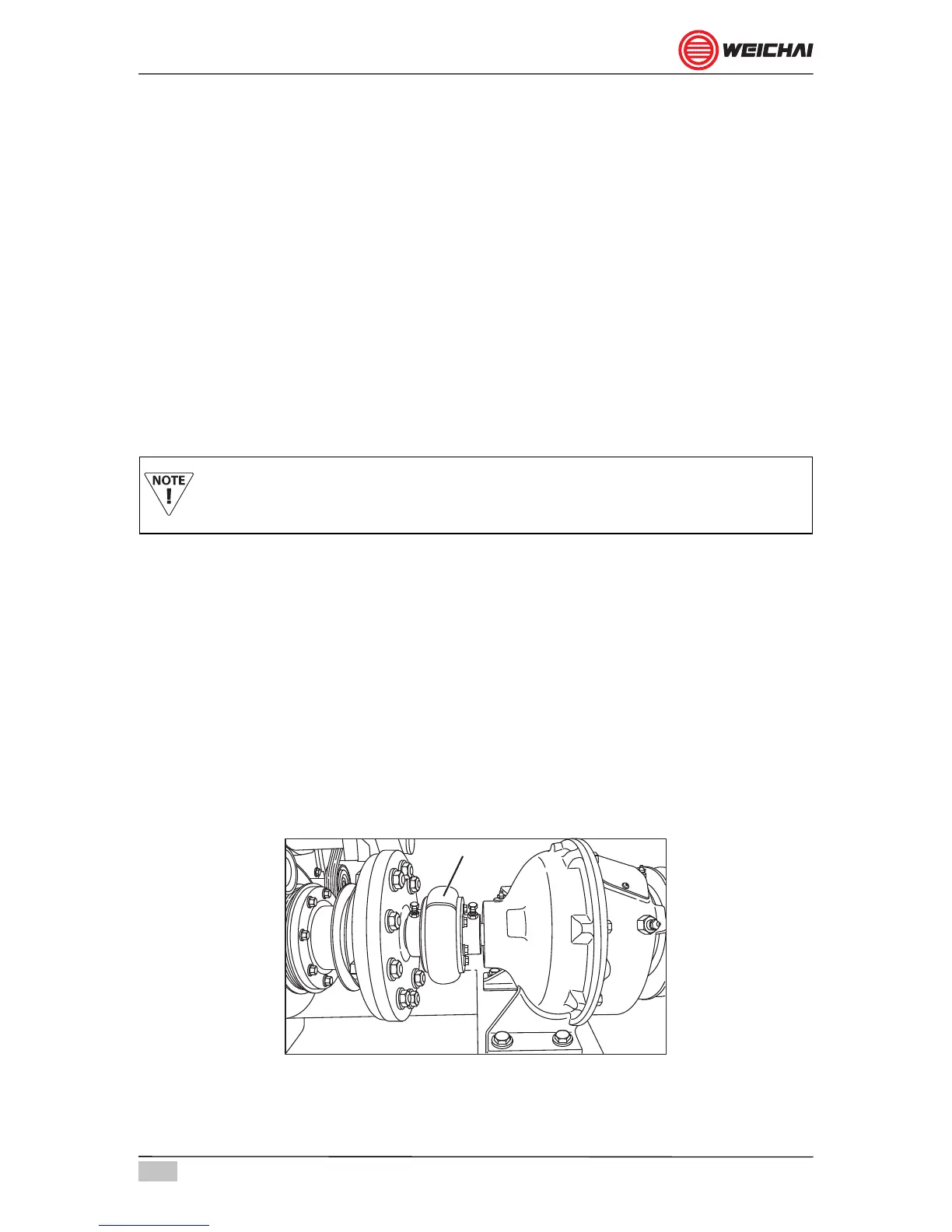

ELASTIC COUPLING
Figure 3.4
