ProCommander
®
AX Appendix

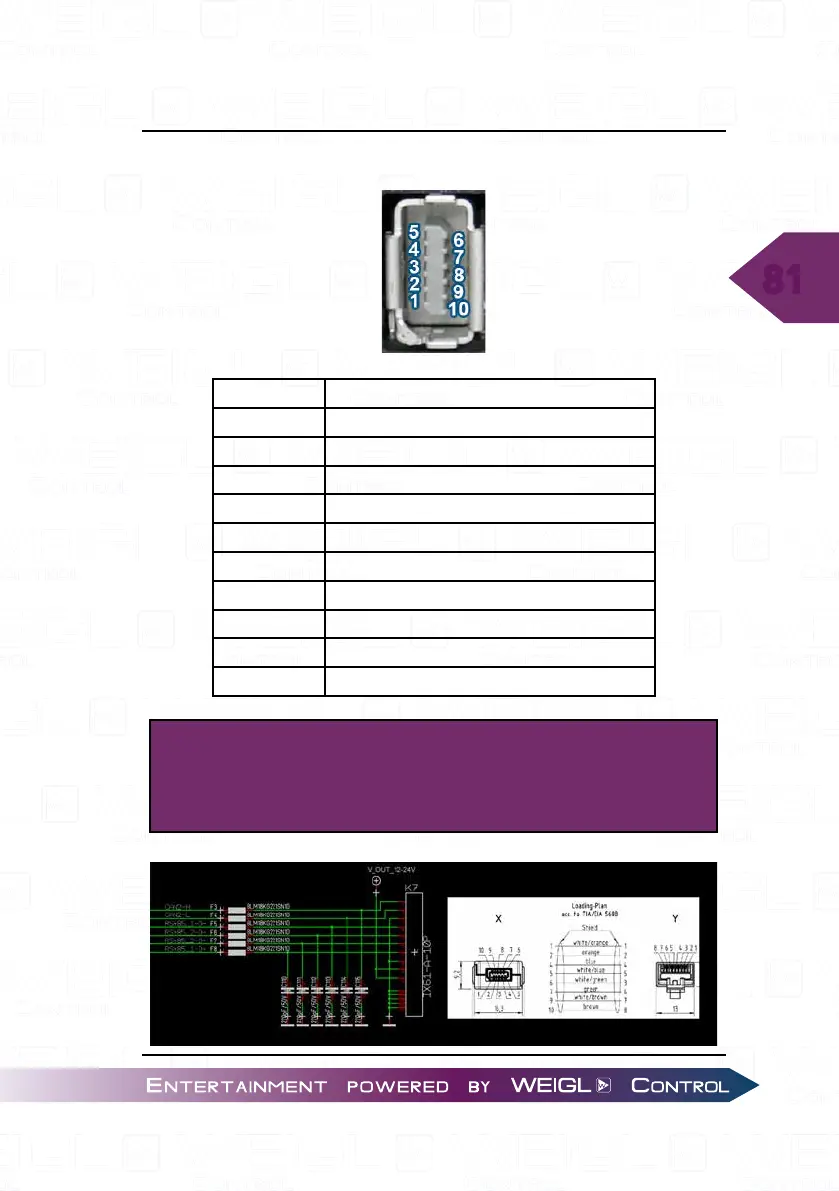

12.5 Pin assignment IX Connector - RS485/ CAN
Connector RS485/ CAN
Pin 1 CAN-HIGH
Pin 2 CAN-LOW
Pin 3 GND
Pin 4 RS485_1_D- / Servo-OUT (Dynamixel, ...)
Pin 5 RS485_2_D- / DMX-IN/DMX-OUT
Pin 6 RS485_2_D+/ DMX-IN/DMX-OUT
Pin 7 RS485_1_D+/ Servo-OUT (Dynamixel, ...)
Pin 8 GND
Pin 9 PS-OUT+: 12V-24V/max. 96 Watt
Pin 10 PS-OUT+: 12V-24V/max. 96 Watt
ATTENTION!
IX Connector Type A
Standardized cable for IX to RJ45 connector:
