WEIGL ProCommander AX - Assignment Procommander AX - Analog in 1-4; Digital in 1-8, Analog out 1-4; Digital OUT; PWM 1-4 (Pin 5-8)

83
ProCommander
®
AX Appendix

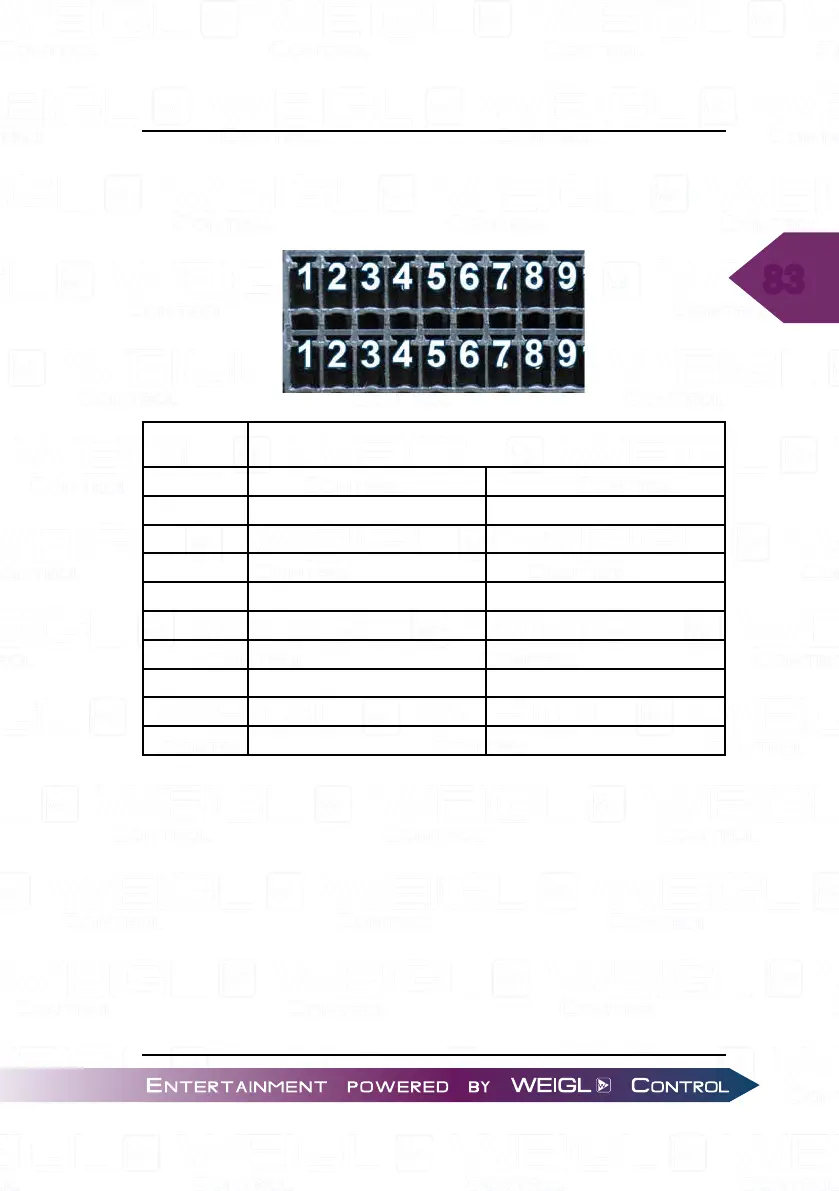

12.7 Assignment ProCommander
®
AX - Analog IN
1-4/ Digital IN 1-8, Analog OUT 1-4 / Digital
OUT/ PWM 1-4 (Pin 5-8)
Analog IN 1-4/ Digital IN 1-8
Analog OUT 1-4/ Digital OUT/ PWM 1-4 (Pin 5-8)
Connector Upper row Lower row
1 Analog Input 1/ Digital Input 1 0-10V Analog Out 1
2 Analog Input 2/ Digital Input 2 0-10V Analog Out 2
3 Analog Input 3/ Digital Input 3 0-10V Analog Out 3
4 Analog Input 4/ Digital Input 4 0-10V Analog Out 4
5 Digital Input 5 Open-Collector/ PWM 1
6 Digital Input 6 Open-Collector/ PWM 2
7 Digital Input 7 Open-Collector/ PWM 3
8 Digital Input 8 Open-Collector/ PWM 4
9 Power-Supply + GND
Maximum current of each analog output: 10mA.
Maximum current of each digital open collector output:
500mA.
