WEIGL ProCommander AX - Digital in 5-8 (Pin 1-4), Digital OUT; PWM

To Next Page

To Previous Page

ProCommander

AX Appendix

12.8 Assignment ProCommander

AX GECKO -

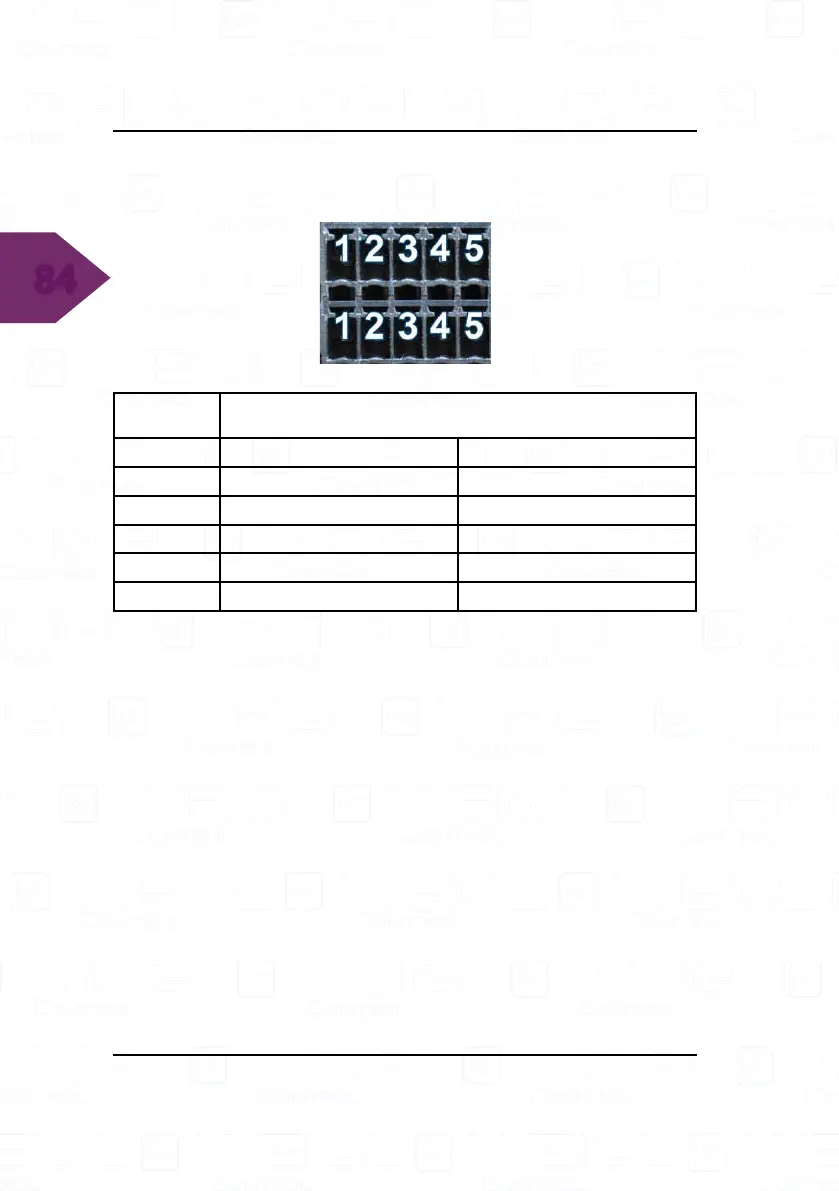

Digital IN 5-8 (Pin 1-4), Digital OUT/ PWM 1-4

Digital IN 1-4

Digital OUT/ PWM 1-4

Connector Upper row Lower row

1 Digital Input 5 Open-Collector/ PWM 1

2 Digital Input 6 Open-Collector/ PWM 2

3 Digital Input 7 Open-Collector/ PWM 3

4 Digital Input 8 Open-Collector/ PWM 4

5 Power-Supply + GND

Maximum current of each digital open collector output:

500mA.
