82
ProCommander
®
AX Appendix

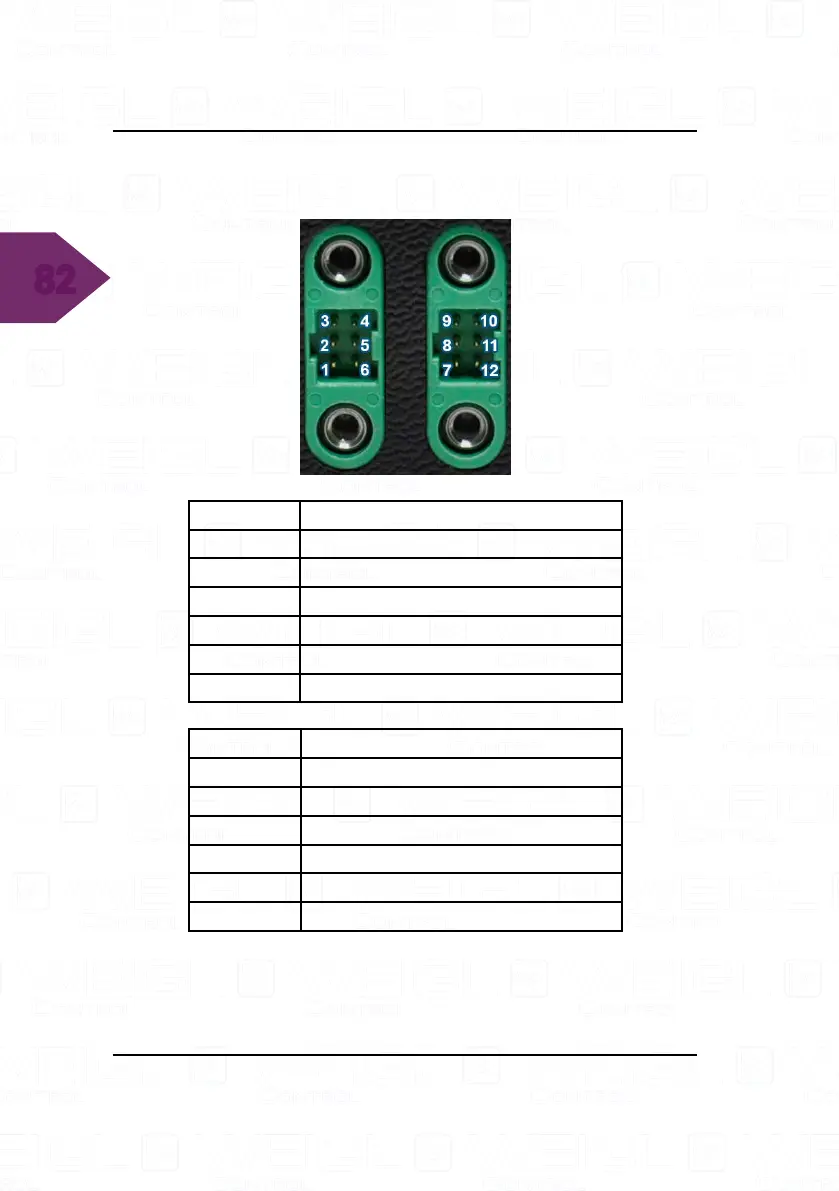

12.6 Pin assignment ProCommander
®
AX GECKO -
GECKO connector
Connector GECKO left (facing from the rear)
Pin 1 PS-OUT+: 12V-24V/max. 96 Watt
Pin 2 GND
Pin 3 RS485 -
Pin 4 RS485 +
Pin 5 GND
Pin 6 PS-OUT+: 12V-24V/max. 96 Watt
Connector GECKO right (facing from the rear)
Pin 7 PS-OUT+: 12V-24V/max. 96 Watt
Pin 8 GND
Pin 9 CAN-LOW
Pin 10 CAN-HIGH
Pin 11 GND
Pin 12 PS-OUT+: 12V-24V/max. 96Watt
