Instructions for Assembly
Item number 116519-0000 Subject to technical modifications
Version 4 23.04.2014 Page 19/47
Cassita II/Cassita II LED

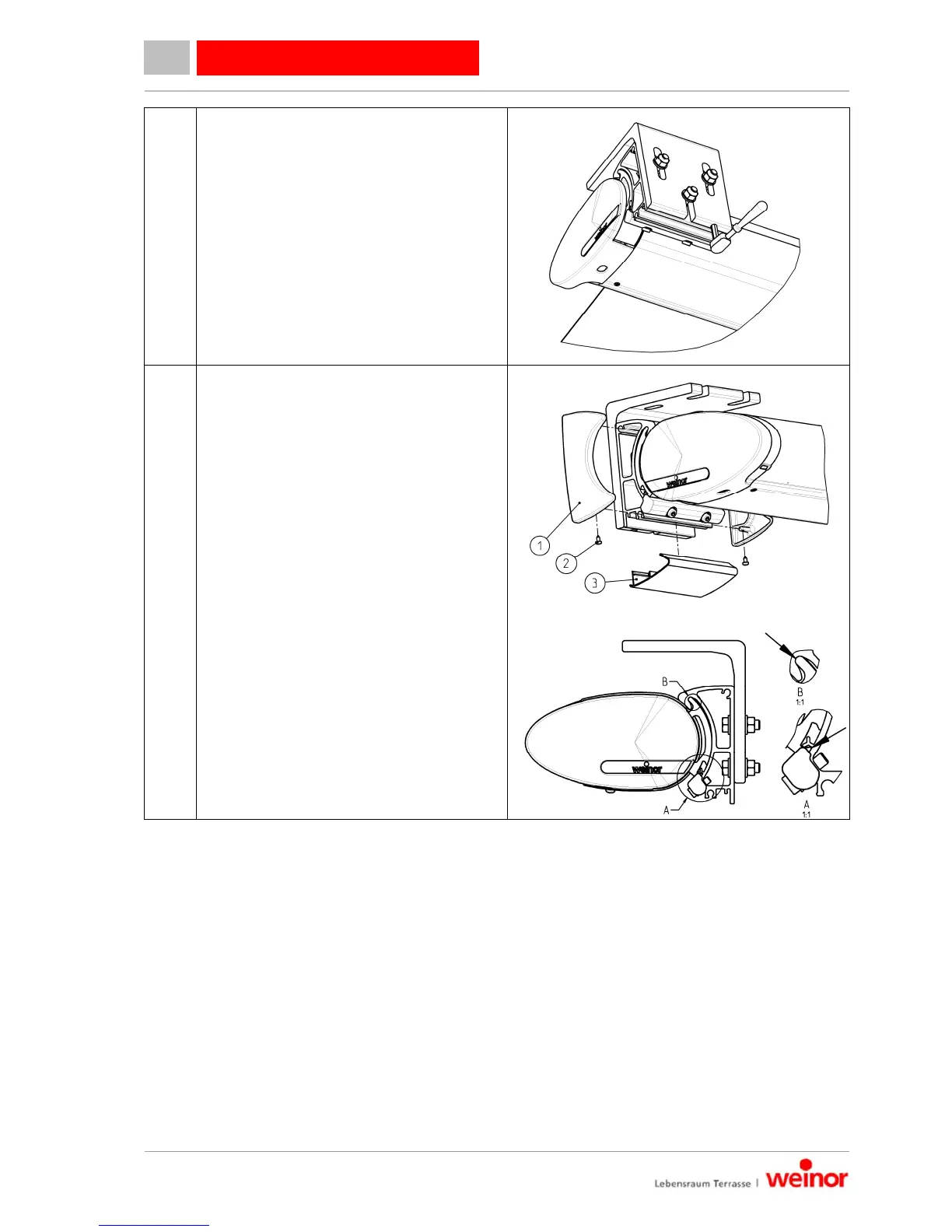

6. Screw wall bracket in place
1. Turn the grub screws clockwise as
far as they will go until they are fully
tight on the awning.
2. Tighten the M12 screws.
7. Mount wall bracket cover caps and
wall bracket cover profile
1. Mount the cover caps (1) using the
screws (2).
2. Mount the wall bracket cover profile
(3).
