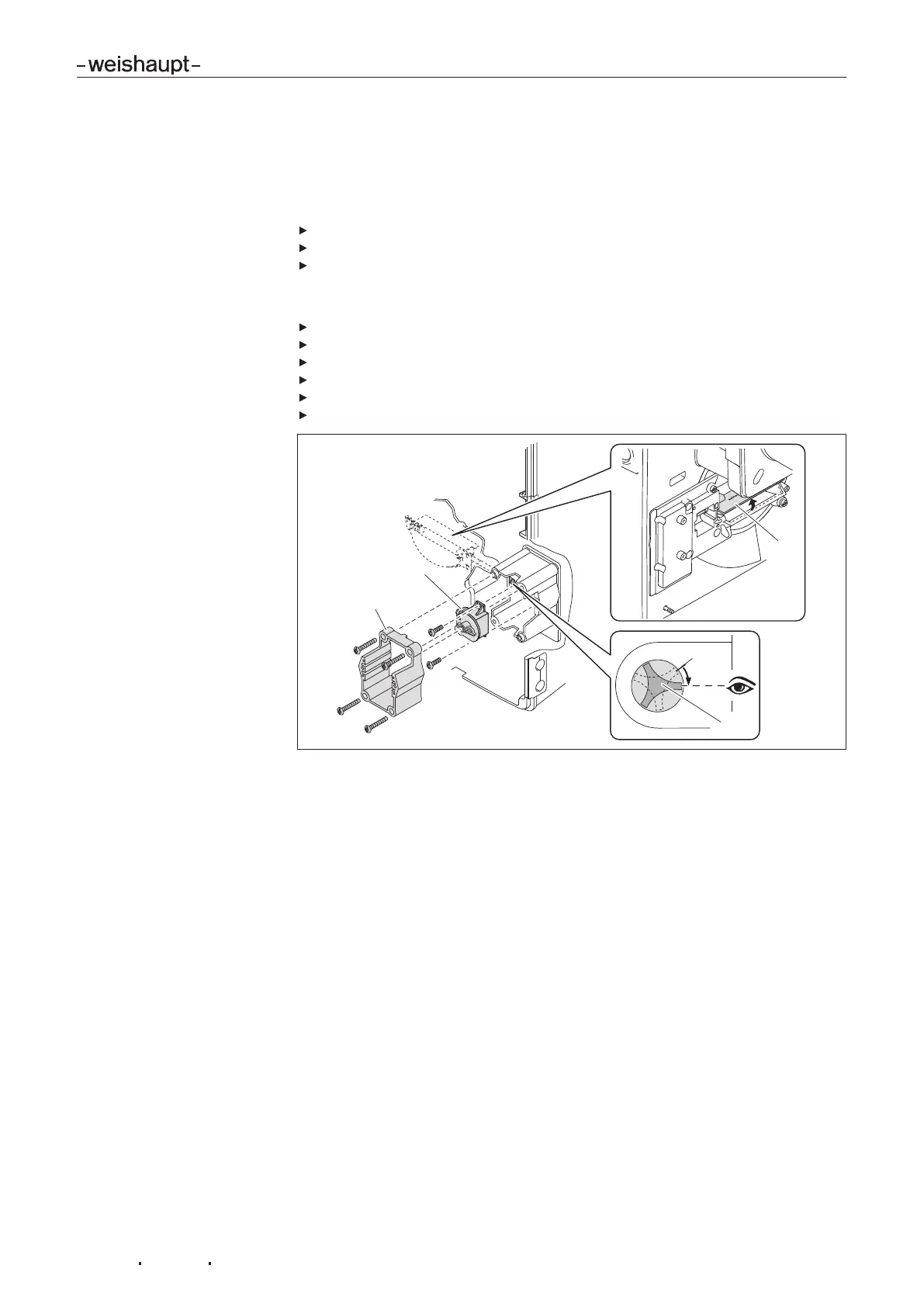

9.10 Removing and refitting angle drive
Observe notes on servicing [ch.9.1].
Removing
Remove air damper actuator [ch.9.9].
Remove frame 1.
Remove angle drive 2.
Refitting
Remove intake housing.
Open air damper 3 until position 4 has been reached and hold tight.
Fit angle drive to shaft.
Secure angle drive.
Mount intake housing.
Fit frame 1.
