Weishaupt WG10 Series User Manual

Installation and operating instruction
Gas burner WG10…/0-D ZM-LN
6 Operation
83300902 1/2019-02 La
32-112
6.2 Display

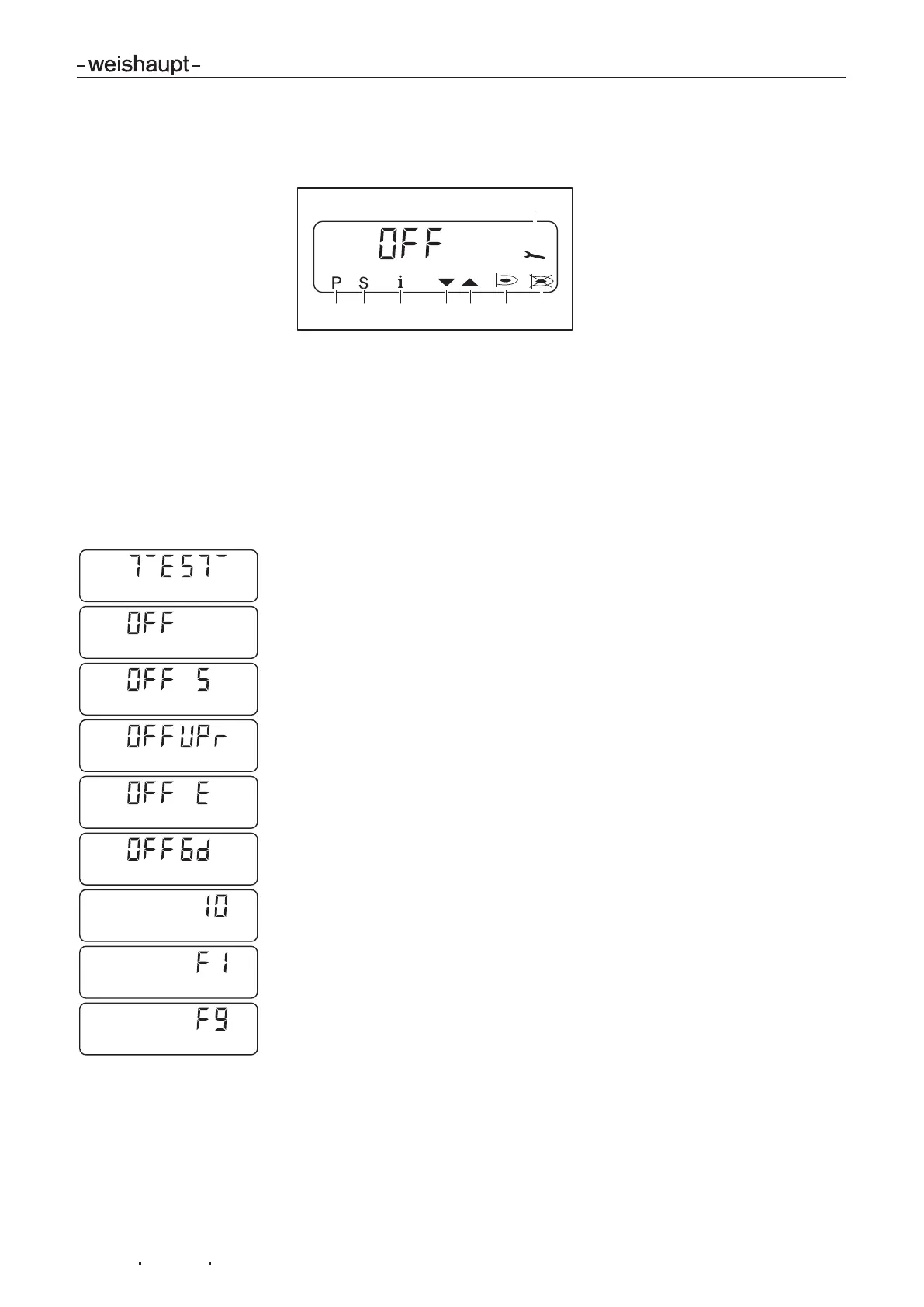

The display shows the current operating statuses and operating data.
1 2 3 4 5 6 7
8
1 Setting level activated
2 Start phase activated
3 Info level activated
4 Actuator runs CLOSED
5 Actuator runs OPEN
6 Burner in operation
7 Lockout
8 Service level activated
Combustion manager performs self test [ch.3.3.4]
Standby, no heat demand
Shutdown via contact X3:7 (plug No. 7)
Unprogrammed condition or programming not completed
Standby, no heat demand, shutdown via fieldbus module
Insufficient gas low gas pressure switch
Current operating phase [ch.3.3.4]
Under-voltage in standby
or internal device error, see error memory
Connection to Fieldbus faulty
Acknowledge error: Press [–] and [+] keys simultaneously.
