Installation and operating instruction
Oil burner WL20/2-C Z
7 Commissioning
83307702 1/2019-04 La
33-80

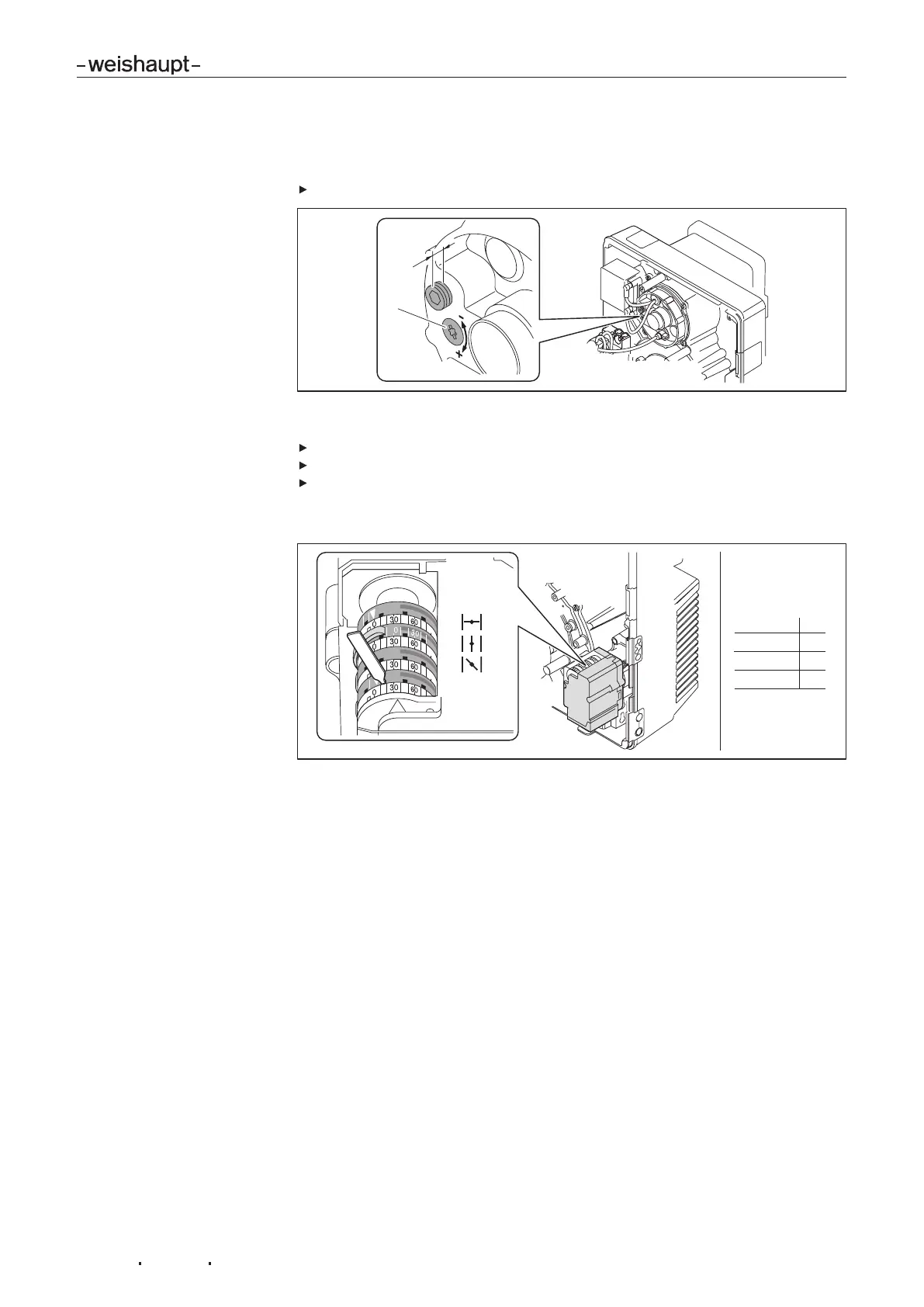

Set diffuser
With dimension X = 0mm the indicating bolt is flush with nozzle assembly cover.
Turn screw 1, until dimension X equals the value determined.
X
1
Set air damper limit switch
Check and if necessary adjust position of limit switch ST0.
Set air damper setting determined at limit switches ST2 and ST1.
Set the switch point MV2-Oil to approx.
1
/3 of the setting movement between
ST1 and ST2.
MV2-Oil=(ST2-ST1)x0.33+ST1
ST0ST2ST1MV2-Oel
ZL-Gas
ST0 0°
ST2
ST1
MV2-Oel
---
---
---
