Weishaupt WL20/2-C Z User Manual

Installation and operating instruction
Oil burner WL20/2-C Z
7 Commissioning
83307702 1/2019-04 La
34-80

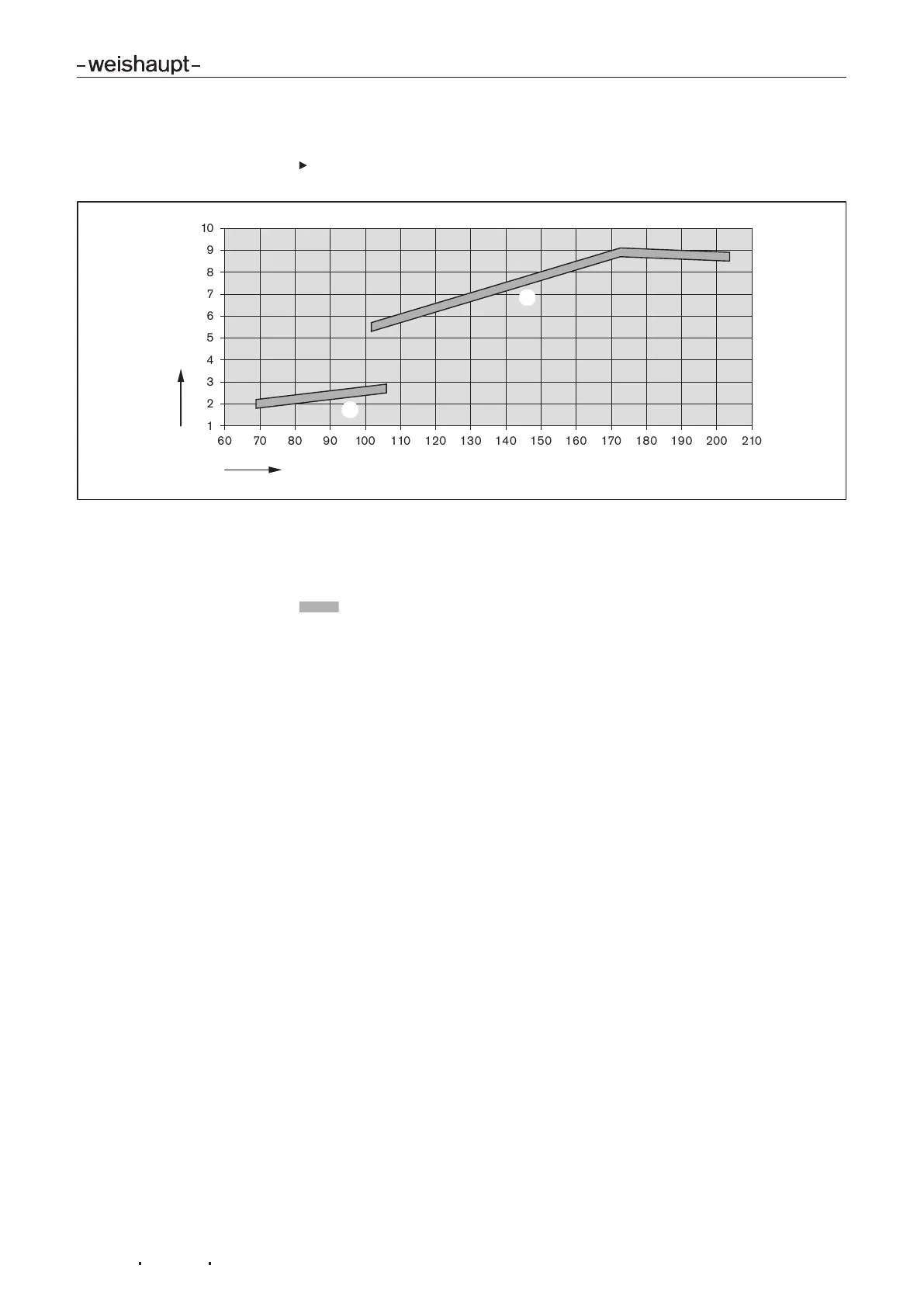

Determine mixing pressure
Determine the mixing pressure required for the preset combustion heat rating
from the diagram and note down.
2
1
3
4
5
6
7
8
9
10
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
210
2
1
3
4
1 Combustion heat rating [kW]
2 Mixing pressure [mbar]
3 Stage 1
4 Stage 2
Guide values, which could vary depend. on comb. chamber resistance.
