Welbilt CREM ONE - ONE 2 B PID VP

ONE
27

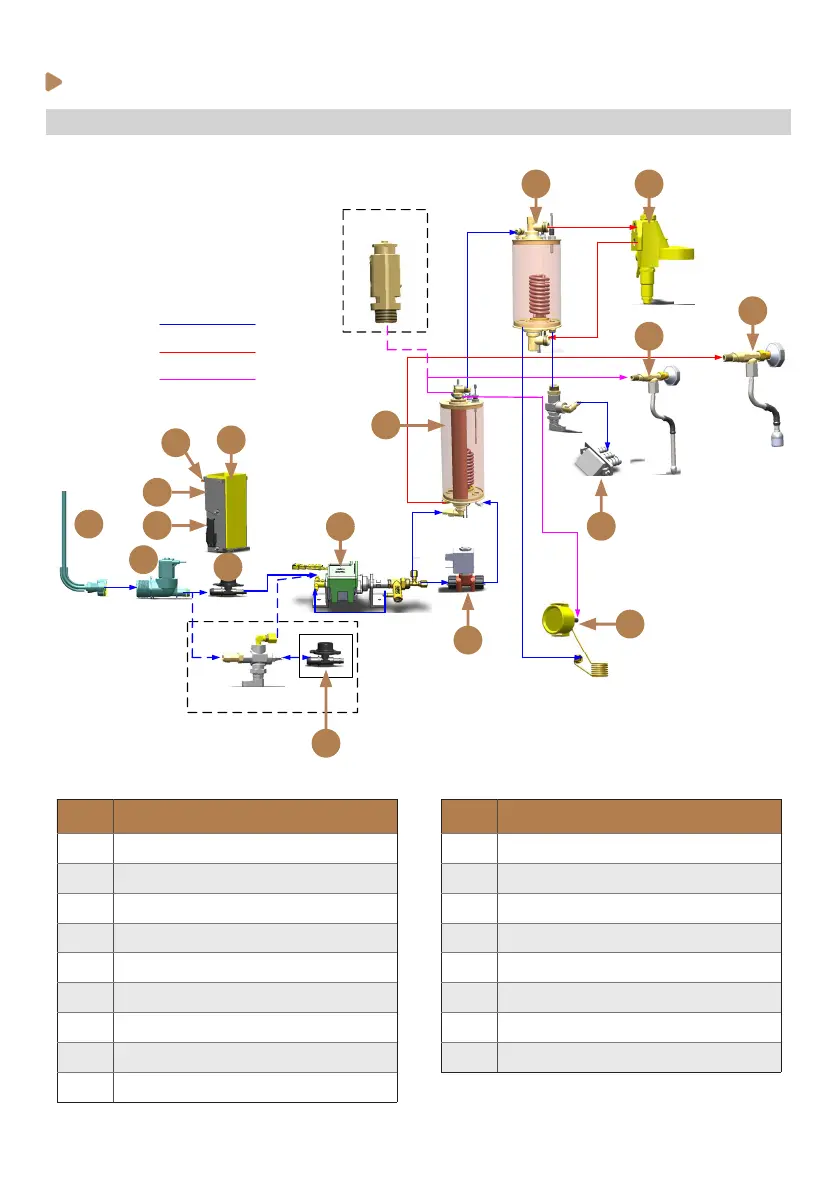

HYDRAULIC DIAGRAMS
· ONE 2B PID VP
Pos. Solution
1 Group
2 Steamer tap ass
3 Hot water tap ass
4 Manometer
5 Solenoid valve
6 Vibration pump
7 Drain water
8 Tank Mode
9 Tank Distributor
Pos. Solution
10 Inlet Valve
11 Inlet Hose
12 Tank
13 Mini switch
14 Tank Divider
15 Capacitive
16 Coee boiler
17 Steam boiler ass
4
ass
Cold water
Hot water
Steamer
16
1
3
2
4
5
6
7
8
9
10
11
12
13
14
15
17
OPC
OPC
