Welbilt CREM ONE - ONE 2 B PID RP-GSP

ONE
28

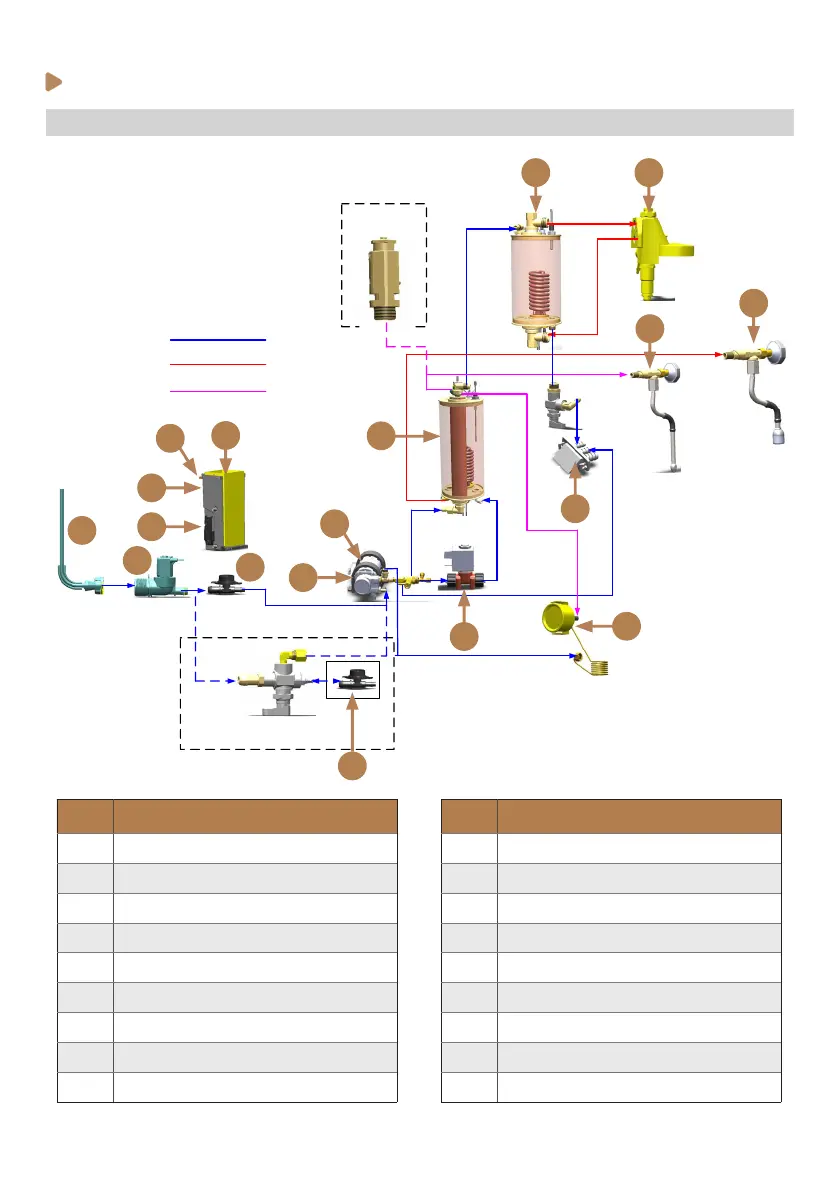

HYDRAULIC DIAGRAMS
· ONE 2B PID RP-GSP
Pos. Solution
1 Group
2 Steamer tap ass
3 Hot water tap ass
4 Manometer
5 Solenoid valve
6 Steam boiler ass
7 Drain water
8 Tank Mode
9 Tank Distributor
Pos. Solution
10 Inlet Valve
11 Inlet Hose
12 Tank
13 Mini switch
14 Tank Divider
15 Capacitive
16 Coee boiler
17 U pump block
18 Rotatory Pump
Cold water
Hot water
Steamer
OPC
16
1
3
2
7
4
6
5
8
9
10
11
12
13
14
15
17
18
OPC
