Welch Allyn Atlas Service Manual

Section 1 - General Information
4 WELCH ALLYN ATLAS PATIENT MONITOR SERVICE MANUAL 6200-43E REV A

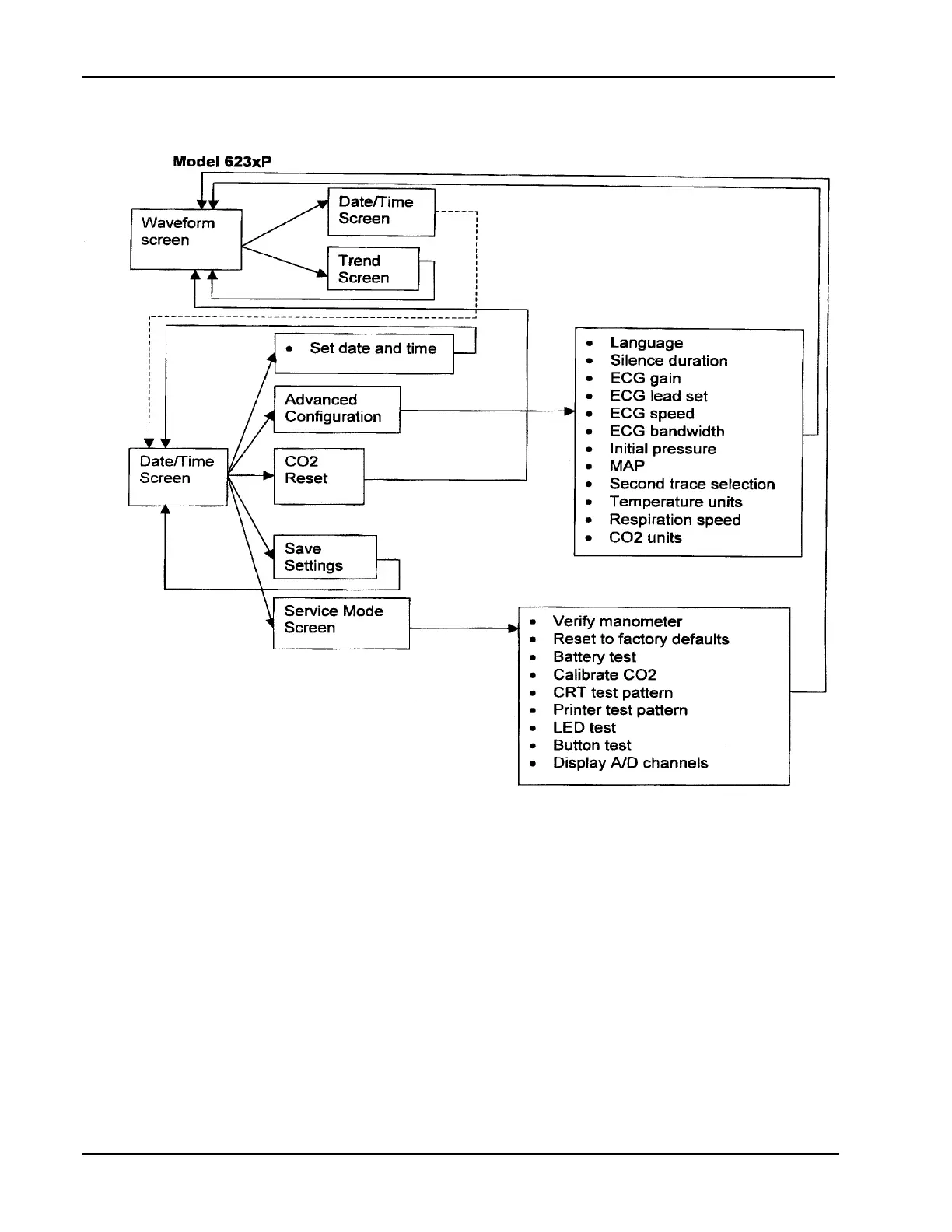

1.4 Main Menu Architecture
Also note that this is for the 623xx system.
• On a 622xP system, delete the CO
2
Reset box, the Calibrate CO
2
item, and the CO
2
units item.
• On a 621xP system, delete the CO
2
Reset box, the Calibrate CO
2
item, the CO
2
units item, Respiration speed item, the Temperature units item, and the Battery
test item.
• On systems without printers (621x0 and 622x0) delete the Printer test pattern item.
*
*
The Display A/D Channels also lets you press <SET> up and down to display additional
sets of information, but does not change the menu page that you are on, just writes
different information on the right side of the screen.
