5 Installation and Electrical Connection
5.1 Installation
• Protect the product from contamination during installation.
• Observe all applicable electrical and mechanical regulations, standards and safety rules.
• Protect the product against mechanical influences.
• Make sure that the sensor is mounted in a mechanically secure fashion.
• Specified torque values must be complied with

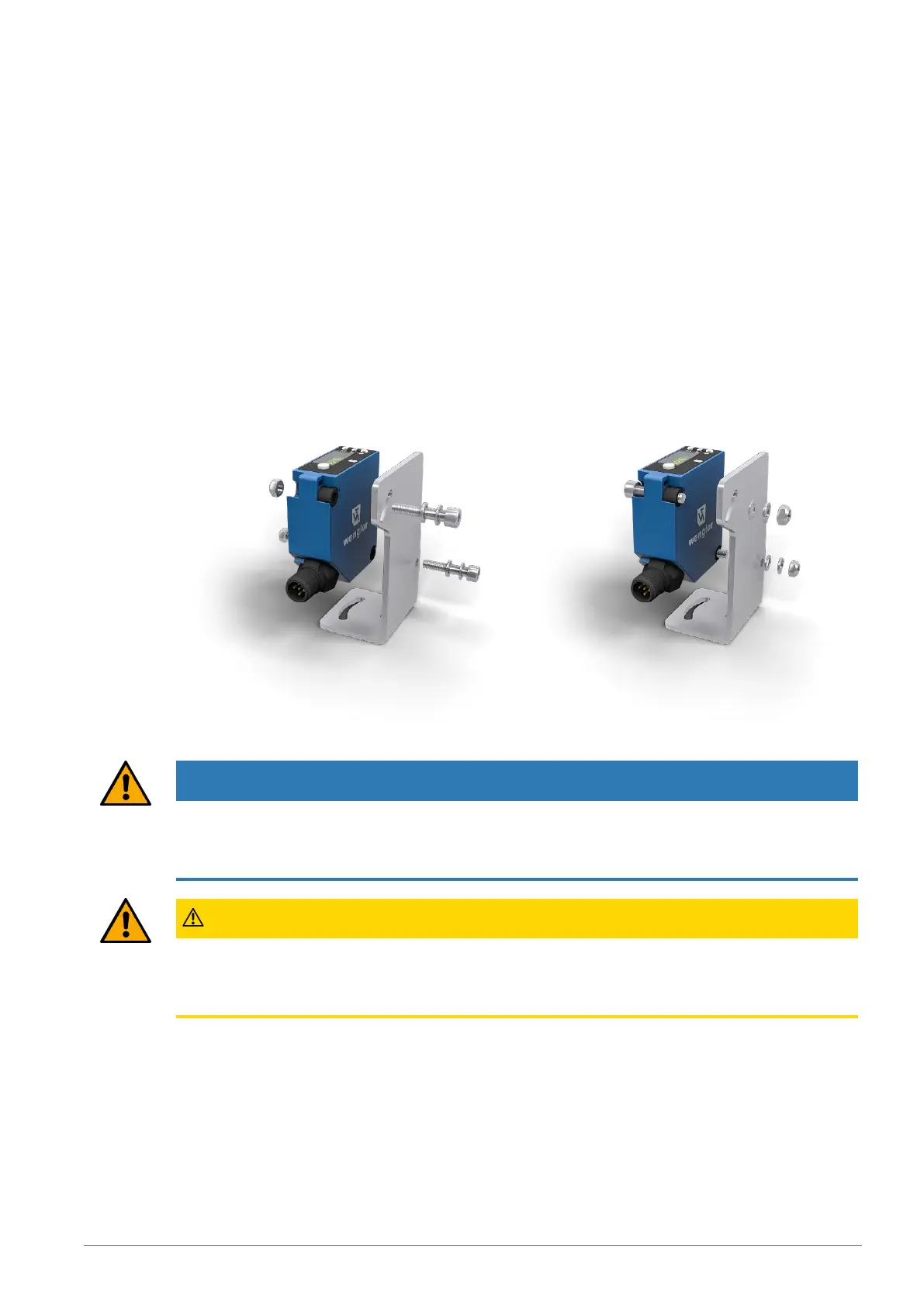

• Insert the supplied spacer sleeves into the designated recesses on the side facing the mounting sur-
face.
• Install the sensor by means of the mounting hole with M4 screws (included in the scope of delivery).
• Do not exceed the maximum tightening torque of 0.5Nm.
NOTICE
Risk of property damage in case of improper installation!
The product may be damaged!
à Comply with installation instructions.
CAUTION
Risk of personal injury or property damage during installation!
Personal injury and damage to the product may occur.
à Ensure a safe installation environment.
See also
2 Technical Data [}10]
5.2 Electrical Connection
• Wire the sensor in accordance with the connection diagram.
• Switch on the supply voltage (see section Technical Data [}10]).
