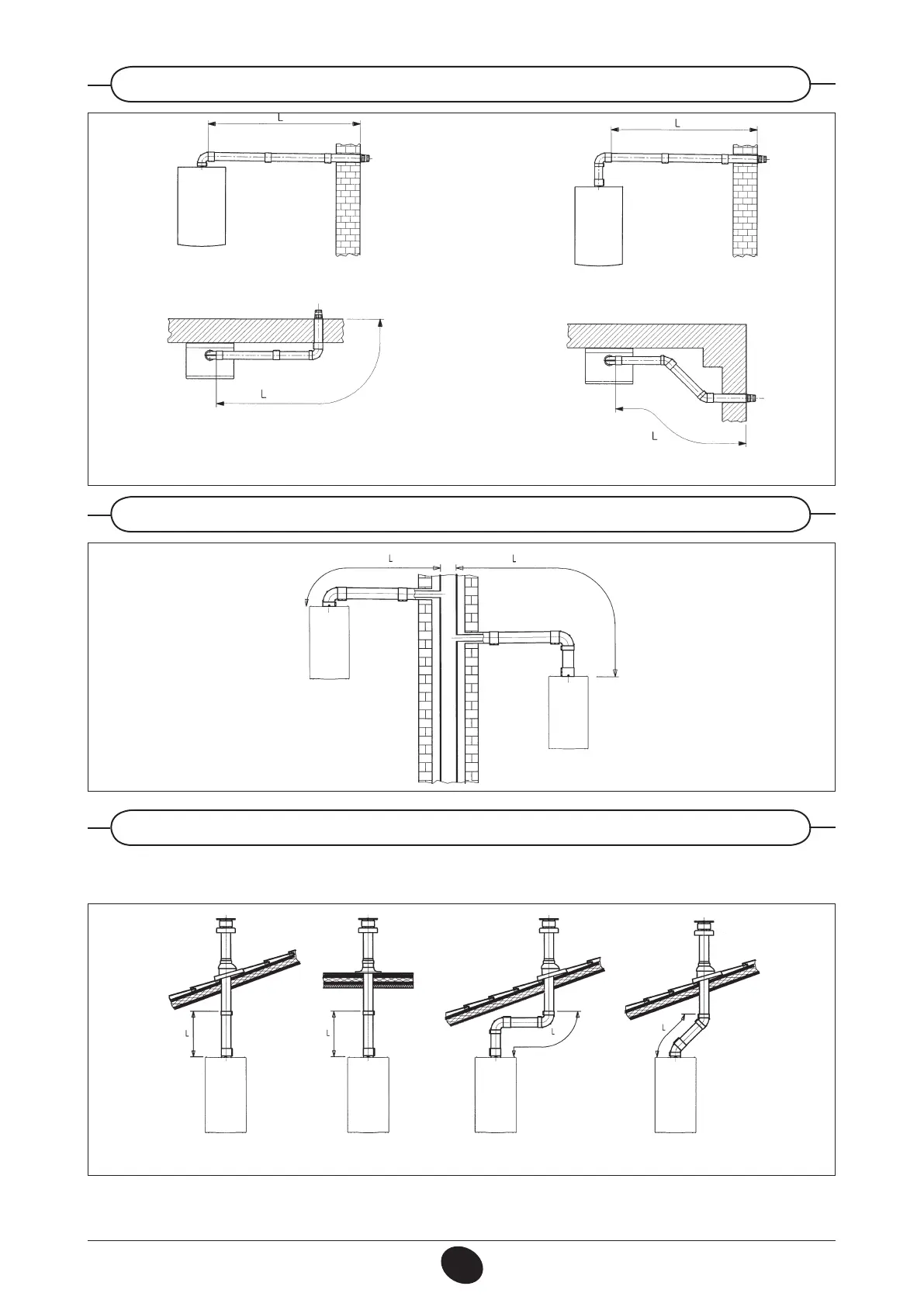

16.1 HORIzONTAL FLUE INSTALLATION OPTIONS
0503_0907/CG1640
16.2 LAS FLUE DUCT INSTALLATION OPTIONS
16.3 VERTICAL FLUE INSTALLATION OPTIONS
This type of installation can be carried out on either a at or a pitched roof by tting a ue terminal and a special weathering
surround with sleeve (both available on request).
0503_0908/CG1641
L max = 4 m L max = 4 m L max = 2 m L max = 3 m
L max = 5 m
L max = 5 m
L max = 4 m
L max = 4 m
L max = 5 m
0512_2001
For detailed installation instructions, consult the technical data provided with the accessories.
