Westen pulsar D - Wiring Diagrams and Technical Data

29
926.323.1 - GB
INSTRUCTIONS FOR FITTERS

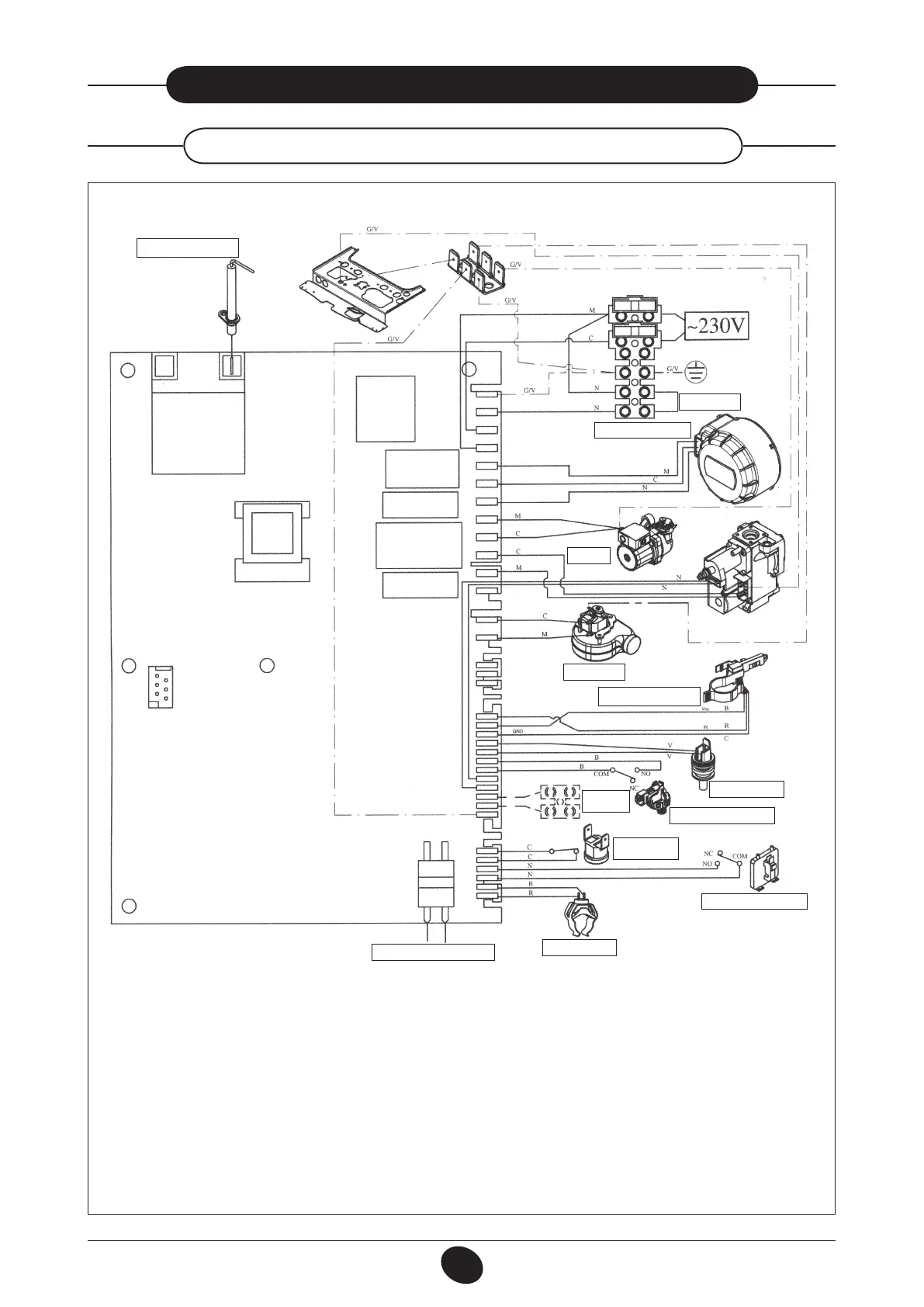

33. WIRING DIAGRAM
24 F
Cable colours
C = Light blue
M = Brown
N = Black
R = Red
G/V = Yellow/Green
B = White
V = Green
0809_1705 / CG_2075
DETECTION/IGNITION
ELECTRODE
THERMOSTAT
THREE-WAY VALVE
PUMP
FAN
DOMESTIC WATER
PRIORITY SENSOR
DHW NTC SENSOR
EXTERNAL
PROBE
HYDRAULIC
PRESSURE SWITCH
SAFETY
THERMOSTAT
AIR PRESSURE SWITCH
CH NTC SENSOR.
AMB. THERM./REMOTE CONTR
