Westen pulsar D User Manual

9
926.323.1 - GB
INSTRUCTIONS FOR FITTERS
13. INSTALLAzIONE DELLA CALDAIA
971125_0201
Figura 5
1: uscita acqua calda sanitaria G 1/2
2: entrata acqua fredda sanitaria G 1/2
3: ritorno impianto di riscaldamento G 3/4
4: mandata riscaldamento G 3/4
5: entrata gas alla caldaia G 3/4
020418_1000
ASSE SCARICO CON CURVA COASSIALE
Forare con punta di trapano Ø 12, montare i tasselli e i cancani in dotazione
LARGHEZZA CALDAIA 600
ENTRATA SANITARIO
USCITA SANITARIO RITORNO RISCALDAMENTO
MANDATA RISCALDAMENTO
ENTRATA GAS
ASSE SCARICO FLUSSO FORZATO
ALTEZZA CALDAIA 950
14. INSTALLING THE BOILER
After deciding the exact location of the boiler, x the template to the wall.
Connect the system to the gas and water inlets present on the lower bar of the template. Fit two G3/4 taps (delivery and
return) on the central heating circuit; these taps make it possible to carry out important operations on the system without
draining it completely. If you are either installing the boiler on an existing system or replacing one, as well as the above,
t a settling tank under the boiler on the system return line in order to collect any deposits and scale circulating in the
system after ushing. After xing the boiler to the template, connect the ue and air ducts, supplied as accessories, as
described in the following sections.
If the model 24 - 1.24 - 1.14 natural draught boiler is installed, connected it to the ue with a metal pipe resistant to normal
mechanical stress, heat, products of combustion and relative condensate.

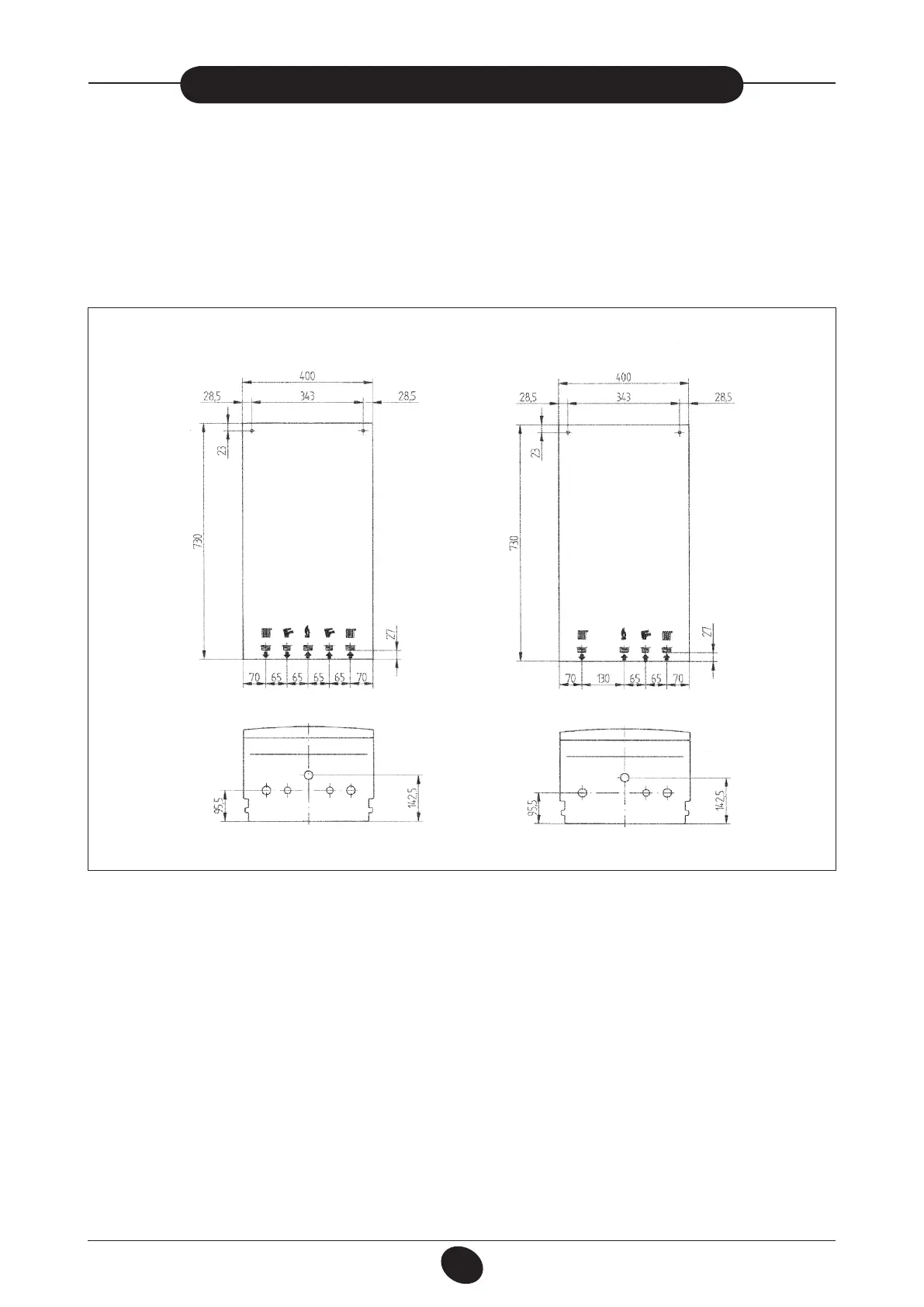

Figure 4
0807_2103 / CG_2011
WARNING
Carefully tighten the water connections to the nipples of the boiler (maximum tightening torque 30 Nm).
24 F - 24 1.24 F - 1.14 F
