INSTRUCTIONS FOR FITTERS
24
Cable colours
C = Light blue
M = Brown
N = Black
R = Red
G/V = Yellow/Green
B = White
V = Green
0809_1706 / CG_2076

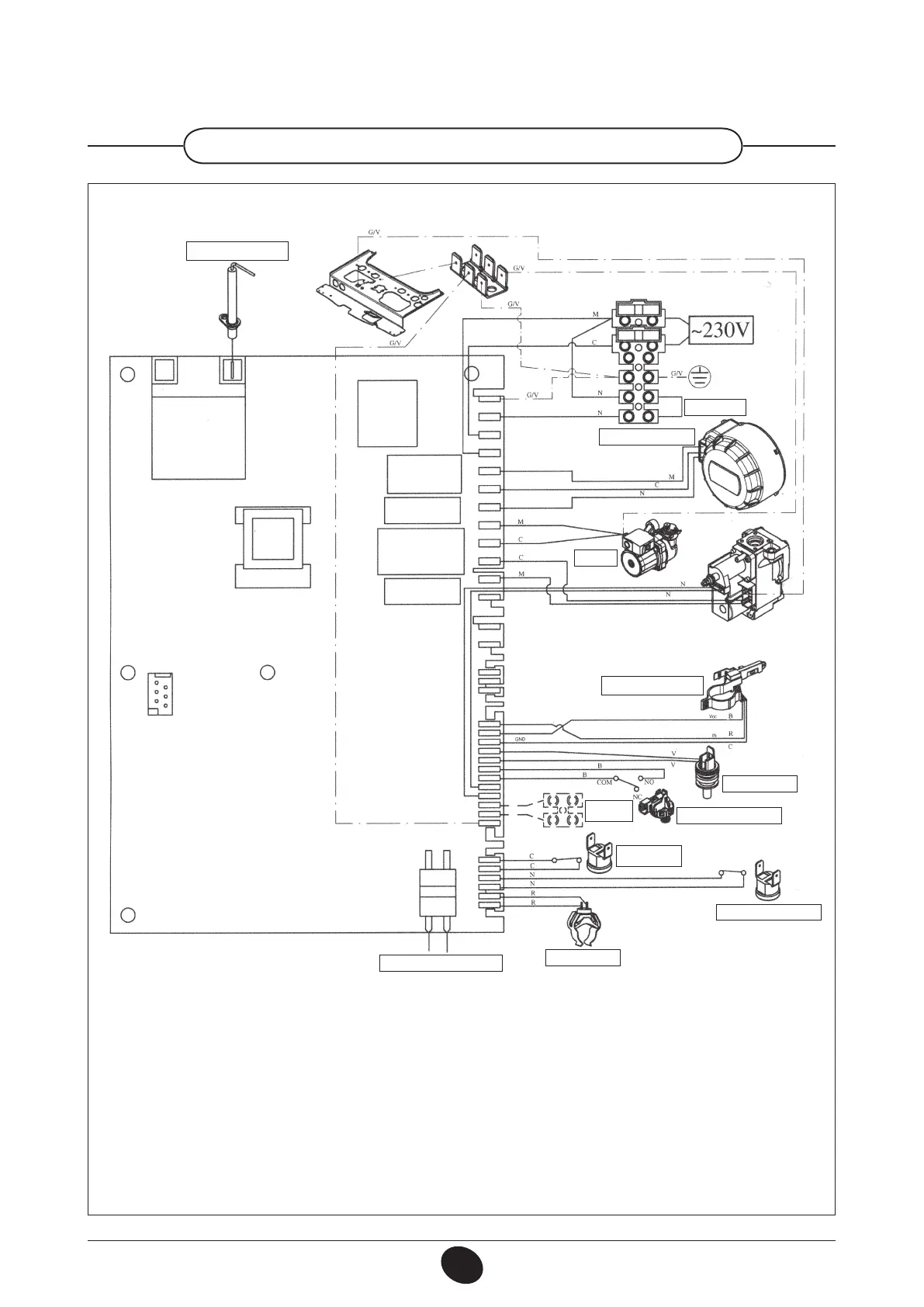

DETECTION/IGNITION
ELECTRODE
THERMOSTAT
THREE-WAY VALVE
PUMP
DOMESTIC WATER
PRIORITY SENSOR
DHW NTC SENSOR
EXTERNAL
PROBE
HYDRAULIC
PRESSURE SWITCH
SAFETY
THERMOSTAT
FUMES THERMOSTAT
CH NTC SENSOR.
AMB. THERM./REMOTE CONTR
