Westen Quasar E - Page 153

153
S E C T I O N D
7113156.01 (1-05/13)

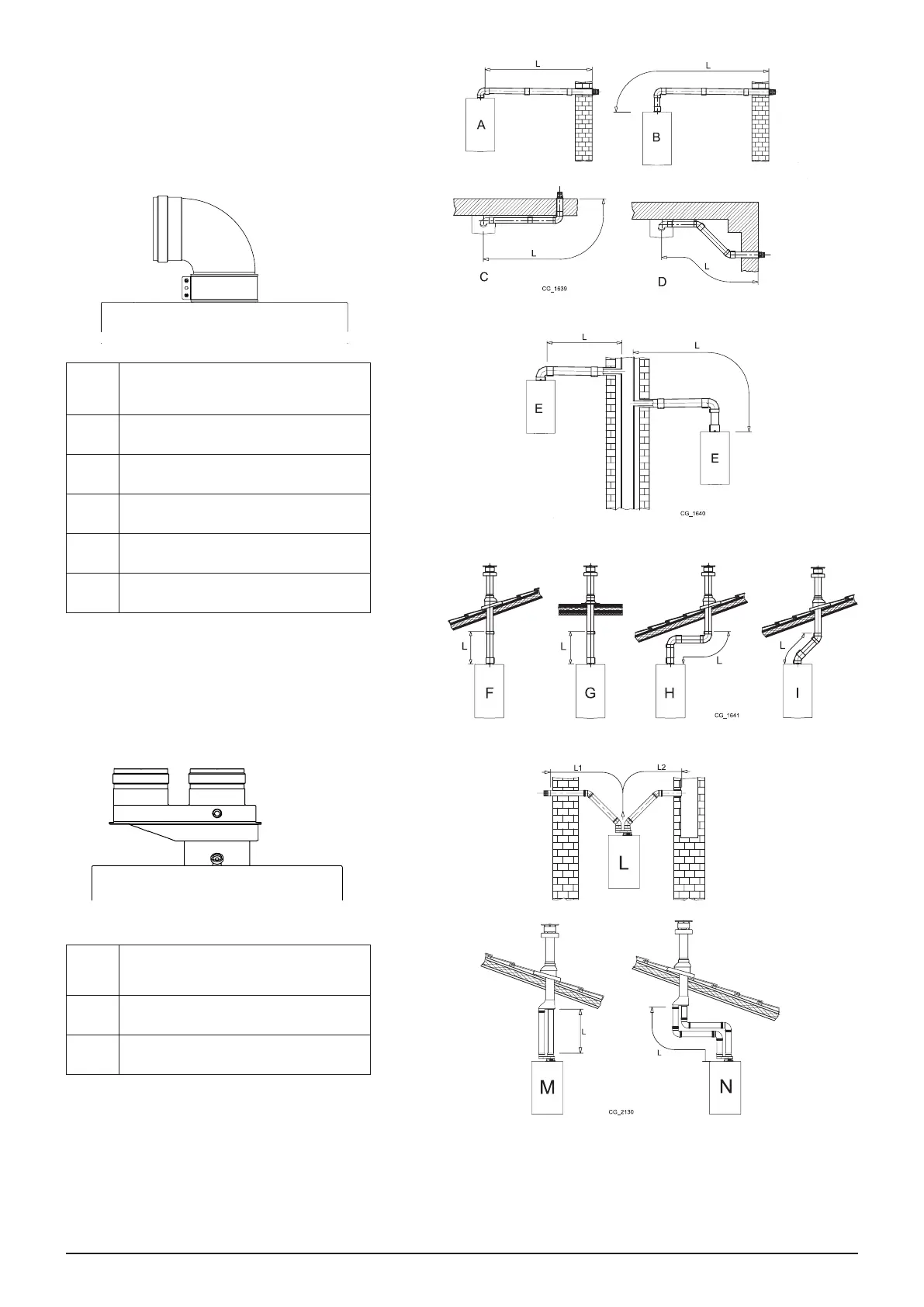

A
B
Lmax = 5 m - Ø 60/100 mm
C D
Lmax = 4 m - Ø 60/100 mm
E
Lmax = 5 m - Ø 60/100 mm
F G
Lmax = 4 m - Ø 60/100 mm
H
Lmax = 2 m - Ø 60/100 mm
I
Lmax = 3 m - Ø 60/100 mm
L
L2 max = 22 m - Ø 80 mm
L1 max = 8 m - Ø 80 mm
M
L max = 8 m - Ø 80 mm
N
L max = 7 m - Ø 80 mm
