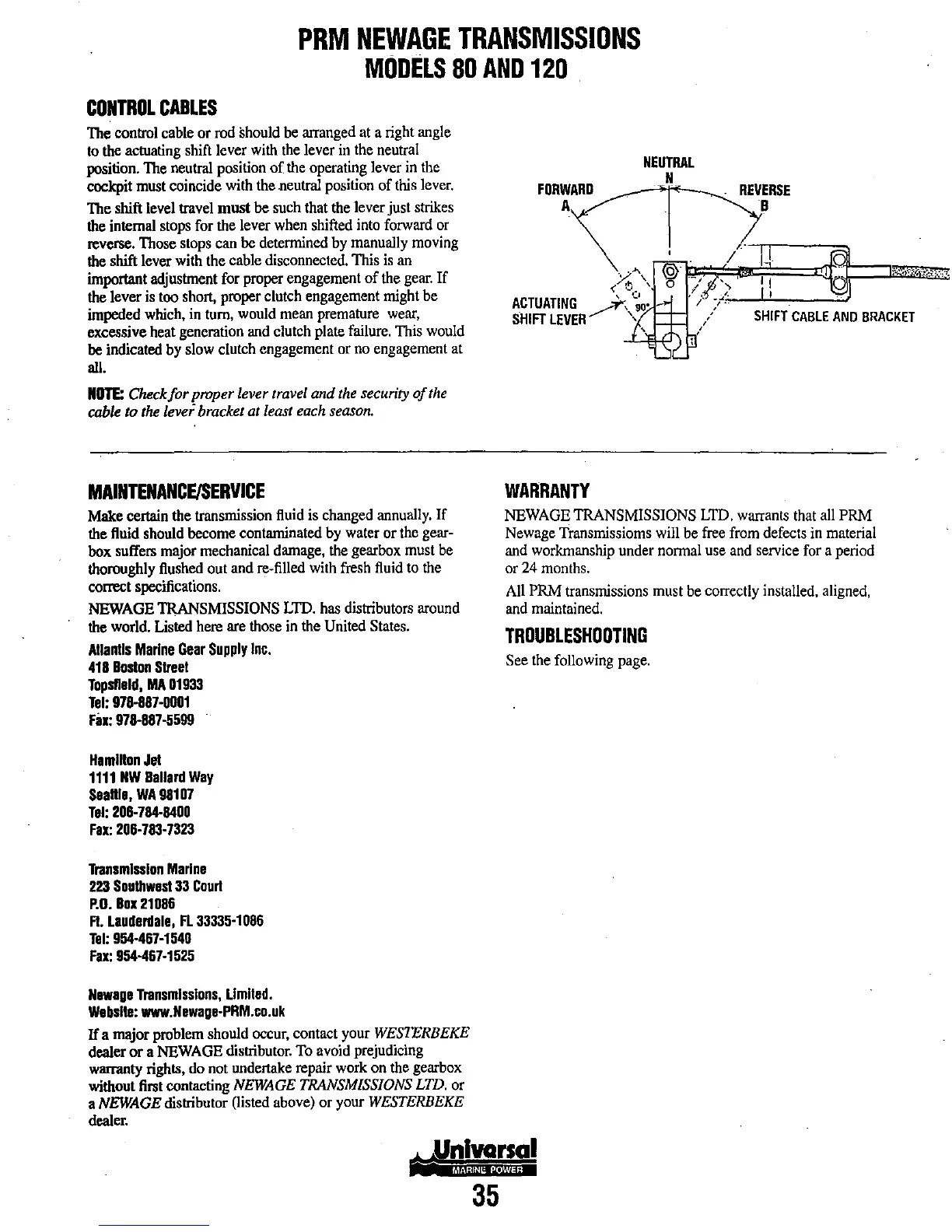

PRM NEWAGE TRANSMISSIONS
MODELS 80 AND 120
CONTROL CABLES
The control cable or rod should be arranged at a right angle
to the actuating shift lever with the lever in the neutral
position. The neutral position of the operating lever in the
cockpit must coincide with the neutral position of this lever.
The shift level travel must be such that the lever just strikes
the internal stops for the lever when shifted into forward or
reverse. Those stops can be determined by manually moving
the shift lever with the cable disconnected. This is an
important adjustment for proper engagement of the gear. If
the lever is too short, proper clutch engagement might be
impeded
which, in tum, would mean premature wear,
excessive heat generation and clutch plate failure. This would
be indicated by slow clutch engagement or no engagement at
all.
NOTE: Checkfor proper lever travel and the security of the
cable ta the level bracket at least each season.
MAINTENANCE/SERVICE
Make certain the transmission fluid is changed annually, If
the fluid should become contaminated by water or the gear-
box suffers major mechanical damage, the gearbox must be
thoroughly flushed out and re-filled with fresh fluid to the
correct specifications.
NEWAGE TRANSMISSIONS LID. has distributors around
the world. Listed here are those in the United States.
Atlantis Marine Gear Supply Inc,
418 Boston Street
Topsfield, MA 01933
Tel: 978-887-0001
Fal: 978-887-5599
HamlHonJet
1111 NW Ballard Way
SeaHle, WA 98107
Tel: 206-784-8400
Fal: 206-783-7323
Transmission Marine
223 Southwest 33 Cour!
P.O. BOl21086
R. Lauderdale, FL 33335-1086
Tel: 954-467-1540
Fu: 954-467-1525
Newage Transmissions, Limited.
Website: www.Newage-PRM.co.uk
If a major problem should occur. contact your WESTERBEKE
dealer or a NEWAGE distributor. To avoid prejudicing
warranty rights, do not undertake repair work on the gearbox
without first contacting NEWAGE TRANSMISSIONS LTD. or
a NEWAGE distributor (listed above) or your WESTERBEKE
dealer.
35
NEUTRAL
N
R~~D- ~.,.
<./~ \ 0 --; '')' I I
, ,-, / , '''-' _..w...' __ -=:;
ACTUATING /""\;0' ;';t SHIFT CABLE AND BRACKET
SHIFT LEVER ' ,/
WARRANTY
NEWAGE TRANSMISSIONS LTD. warrants that all PRM
Newage Transmissioms will be free from defects in material
and workmanship under normal use and service for a period
or 24 months.
All PRM transmissions must be correctly installed. aligned.
and maintained.
TROUBLESHOOTING
See the following page.
