Western MVP PLUS Series User Manual

Lit. No. 27366, Rev. 01 February 15, 2008
20

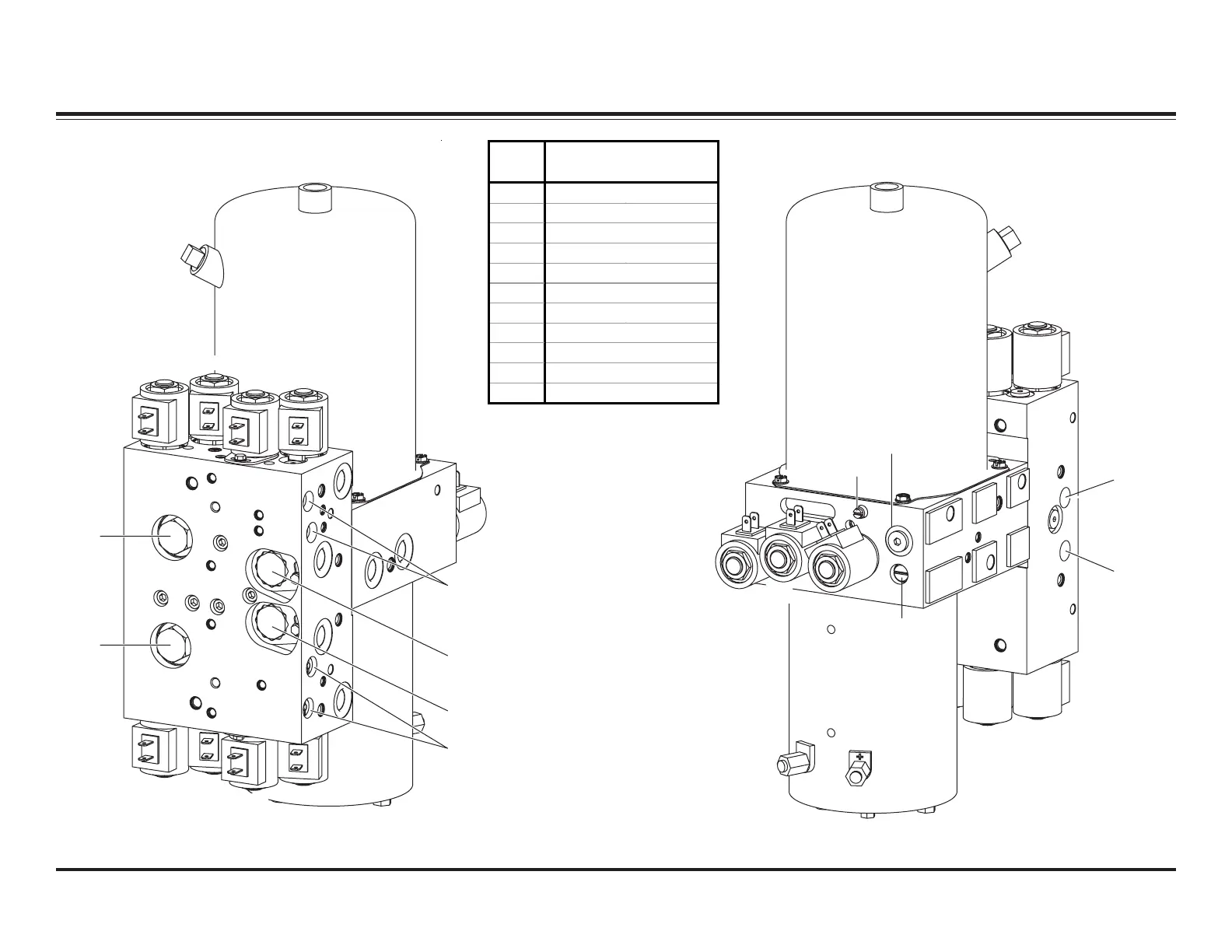

SYSTEM OVERVIEW – HYDRAULIC
VALVE LOCATION
S4
S5
S6
S7
DS Base-End
Relief Valves
PS Base-End
Relief Valves
DS
Rod-End
Relief
Valve
PS
Rod-End
Relief
Valve
Pump Relief
Valve
Pump Pressure
Test Port
Quill
DS
Rod-End
Check
Valve
DS Base-End
Check Valve
PS
Rod-End
Check
Valve
PS Base-End
Check Valve
S8
S9
S10
S11
S1
S2
S3
Valve Type
Wire
Colors
S1
SV08-2004 White & Red
S2
SVCV08-20 Green & Red
S3
SV08-2004 Blue & Red
S4
SVCV08-20 Tan & Red
S5
SV08-2004 Black & Red
S6
SF08-2015 Yellow & Red
S7
SVCV08-20 Brown & Red
S8
SVCV08-20 Grey & Red
S9
SV08-2004 White & Red
S10
SF08-2015 Green & Red
S11
SVCV08-20 Orange & Red
