Lit. No. 27366, Rev. 01 February 15, 2008
29
Scoop/Retract (Vee) Blade
Position
The two round buttons located to the
left and right of the RAISE button
move both wings at the same time
into the blade positions described in
the following table:
Function Description of Operation
SCOOP
Press this button to extend both wings forward into the scoop position.
Function times out after 5.0 seconds.
RETRACT
(VEE)
Press this button to draw both wings into the fully retracted (vee) position.
Function times out after 3.0 seconds.
Function Description of Operation
L WING
Press the round WING button on the left side of the control to move the
left wing. The first time the button is pressed after the control is turned ON
or another function is used, the wing will extend. Repeated use of the
same button, without using another function, results in movement in the
opposite direction from the previous movement. Function times out after
3.0 seconds.
R WING
Press the round WING button on the right side of the control to move the
right wing. The first time the button is pressed after the control is turned
ON or another function is used, the wing will extend. Repeated use of the
same button, without using another function, results in movement in the
opposite direction from the previous movement. Function times out after
3.0 seconds.
SCOOP
FLOAT ON / OFF
VEE
RAISE
LOWER
WING
LR
WING

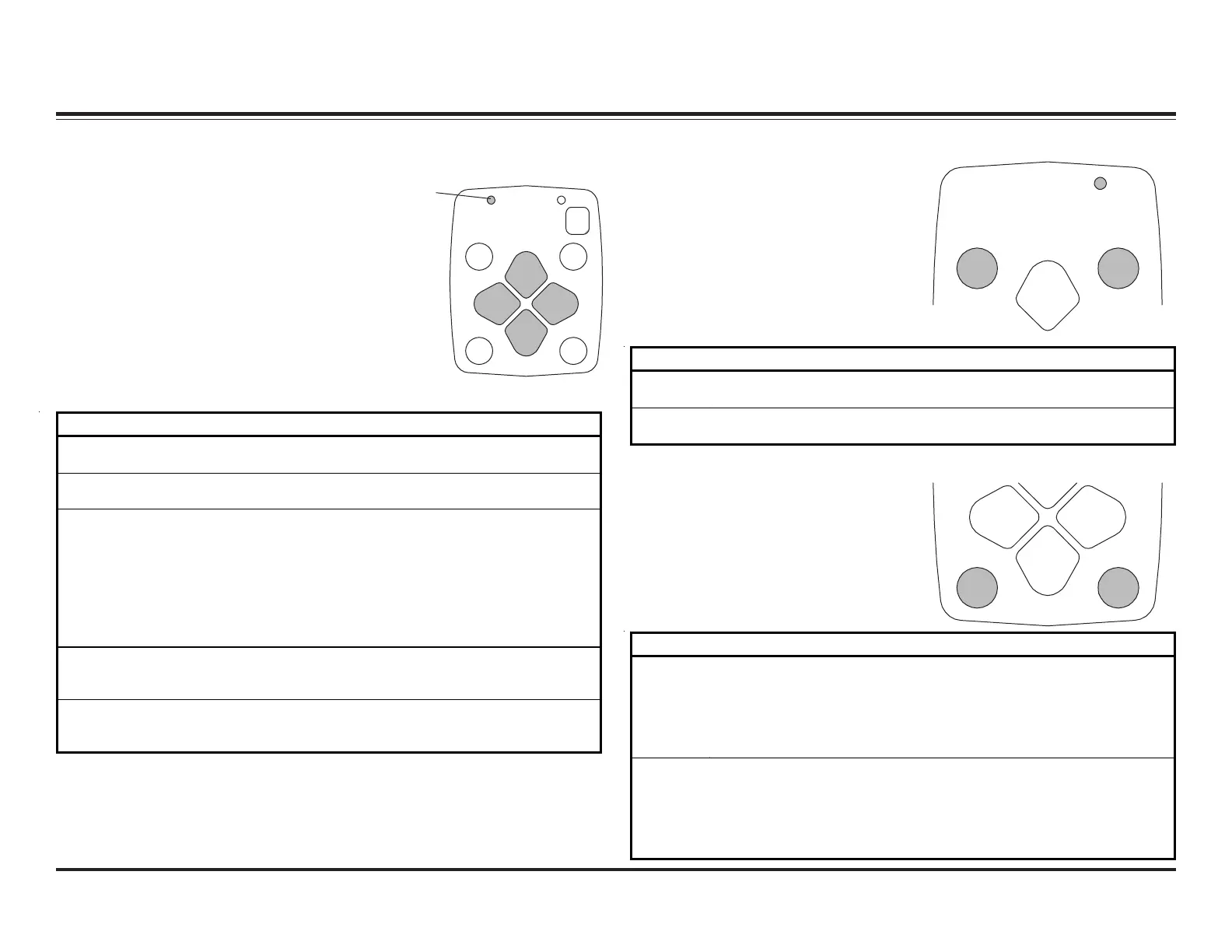

Control Functions
Raise, Lower, Float, Angle
The four diamond-shaped buttons in
the center of the control face, when
pressed, will result in the movements
described in the table:
SYSTEM OVERVIEW – CONTROLS
Wing Positions
The two round buttons located to the
left and right of the LOWER button
move either wing independently of
the other as described in the
following table:
Float Light
(green)
LOWER
WING
SCOOP
LR
FLOAT ON / OFF
VEE
WING
RAISE
Function Description of Operation
RAISE
Press this button to raise the snowplow and cancel the FLOAT mode.
Function times out after 4.0 seconds.
LOWER
Press this button to lower the snowplow. Release the button to stop blade
at desired height.
FLOAT
Press the LOWER button and hold 3/4 second to activate this mode. The
FLOAT indicator light in the upper left corner of the control face will
illuminate. The blade will lower to the ground surface and follow the
contour of the surface as it dips or raises. Function does not time out, but
control will shut down after 20 minutes of nonuse.
Press RAISE button momentarily to cancel FLOAT. Angling left or right will
interrupt (stop) the FLOAT function while the blade angles. FLOAT will
resume when angling is complete.
L
(Angle
Left)
With wings in a straight line, press the L button to move both wings to the
angle left position to cast snow to the driver's left side. The left wing
retracts while the right wing extends. Function times out after 3.0 seconds.
R
(Angle
Right)
With wings in a straight line, press the R button to move both wings to the
angle right position to cast snow to the driver's right side. The right wing
retracts while the left wing extends. Function times out after 3.0 seconds.
Excerpts taken from UltraMount
®
Owner's Manual (Lit. No. 44230, Rev. 06).
