Lit. No. 27366, Rev. 01 February 15, 2008
31
Function Description of Operation
SCOOP
Move the control lever toward the word SCOOP on the control face to
extend both wings forward into the scoop position. Function times out
after 5.0 seconds.
RETRACT
(VEE)
Move the control lever toward the word RETRACT (VEE) on the control
face to draw both wings into the fully retracted (vee) position. Function
times out after 3.0 seconds.
Function Description of Operation
L WING
Move the control lever toward the left side of LOWER on the control face
to move the left wing. The first time the lever is moved into the slot after
the control is turned ON or another function is used, the wing will extend.
Repeated use of lever in the same slot, without using another function,
results in movement in the opposite direction from the previous
movement. Function times out after 3.0 seconds.
R WING
Move the control lever toward the right side of LOWER on the control
face to move the right wing. The first time the lever is moved into the slot
after the control is turned ON or another function is used, the wing will
extend. Repeated use of lever in the same slot, without using another
function, results in movement in the opposite direction from the previous
movement. Function times out after 3.0 seconds.
Function Description of Operation
RAISE
Move the control lever toward the top of the control body to raise the
snowplow and cancel the FLOAT mode. Function times out after 3.0
seconds.
LOWER
Move the control lever toward the bottom of the control body to lower the
snowplow. Release the lever to stop blade at desired height.
FLOAT
Move the control lever to the LOWER position and hold 3/4 second to
activate this mode. The FLOAT indicator light in the upper right corner of
the control face will illuminate. The blade will lower to the ground surface
and follow the contour of the surface as it dips or raises. Function does
not time out; however, control will shut down after 20 minutes of nonuse.
Move lever to the RAISE position momentarily to cancel FLOAT. Angling
left or right will interrupt (stop) the FLOAT function while the blade angles.
FLOAT will resume when angling is complete.
L
(Angle
Left)
With wings in a straight line, move the control lever straight to the left to
move both wings to the angle left position to cast snow to the driver's left
side. The left wing retracts while the right wing extends. Function times
out after 3.0 seconds.
R
(Angle
Right)
With wings in a straight line, move the control lever straight to the right to
move both wings to the angle right position to cast snow to the driver's
right side. The right wing retracts while the left wing extends. Function
times out after 3.0 seconds.

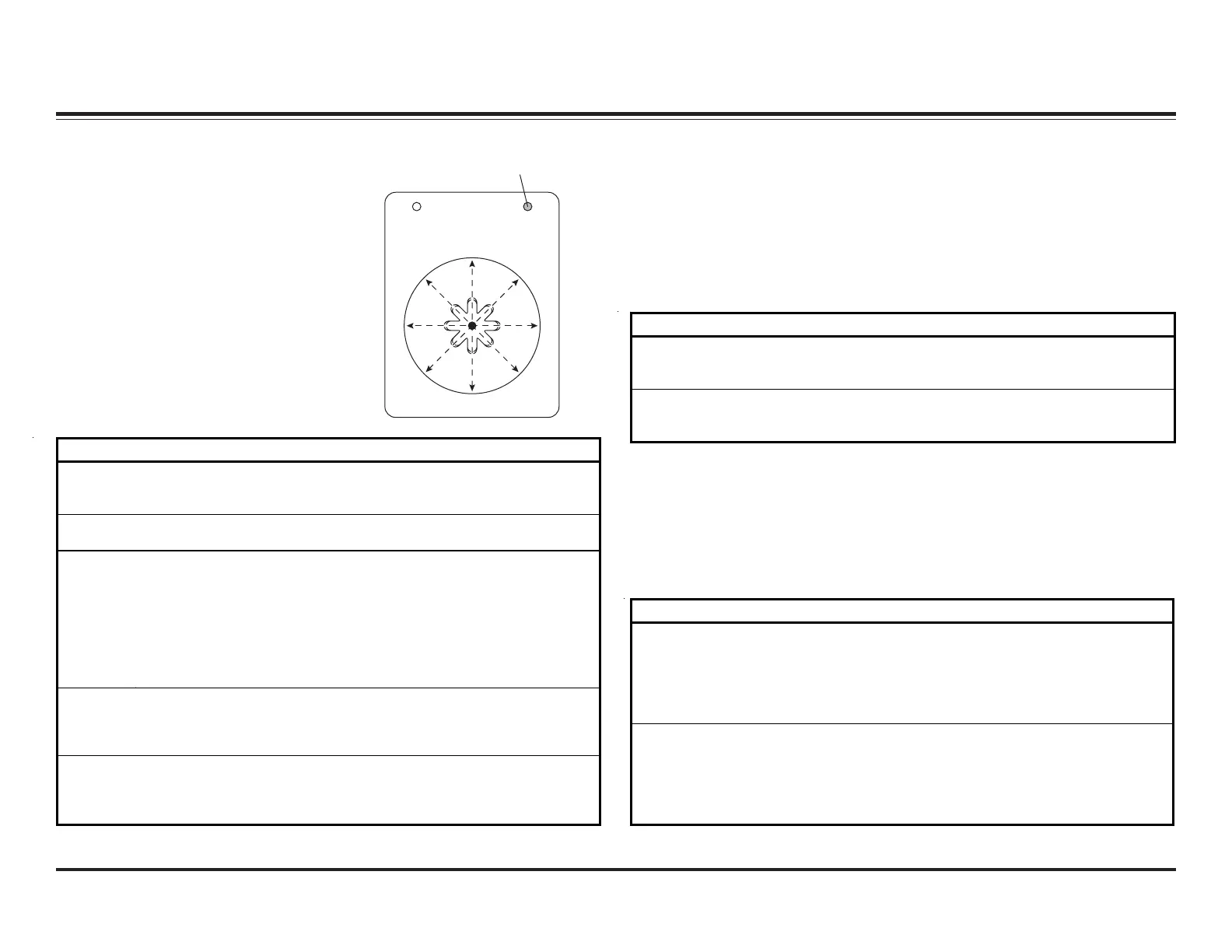

LOWER
RAISE
VEE
FLOATON / OFF
WINGWING
SCOOP
R
L
Float Light
(green)
Control Functions
Raise, Lower, Float, Angle
Movement of the control lever in
straight lines up and down or from
side to side on the control body will
result in the blade movements as
described in the following table:
SYSTEM OVERVIEW – CONTROLS
Excerpts taken from UltraMount
®
Owner's Manual (Lit. No. 44230, Rev. 06).
Scoop/Retract (Vee) Blade Position
Moving the control lever from the
center position toward the word
SCOOP or RETRACT (VEE) on the
face of the control body will cause
both wings to move at the same time
into the blade positions described in
the following table:
Wing Positions
Move the control lever from the
center position toward the word,
WING, on either side of the face of
the control body. The use of either of
these slots will allow movement of
either wing independently of the
other as described in the following
table:
To Next Page
