5. Assembly, adjustment, and disassembly
13.

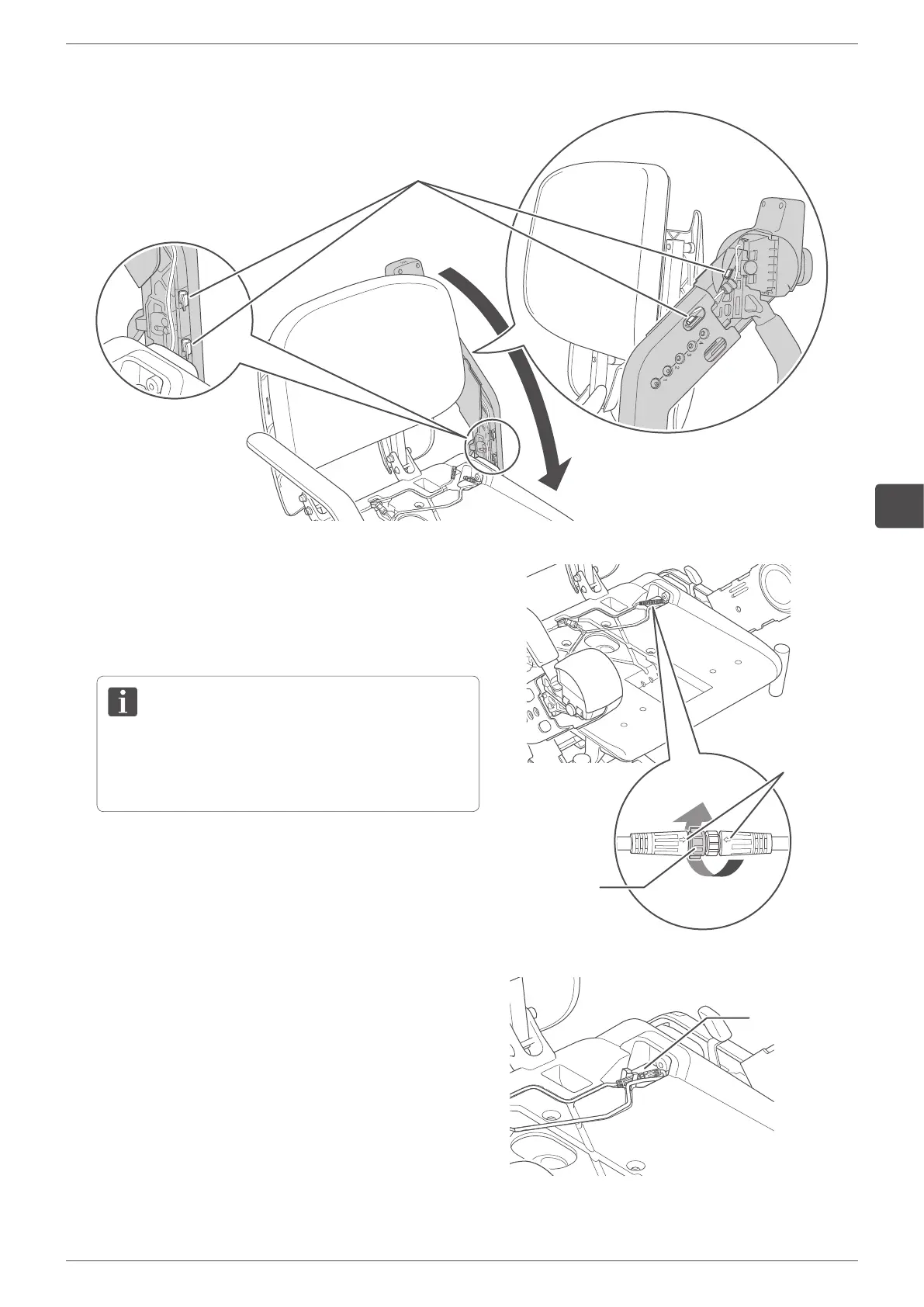

Fix the cable in the cable clips (four places), then lower
the arm.
Clips
14.
Connect the connector of the cable.
Insert the connector with the arrows of the connector
aligned, then rotate the base lock of the connector
clockwise to lock it.
When connecting the connector, hold and rotate the
base lock of the connector. Do not rotate other parts
of the connector.
Base lock of
the connector
Arrows of the
connector
15.
Arrange the connector and cables in the cable-
threading hole.
Cable-threading
hole
