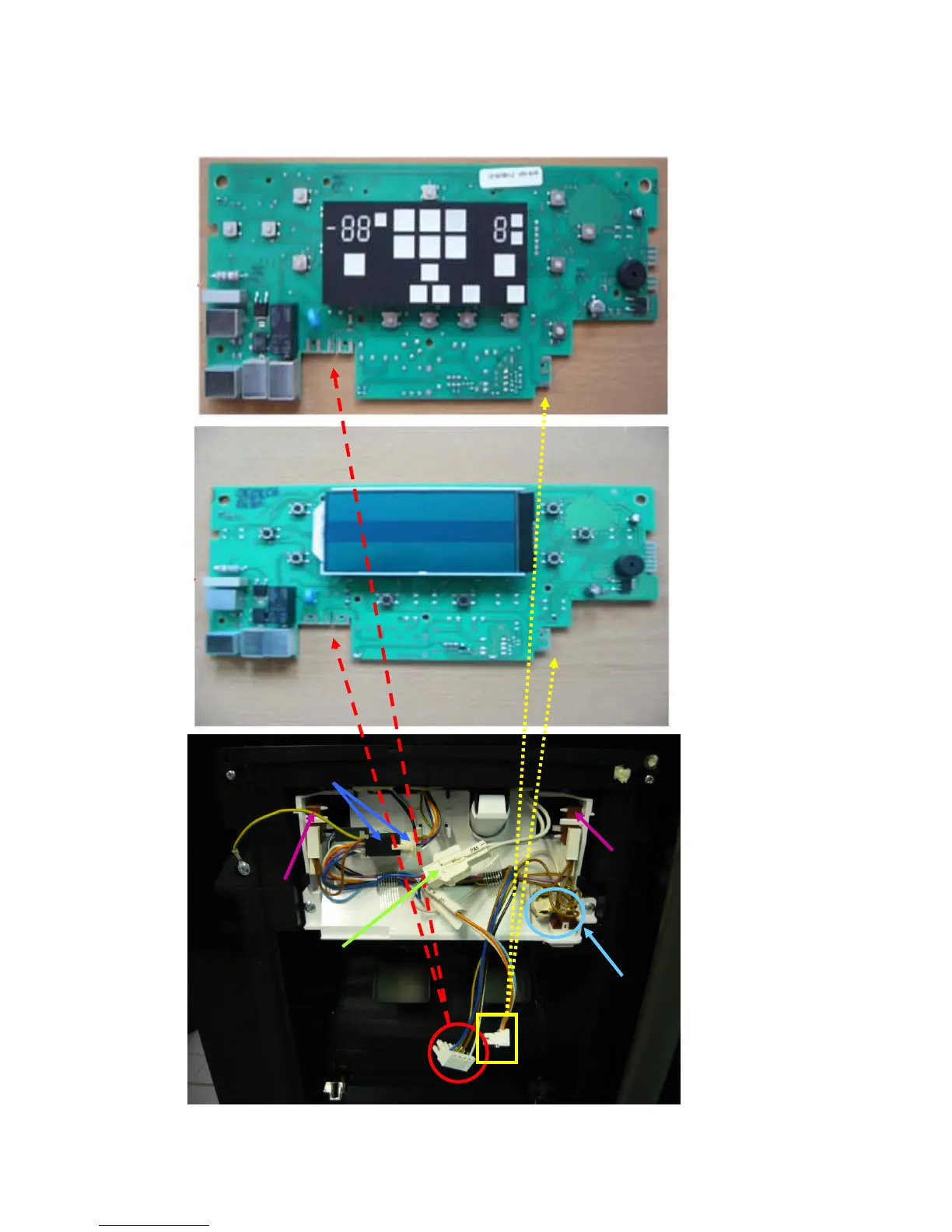

Other electronic boards connections:
MAIN POWER
connector
with 3 pin
MAIN POWER
connector
with 5 pin
Light: lampholder +
switch
Heater: when
available 2 heaters
(door, niche)
Switch: water
paddle
paddle
Connection with
appliance wiring
