Best position for Lokring connectors on R134a and R600a version

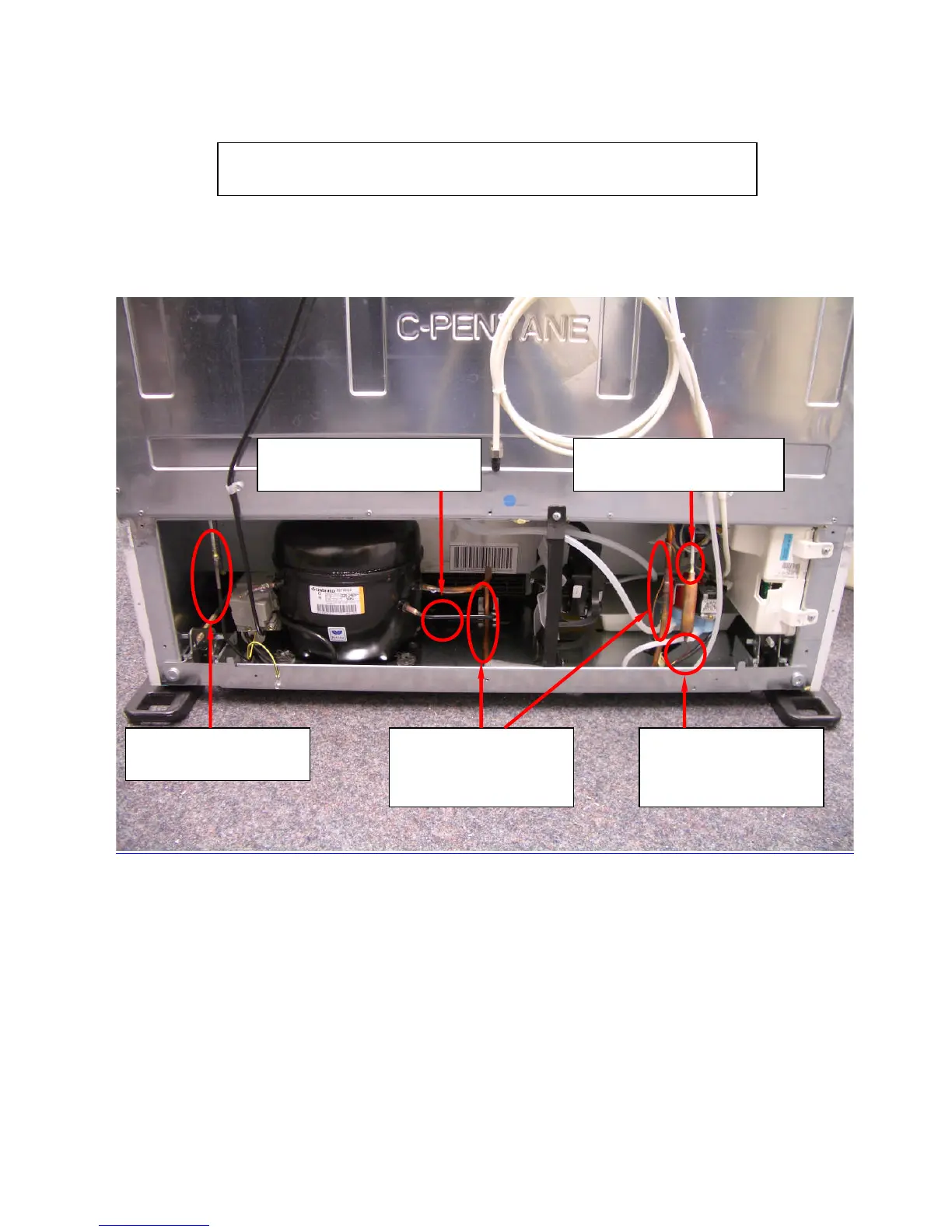

By opening of the cooling cycle, the picture below show you the best
positions to make a new connection for the Lokring connectors.
High pressure ->
compressor to condenser
Condenser outcoming
to the filter dryer.
Suction pressure ->
outcoming evaporator
to the compressor
Incoming to the filter dryer
Low pressure ->
capillary tube to the
evaporator incoming
