CAUTION:
If optics are blocked during normal operation, you will not get any feed-back from the
diagnostic LED. So, to check for bad optics, the E-module (Ice-Maker) must be put through a
power up.

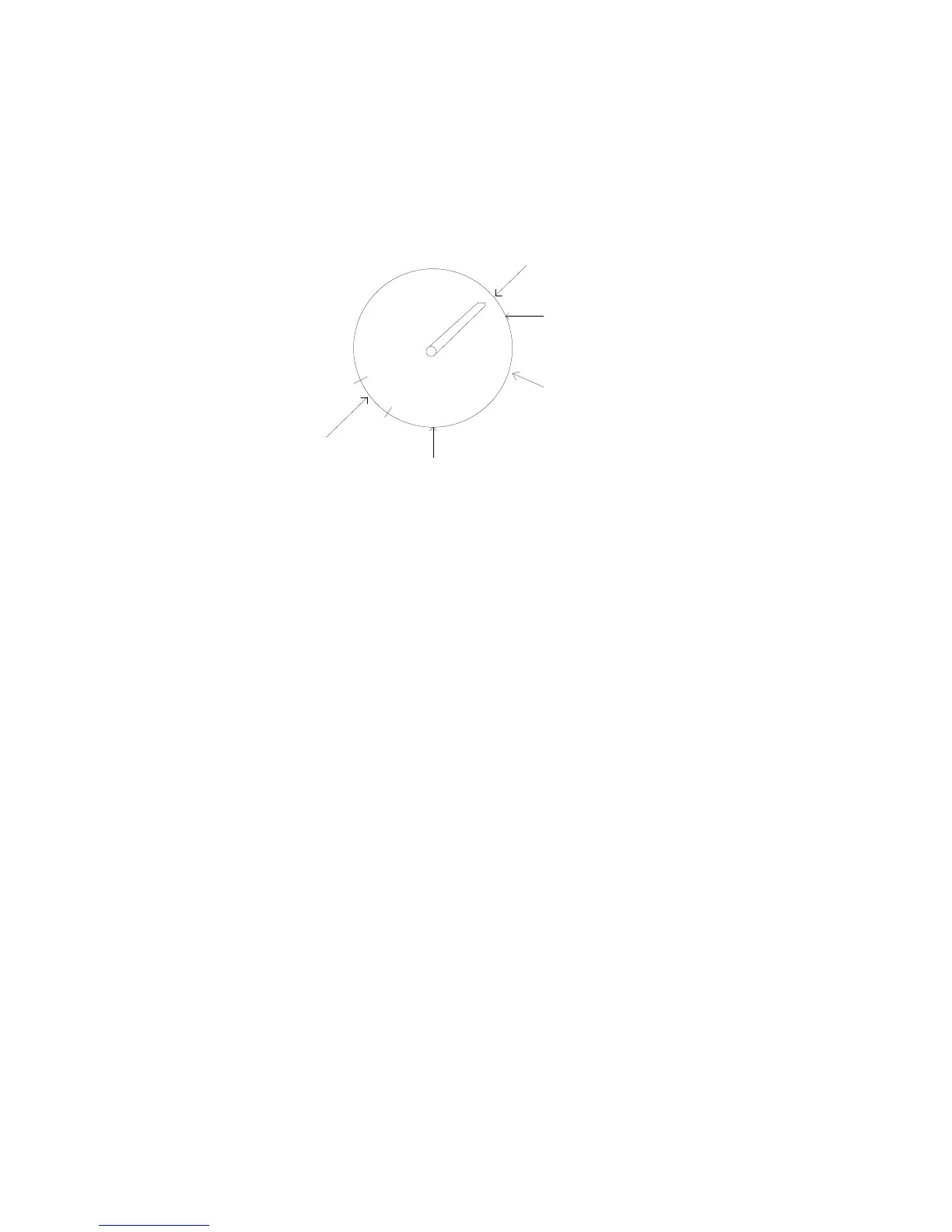

Ejector blade Park/Stop
Position (about 2 o'clock)
Start position Bimetal Closes
(Motor ON, Heater ON)
6 o'clock position
Water valve energized 7,5 seconds
140cc Fill (following every harvest)
Ejector Stalls On Ice
Motor ON, Heater On
(1/2 Minute To 5 Minutes
About 4 o'clock Position)
Thermostat Opens In This
Range Of Operation
Then Heater goes OFF
E-module (Ice-Maker)
