5. Commissioning, operation
14147933.02 10/2018 EN/DE
WIKA operating instructions model T16
14

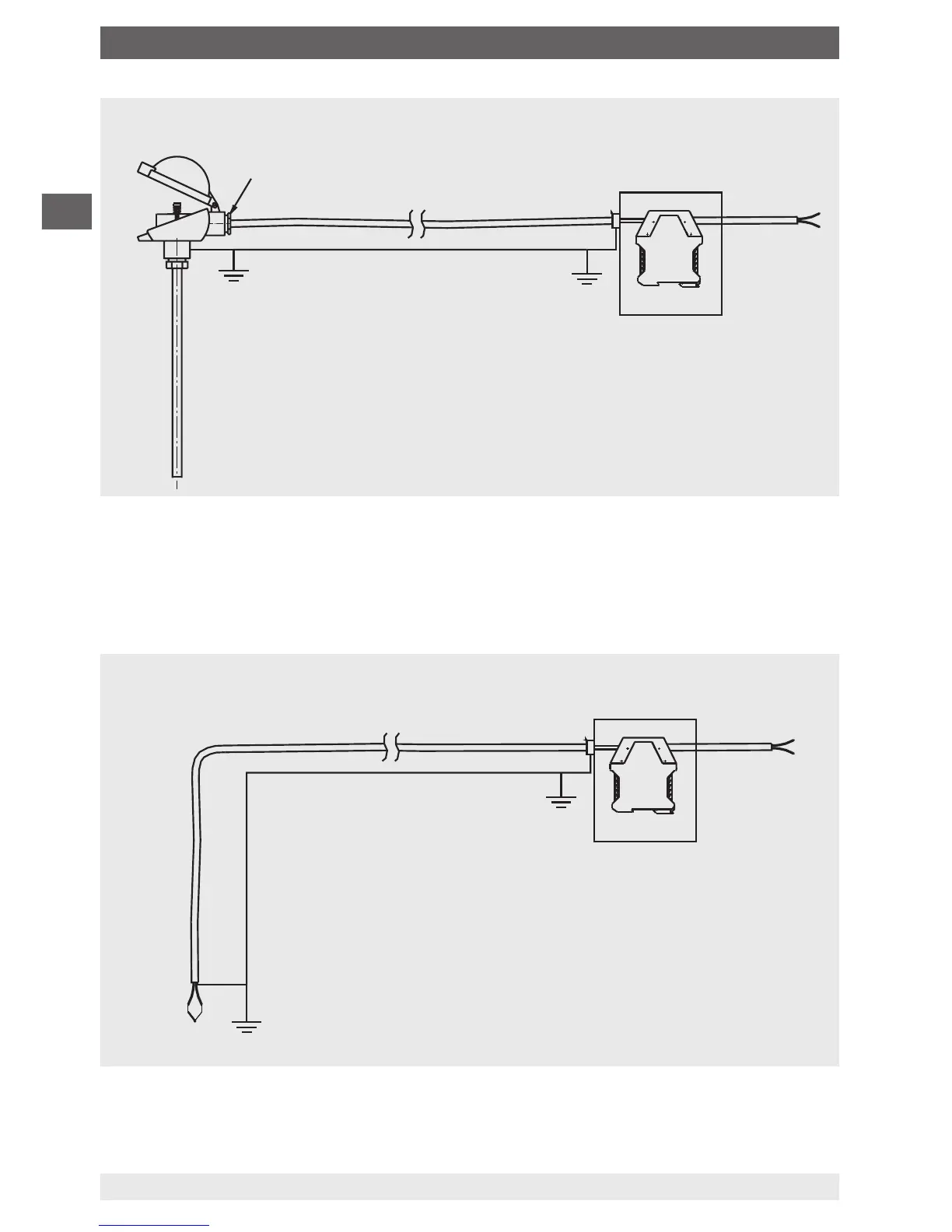

In applications with higher EMC requirements, using a shielded cable between the
transmitter and the sensor is recommended, especially in connection with long leads to the
sensor. For an exemplary illustration, see drawing.
With the rail mounting version (T16.R) and cable lengths greater than 30 m, shielded cable
must be used.
grounded
grounded shield
Sensor wire
Equipotential bonding
Field case/
Control cabinet
Sensor
T16
Connection head BSZ
grounded
grounded shield
Thermowell
with sensor
grounded
Sensor wire
Equipotential bonding
T16
Field case/
Control cabinet
