5. Commissioning, operation
14147933.02 10/2018 EN/DE
WIKA operating instructions model T16
18
5.3.2 Sensors

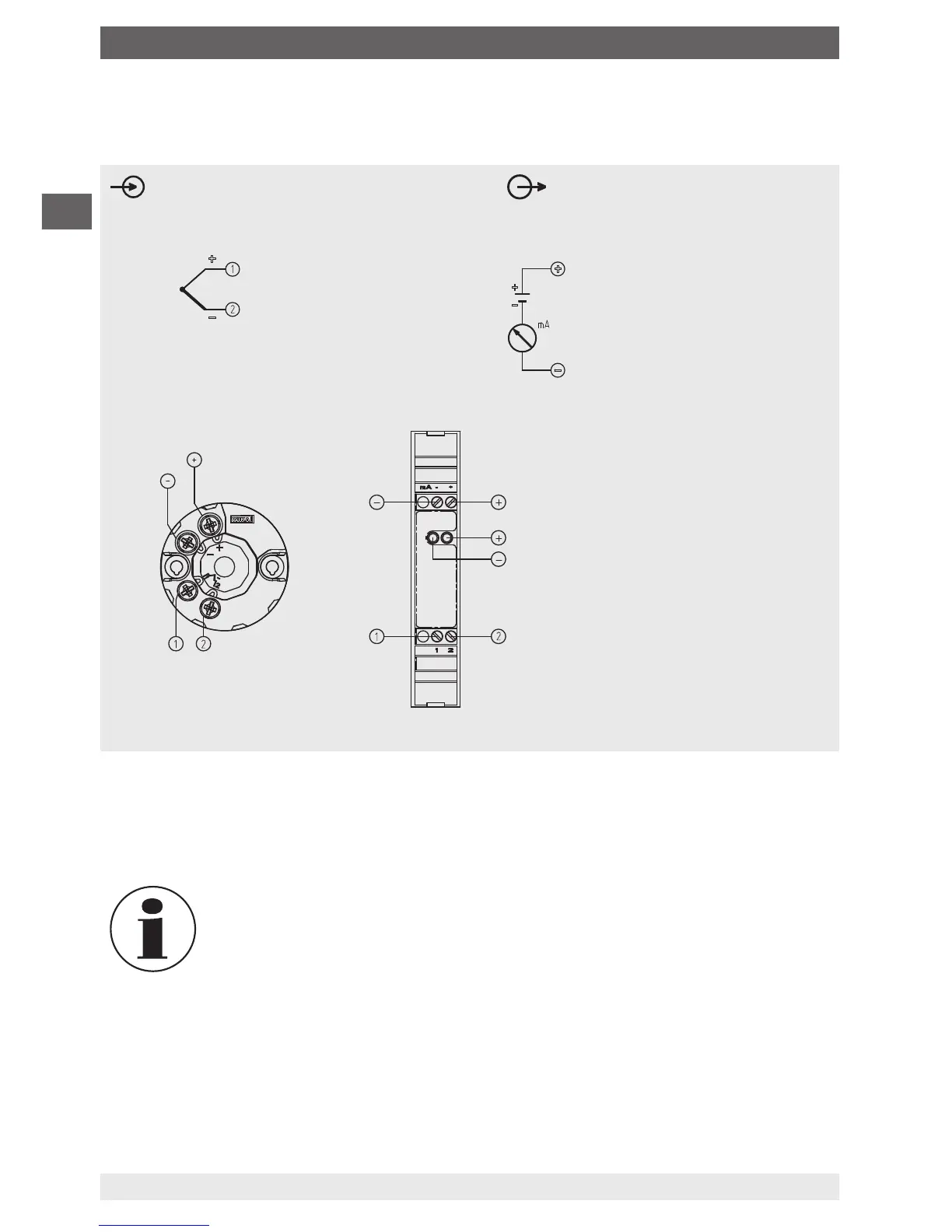

Designation of connection terminals
Thermocouples (TC)
It is possible to connect a thermocouple in a 2-wire connection.
The T16 transmitter always uses the internal cold junction.
For the safety-relevant maximum values for the connection of the voltage
supply and the sensors, see chapter 11 “Specifications”.
Thermocouples
Input
Output
4 ... 20 mA loop
T16.H T16.R
Connection of the
PU-548 programming unit
14151201.01
