2. Design and function
14147933.02 10/2018 EN/DE
WIKA operating instructions model T16
6
2. Design and function
2.1 Description
The model T16 temperature transmitter is used for converting a thermoelectric voltage into
a proportional current signal (4 ... 20 mA). Thus the sensors are permanently monitored for
their fault-free operation.
The temperature transmitter meets the requirements for:
■
Explosion protection (depending on the version)
■
Electromagnetic compatibility in accordance with NAMUR recommendation NE21
■
Signalling at the analogue output in accordance with NAMUR recommendation NE43
■
Sensor break signalling in accordance with NAMUR recommendation NE89 (corrosion
monitoring sensor connection)
2.2 Dimensions in mm
■

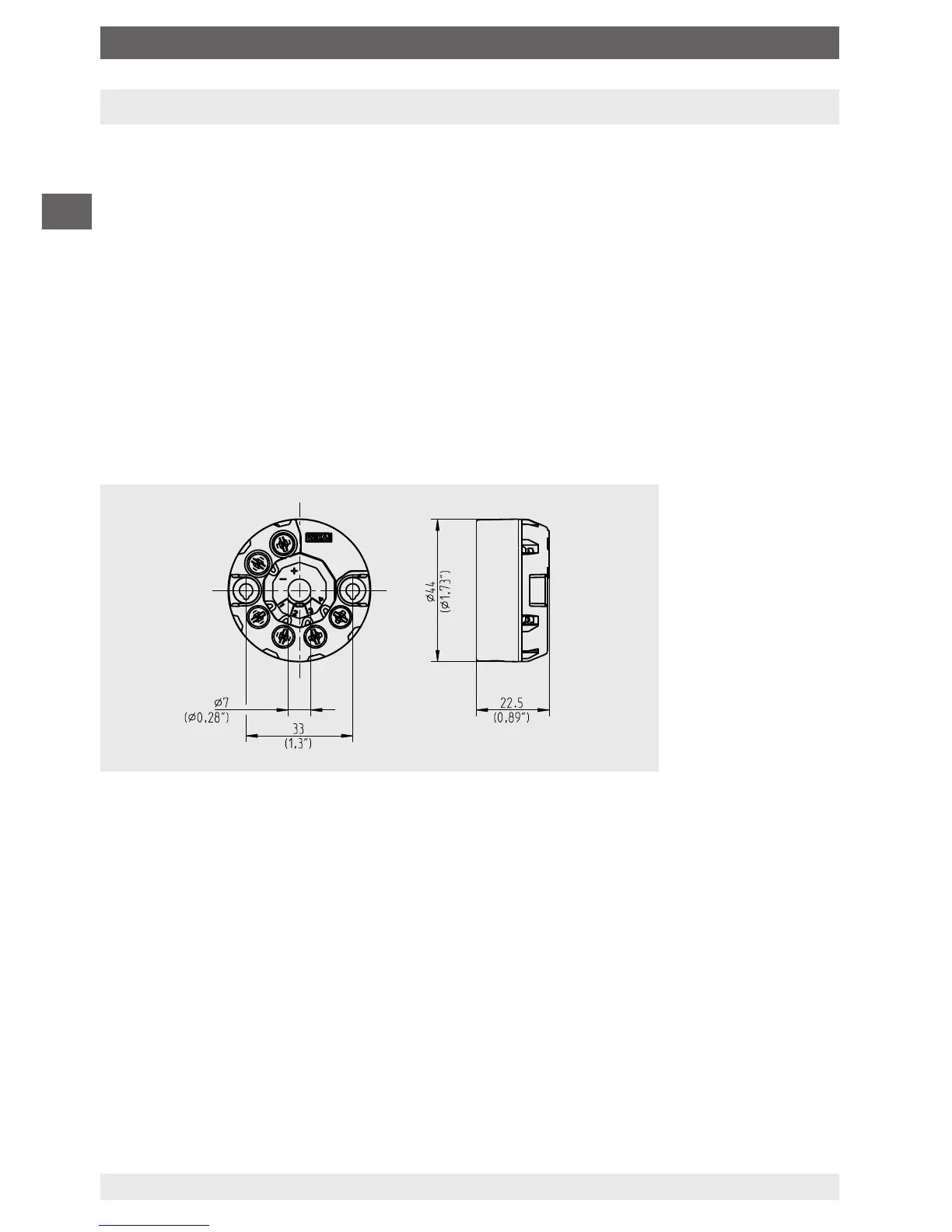

Head mounting version, model T16.H
14263238.01
