13
5. Commissioning, operation
Personnel: Skilled electrical personnel
Tools: Screwdriver (see chapter 5.3 “Electrical connection”)
DANGER!
Danger to life from explosion!
Through working in flammable atmospheres, there is a risk of explosion
which can cause death.
▶
Only carry out set-up work in non-hazardous environments!
▶
In hazardous areas, only use temperature transmitters that are approved
for those hazardous areas. Observe the approvals on the product label.
5.1 Grounding
WARNING!
Prevention of electrostatic discharge
When working during a running process operation, measures to prevent
electrostatic discharge from the connection terminals should be taken, as a
discharge could lead to temporary corruption of the measured value.
▶
Only use model T16.H temperature transmitters in grounded thermometer
heads!
▶

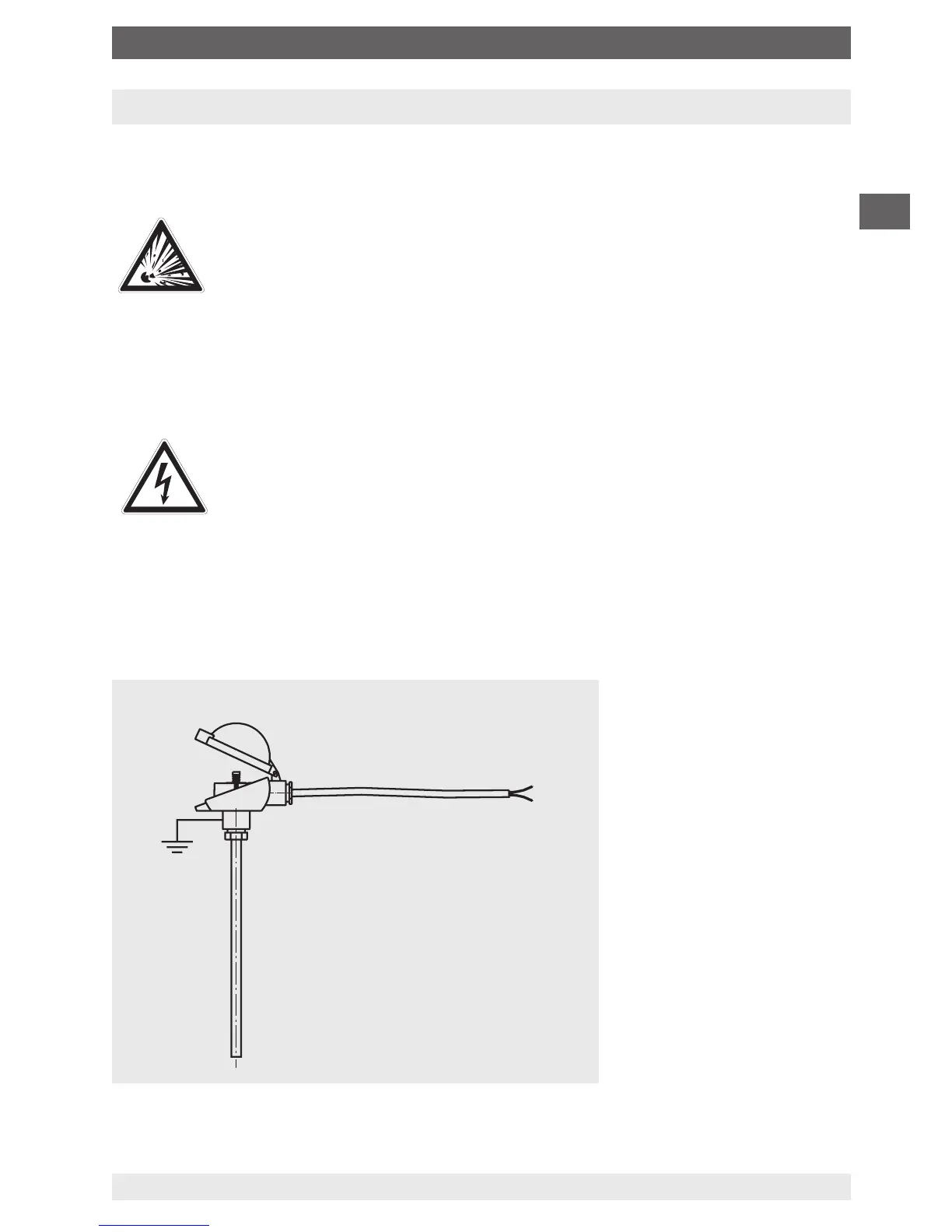

Connection of a thermocouple (e.g. type K) to the T16.R with a shielded
cable. The shield must be electrically connected to the case of the
grounded thermometer.
Connection head BSZ
grounded
Loop cable
Only use the model T16
temperature transmitter in
grounded thermometers!
