WIKA T16 - Beschilderung, Sicherheitskennzeichnungen

DE
3. Sicherheit
T16.H-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3 -150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 1 G Ex ia IIC T6...T4 Ga
II 1 D Ex ia IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
T16.R-AIZZZ
S# 1106FIDB159
V 1.0.0
DC 8 ... 30 V
TAG-NR.
Pt100/3 -150 ... +180 °C
Sensor
mA-Loop
T16.R-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3
-150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 2(1)G Ex ia [ia Ga] IIC T6...T4 Ga
II 2(1)D Ex ia [ia Da] IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
1
2
3
4
2
3
4
2
3
Resistance sensor
T16.H-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3 -150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 1 G Ex ia IIC T6...T4 Ga
II 1 D Ex ia IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
T16.R-AIZZZ
S# 1106FIDB159
V 1.0.0
DC 8 ... 30 V
TAG-NR.
Pt100/3 -150 ... +180 °C
Sensor
mA-Loop
T16.R-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3
-150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 2(1)G Ex ia [ia Ga] IIC T6...T4 Ga
II 2(1)D Ex ia [ia Da] IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
1
2
3
4
2
3
4
2
3
Resistance sensor
T16.H-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3 -150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 1 G Ex ia IIC T6...T4 Ga
II 1 D Ex ia IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
T16.R-AIZZZ
S# 1106FIDB159
V 1.0.0
DC 8 ... 30 V
TAG-NR.
Pt100/3 -150 ... +180 °C
Sensor
mA-Loop
T16.R-AIZZZ
0158
S# 1106FIDB159
V 1.0.0 2015-12
DC 8 ... 30 V
TAG-NR.
WIKA A. Wiegand SE & Co. KG D-63911 Klingenberg
Pt100/3
-150 ... +180 °C
Made in Germany
BVS 15 ATEX E 139 X
IECEx BVS 15.0112X
II 2(1)G Ex ia [ia Ga] IIC T6...T4 Ga
II 2(1)D Ex ia [ia Da] IIIC T135 °C Da
Tamb T4/T5/T6: -40 ... +85/70/55 °C
1
2
3
4
2
3
4
2
3
Resistance sensor
WIKA Betriebsanleitung Typ T16
44
14147933.02 10/2018 EN/DE

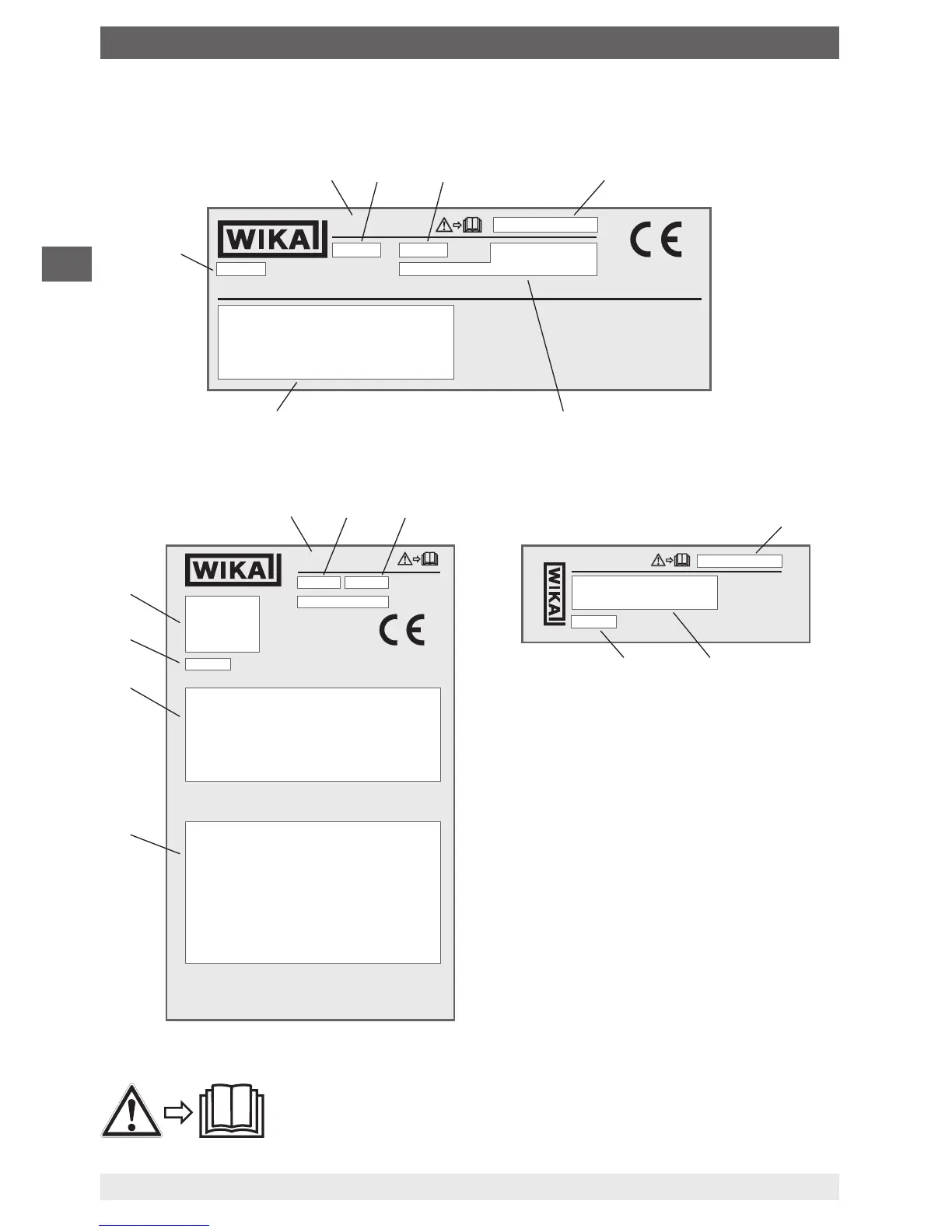

3.5 Beschilderung, Sicherheitskennzeichnungen
■
Kopfversion, Typ T16.H
■
Schienenversion, Typ T16.R
Vor Montage und Inbetriebnahme des Gerätes unbedingt die
Betriebsanleitung lesen!

Typ

Firmware

Herstellungsdatum (Jahr-Monat)

Seriennummer

Sensorangaben (Typ, Schaltungsart,
Hilfsenergie, Messbereich)

Zulassungsrelevante Daten

TAG-Nr.

Anschlussbelegung
 













