Wilden T8 - SECTION 4 - DIMENSIONAL DRAWINGS A. T8 PLASTIC Air-Controlled; A8 PLASTIC Accu-Flo

4
WILDEN PUMP & ENGINEERING, LLC WIL-10230-E-02

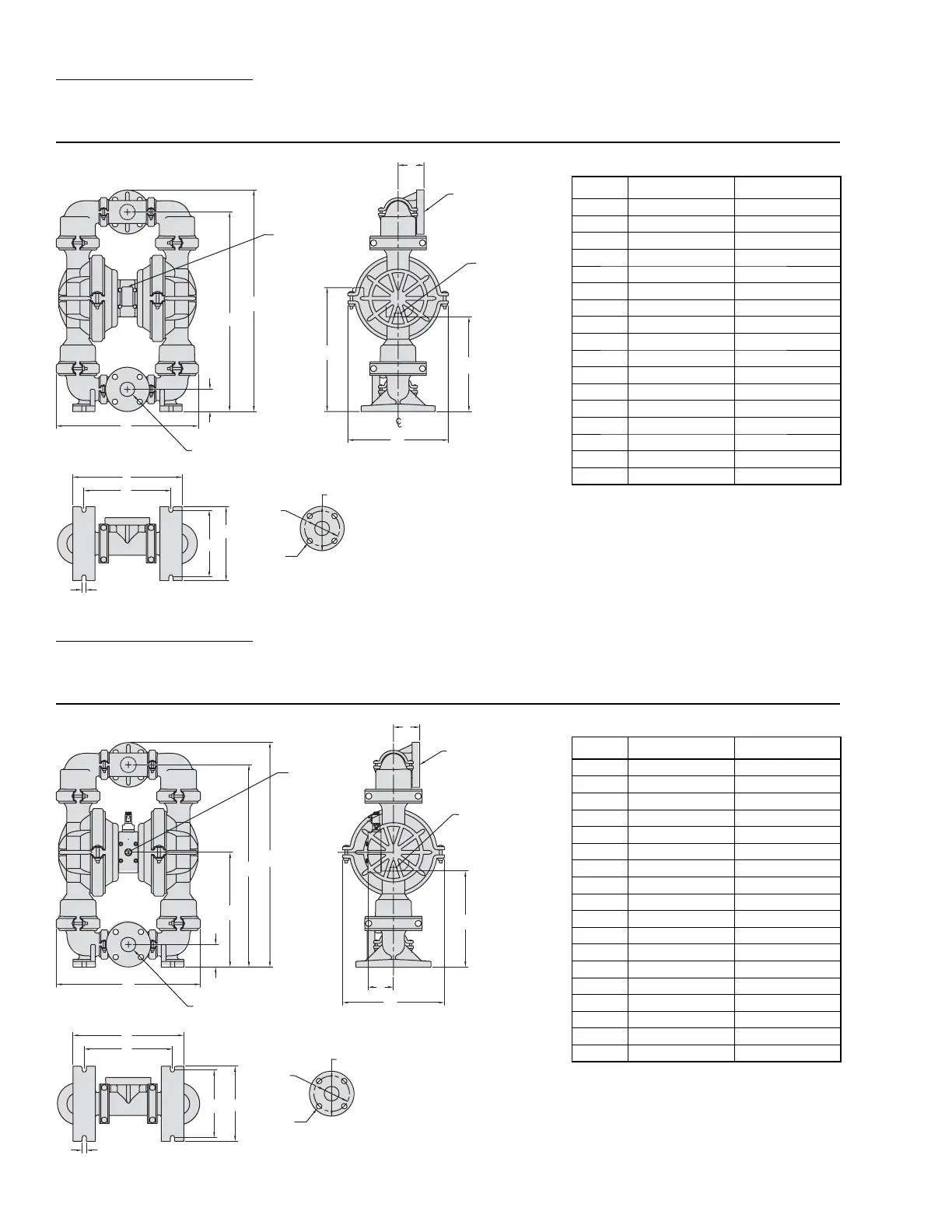

SECTION 4A
DIMENSIONAL DRAWING
T8 PLASTIC
D
C
B
19 mm (3/4")
FNPT
AIR INLET
19 mm (3/4")
FNPT
AIR EXHAUST
A
51 mm (2")
DIN (ANSI)
LIQUID INLET
51 mm (2")
DIN (ANSI)
LIQUID
DISCHARGE
P
R
S
J
K
M
L
N
G
F
H
E
FLANGE
SECTION 4B
DIMENSIONAL DRAWING
A8 PLASTIC ACCU-FLO™
19 mm (3/4")
FNPT
AIR INLET
19 mm (3/4")
FNPT
AIR EXHAUST
51 mm (2")
DIN (ANSI)
LIQUID INLET
51 mm (2")
DIN (ANSI)
LIQUID
DISCHARGE
FLANGE
E
D
C
B
A
K
L
P
M
N
H
J
S
R
T
G
F
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 490 19.3
B 76 3.0
C 693 27.3
D 770 30.3
E 447 17.6
F 89 3.5
G 345 13.6
H 333 13.1
J 386 15.2
K 307 12.1
L 229 9.0
M 254 10.0
N 15 0.6
DIN (mm) ANSI (inch)
P 125 DIA. 4.8 DIA.
R 165 DIA. 6.0 DIA.
S 18 DIA. 0.8 DIA.
DIMENSIONS
ITEM METRIC (mm) STANDARD (inch)
A 490 19.3
B 76 3.0
C 409 16.1
D 693 27.3
E 770 30.3
F 89 3.5
G 345 13.6
H 333 13.1
J 86 3.4
K 386 15.2
L 307 12.1
M 229 9.0
N 254 10.0
P 15 0.6
DIN (mm) ANSI (inch)
R 125 DIA. 4.8 DIA.
S 165 DIA. 6.0 DIA.
T 18 DIA. 0.8 DIA.
